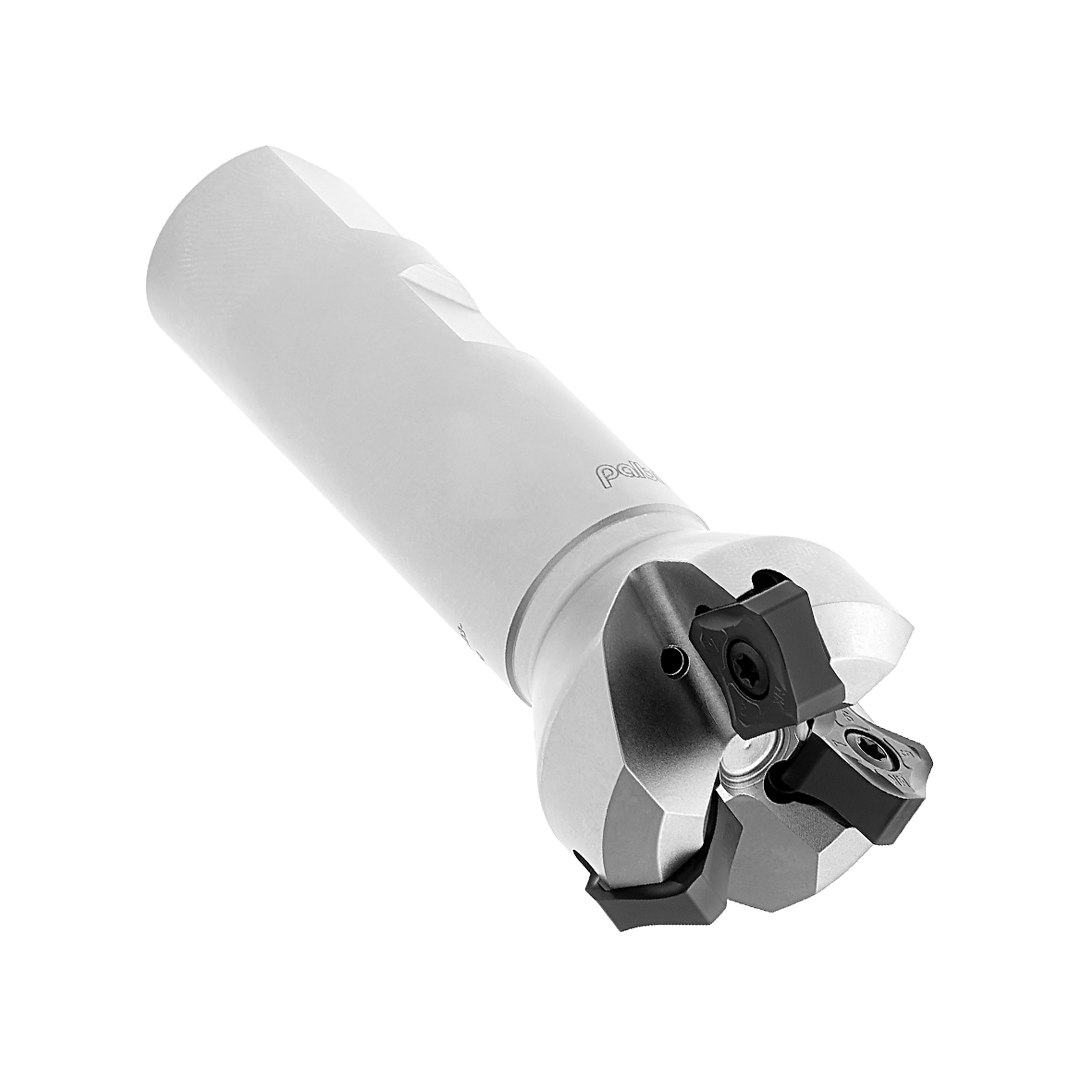

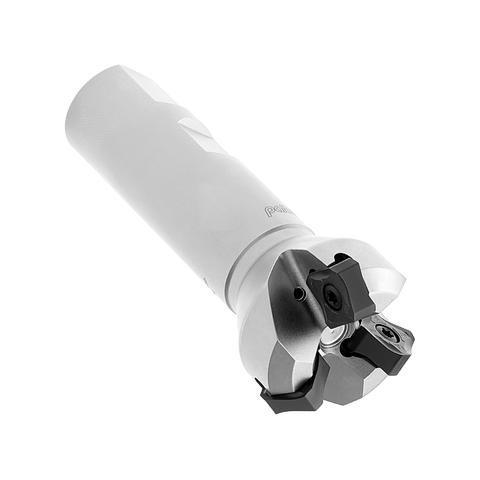

Palbit Weldon Shank Holder - For SN1206 ON0505 Inserts - 40mm Cutter Diameter - 181118100

PAL-181118100

Availability: 5 days Estimated lead time, subject to availability

Engineered for precise grooving and parting, Palbit Weldon Shank Holders designed for SF1004 and OF0403 inserts offer excellent rigidity and secure insert retention. These holders deliver consis... Read more

Specification Value
Insert Size & Shape SN1206 ON0505
Depth of Cut Maximum (APMX) 3.50 6.00
Cutting Item Count (CICT) 4
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Weldon Shank
Contact Surface Machine Side (DCSFMS) 32
Tool Cutting Edge Angle (KAPR) 45
Cutting Diameter (DC) 40
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 47.6
Cutting Diameter (DC2) 37.1
Maximum Cutting Diameter 2(DCX2) 52
Functional Length (LF) 110
Axial Rake Angel (GAMP) -6
Rdial Rake Angle (GAMF) -9

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Engineered for precise grooving and parting, Palbit Weldon Shank Holders designed for SF1004 and OF0403 inserts offer excellent rigidity and secure insert retention. These holders deliver consistent cutting accuracy, efficient chip control, and extended tool life, making them ideal for demanding CNC machining operations. Trusted by engineers and machinists for reliable performance and superior surface finishes in production environments.
