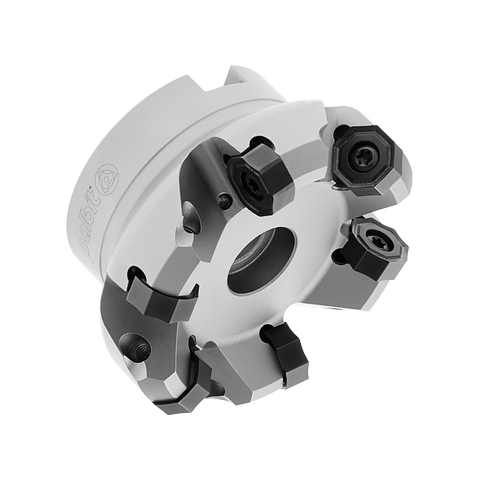

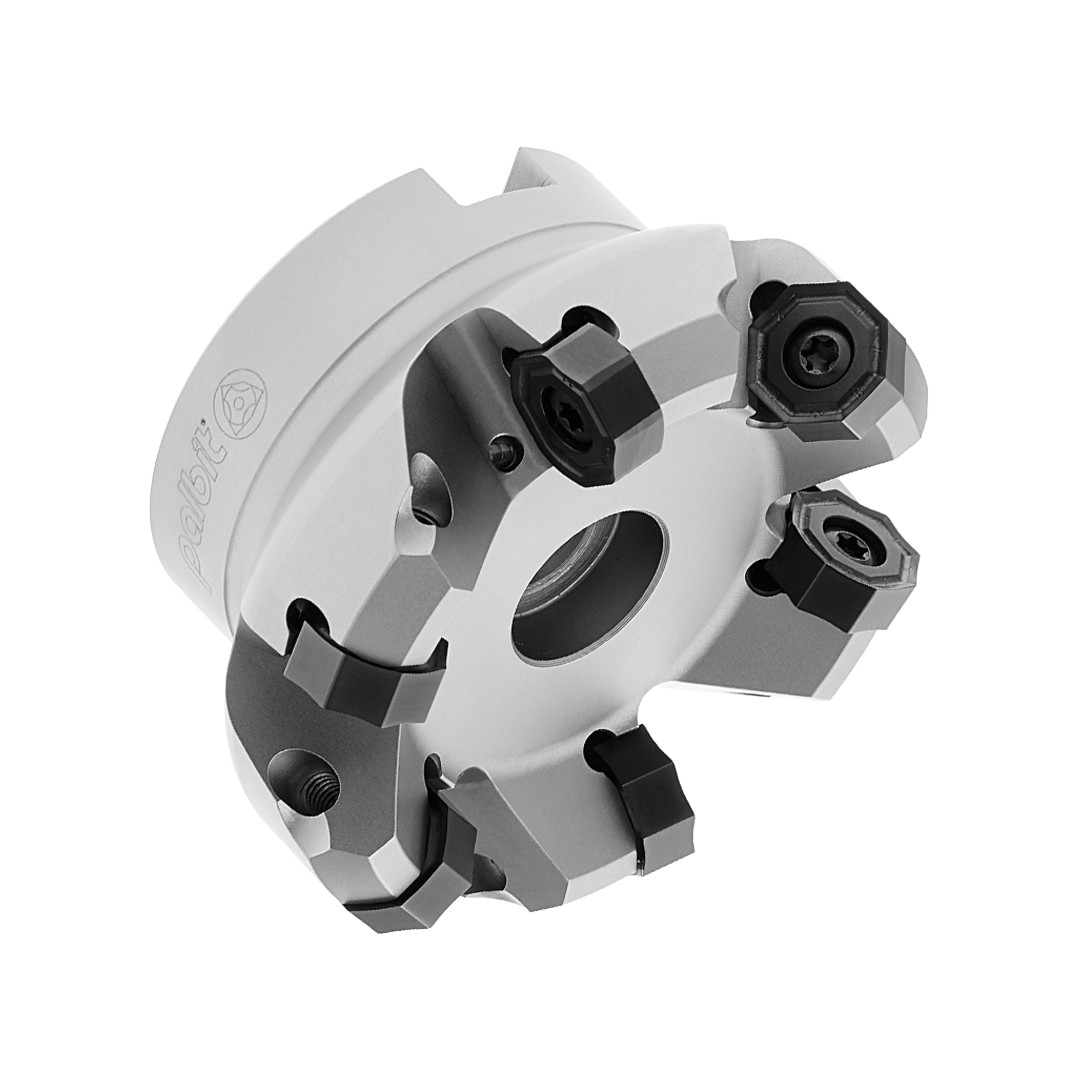

Palbit Arbor Mounting Holder - For SN1206 ON0505 Inserts - 125mm Cutter Diameter - 181121000
| Insert Size & Shape | SN1206 ON0505 |
| Depth of Cut Maximum (APMX) | 3.50 6.00 |
| Cutting Item Count (CICT) | 10 |
| Connection Diameter (DCONMS) | 40 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 90 |
Learn more about Klarna
The Palbit Arbor Mounting Holder is a precision tool holder designed to accept SN1206 and ON0505 inserts for reliable grooving and parting. With a 125mm cutter diameter, it provides exceptional rigidity and precise cutting performance, helping CNC engineers, machinists, and shop floors achieve repeatable results in demanding production environments.
- Rigid, secure insert retention: Holds SN1206 and ON0505 inserts firmly in place for minimal movement and chatter, delivering consistent cuts and fewer redoes.
- Versatile grooving and parting compatibility: Optimized for a range of operations with SN1206/ON0505 inserts, enabling quick setup and flexible job changeovers without swapping tools.
- Durable, precision-engineered construction: Built to withstand heavy use in CNC environments, delivering long tool life and dependable performance through tight tolerances and robust materials.
By ensuring precise alignment and secure seating, the holder improves workflow, reduces downtime, and helps you achieve high-quality finishes across repetitive production runs.
| Insert Size & Shape | SN1206 ON0505 |
| Depth of Cut Maximum (APMX) | 3.50 6.00 |
| Cutting Item Count (CICT) | 10 |
| Connection Diameter (DCONMS) | 40 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 90 |
| Tool Cutting Edge Angle (KAPR) | 45 |
| Cutting Diameter (DC) | 125 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 132.6 |
| Cutting Diameter (DC2) | 122.1 |
| Maximum Cutting Diameter 2(DCX2) | 137 |
| Functional Length (LF) | 63 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 90845 - Arbor Mounting
View full collection →You are viewing PAL-181121000. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181117800 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 80 | 50 | £354.17 | 5 days | |
| PAL-181117700 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 80 | 50 | £262.80 | 5 days | |
| PAL-181117600 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 63 | 40 | £326.31 | 5 days | |
| PAL-181117500 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 63 | 40 | £230.88 | 5 days | |
| PAL-181111400 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 50 | 40 | £183.07 | 5 days | |
| PAL-181121300 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 250 | 63 | £1,538.46 | 5 days | |
| PAL-181121200 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 200 | 63 | £1,041.82 | 5 days | |
| PAL-181121100 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 160 | 63 | £540.75 | 5 days | |
| PAL-181121000 Viewing | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 125 | 63 | £354.17 | 5 days | |
| PAL-181120900 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 100 | 50 | £540.75 | 5 days | |
| PAL-181117900 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 100 | 50 | £326.31 | 5 days |
