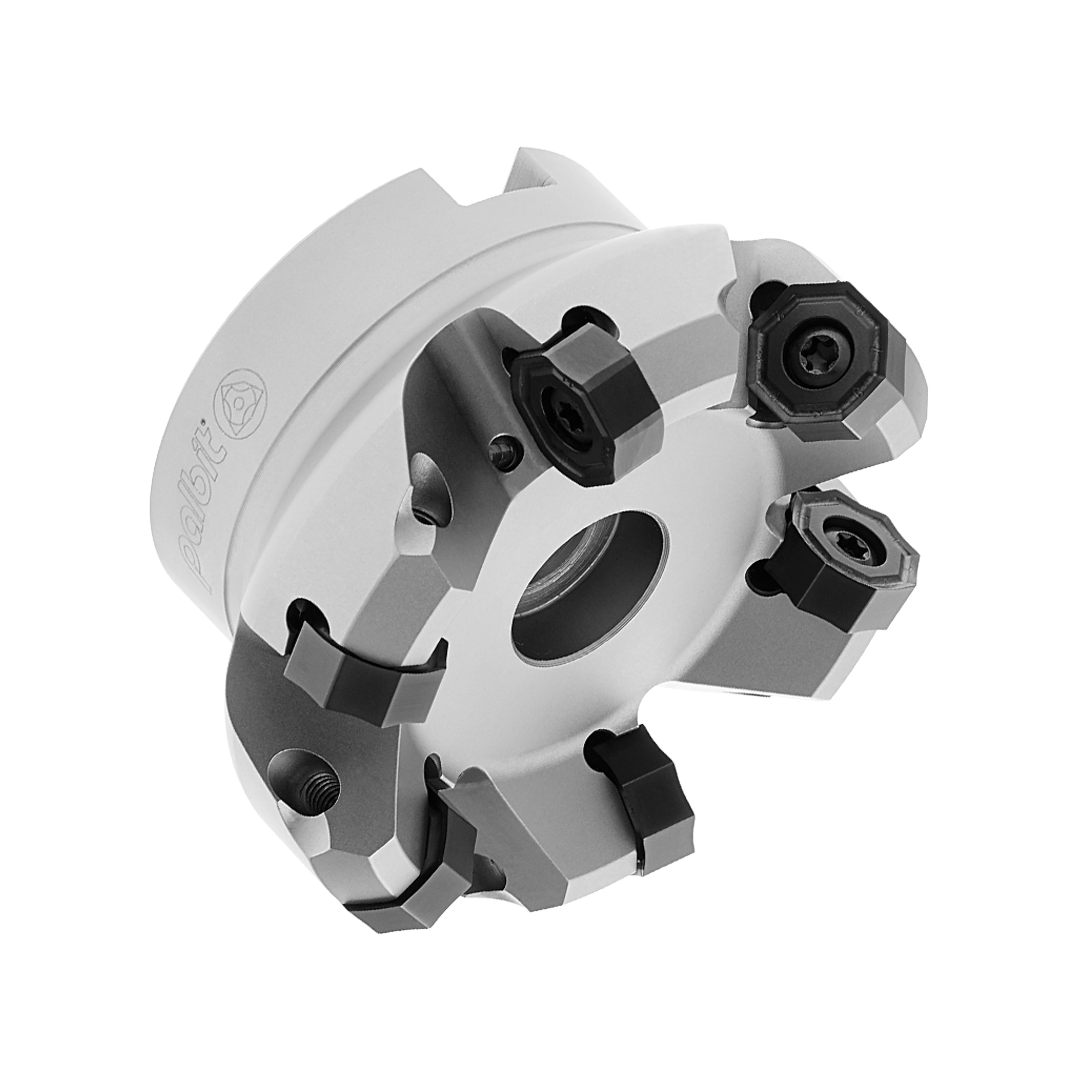

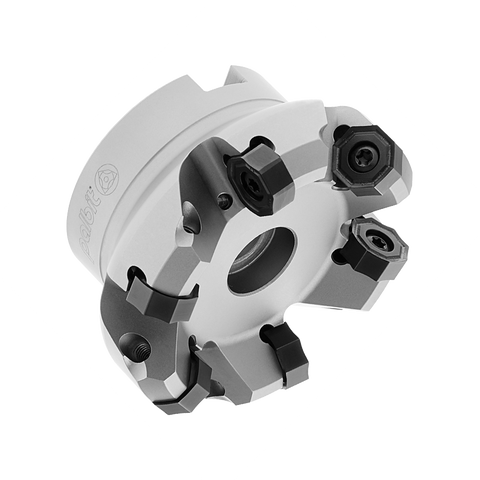

Palbit Arbor Mounting Holder - For SN1206 ON0505 Inserts - 100mm Cutter Diameter - 181120900
| Insert Size & Shape | SN1206 ON0505 |
| Depth of Cut Maximum (APMX) | 3.50 6.00 |
| Cutting Item Count (CICT) | 12 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
Learn more about Klarna
The Palbit Arbor Mounting Holder is built for grooving and parting operations, securely holding SN1206 and ON0505 inserts to ensure clean, precise cuts. Its robust design is ideal for CNC engineers and machinists who need dependable performance in demanding production environments.
- Rigid, secure clamp design: Keeps SN1206 and ON0505 inserts firmly in place during cutting, reducing runout and delivering consistent, high-precision results.
- SN1206 and ON0505 compatibility: Designed to accept these inserts for quick, reliable tool changes and reduced downtime in busy shop floors.
- 100 mm cutter diameter optimization: Tailored geometry and mounting for 100 mm tooling setups that enhance stability and predictability across parting and grooving applications.
This holder enhances workflow by delivering stable insert retention, extending tool life, and enabling repeatable, accurate cuts across production runs. It supports efficient setups, minimizes chatter, and helps CNC operators achieve higher productivity with less rework, making it a trusted choice for precision machining.
| Insert Size & Shape | SN1206 ON0505 |
| Depth of Cut Maximum (APMX) | 3.50 6.00 |
| Cutting Item Count (CICT) | 12 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
| Tool Cutting Edge Angle (KAPR) | 45 |
| Cutting Diameter (DC) | 100 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 107.6 |
| Cutting Diameter (DC2) | 97.1 |
| Maximum Cutting Diameter 2(DCX2) | 112 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 90845 - Arbor Mounting
View full collection →You are viewing PAL-181120900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181117800 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 80 | 50 | £354.17 | 5 days | |
| PAL-181117700 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 80 | 50 | £262.80 | 5 days | |
| PAL-181117600 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 63 | 40 | £326.31 | 5 days | |
| PAL-181117500 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 63 | 40 | £230.88 | 5 days | |
| PAL-181111400 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 50 | 40 | £183.07 | 5 days | |
| PAL-181121300 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 250 | 63 | £1,538.46 | 5 days | |
| PAL-181121200 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 200 | 63 | £1,041.82 | 5 days | |
| PAL-181121100 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 160 | 63 | £540.75 | 5 days | |
| PAL-181121000 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 125 | 63 | £354.17 | 5 days | |
| PAL-181120900 Viewing | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 100 | 50 | £540.75 | 5 days | |
| PAL-181117900 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 100 | 50 | £326.31 | 5 days |
