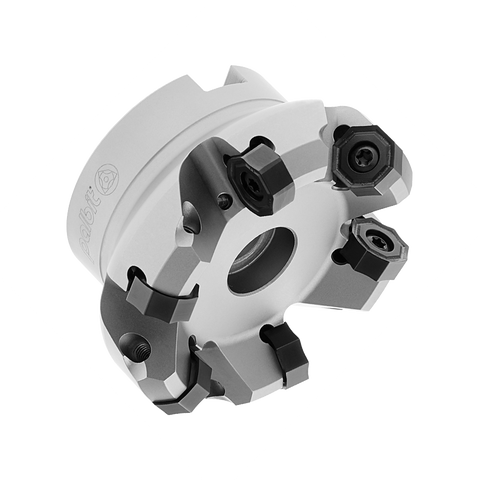

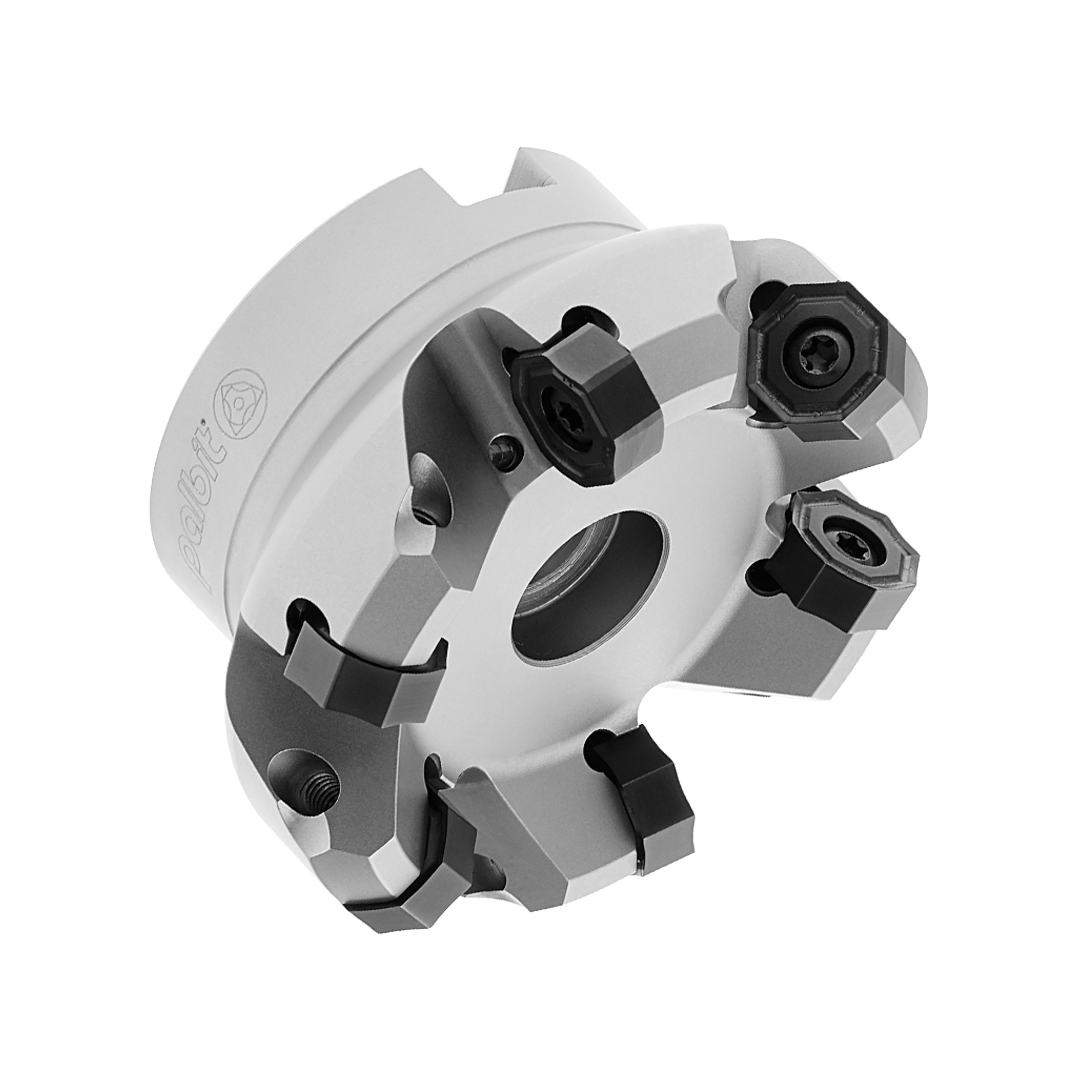

Palbit Arbor Mounting Holder - For SN1206 ON0505 Inserts - 100mm Cutter Diameter - 181117900
| Insert Size & Shape | SN1206 ON0505 |
| Depth of Cut Maximum (APMX) | 3.50 6.00 |
| Cutting Item Count (CICT) | 8 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
Learn more about Klarna
The Palbit Arbor Mounting Holder is designed for versatile grooving and parting applications, securely mounting SN1206 and ON0505 inserts to deliver reliable rigidity and precise cutting performance.
With a 100mm cutter diameter, this holder helps CNC engineers and machinists achieve accurate, repeatable results in demanding production environments, while extending tool life through stable insert engagement.
- Secure Insert Retention: Keeps SN1206/ON0505 inserts firmly in place for stable, repeatable cuts and reduced downtime.
- Rigid, Stable Cutting: Engineered to resist deflection during grooving and parting, delivering clean grooves and tighter tolerances.
- Broad Compatibility and Durability: Designed to work with SN1206 and ON0505 inserts in standard 100mm cutter setups, helping you maximize uptime and tool life.
By providing secure retention and high rigidity, the Palbit Arbor Mounting Holder minimizes tool chatter, reduces rework, and extends insert life, helping you complete more parts per shift with consistent quality. The straightforward setup and compatibility with common SN1206/ON0505 inserts streamline changeovers and improve workflow in CNC milling and turning operations. Built for demanding production, this holder offers reliable performance and confidence in every cut.
| Insert Size & Shape | SN1206 ON0505 |
| Depth of Cut Maximum (APMX) | 3.50 6.00 |
| Cutting Item Count (CICT) | 8 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
| Tool Cutting Edge Angle (KAPR) | 45 |
| Cutting Diameter (DC) | 100 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 107.6 |
| Cutting Diameter (DC2) | 97.1 |
| Maximum Cutting Diameter 2(DCX2) | 112 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 90845 - Arbor Mounting
View full collection →You are viewing PAL-181117900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181117800 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 80 | 50 | £354.17 | 5 days | |
| PAL-181117700 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 80 | 50 | £262.80 | 5 days | |
| PAL-181117600 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 63 | 40 | £326.31 | 5 days | |
| PAL-181117500 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 63 | 40 | £230.88 | 5 days | |
| PAL-181111400 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 50 | 40 | £183.07 | 5 days | |
| PAL-181121300 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 250 | 63 | £1,538.46 | 5 days | |
| PAL-181121200 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 200 | 63 | £1,041.82 | 5 days | |
| PAL-181121100 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 160 | 63 | £540.75 | 5 days | |
| PAL-181121000 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 125 | 63 | £354.17 | 5 days | |
| PAL-181120900 | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 100 | 50 | £540.75 | 5 days | |
| PAL-181117900 Viewing | SN1206 ON0505 | Facing Cutters | Arbor Mounting | 100 | 50 | £326.31 | 5 days |
