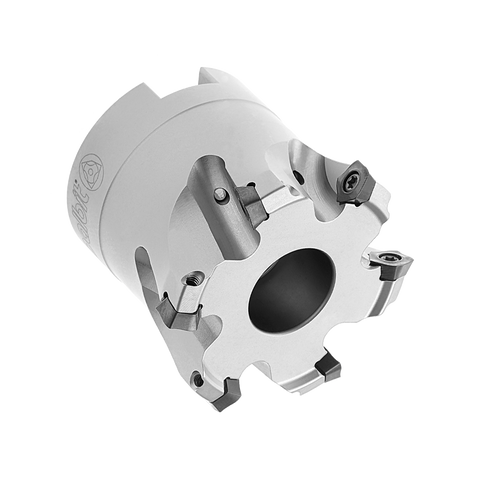

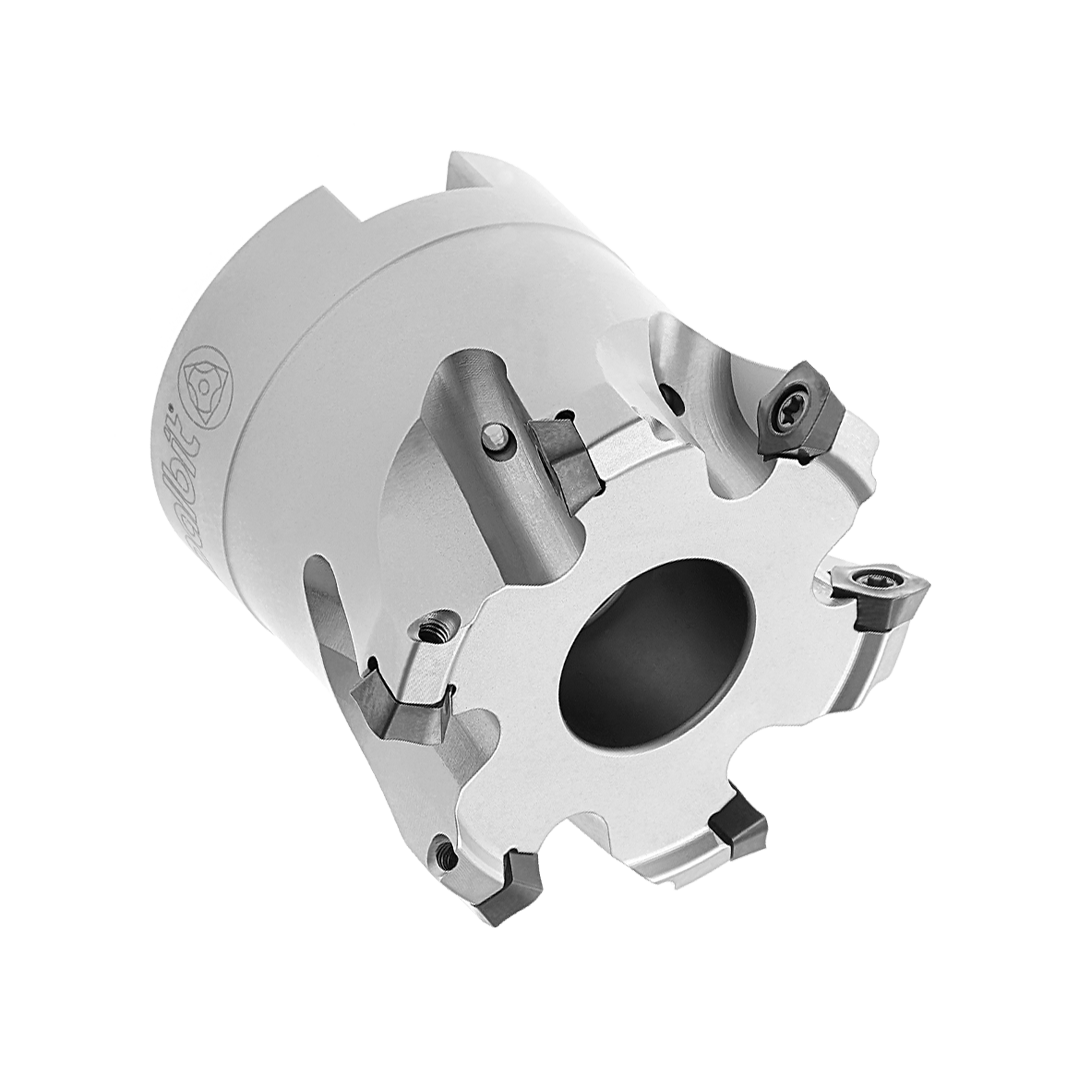

Palbit Arbor Mounting Holder - For PO0403 Inserts - 40mm Cutter Diameter - 181129300
| Insert Size & Shape | PO0403 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 30 |
Learn more about Klarna
Palbit Arbor Mounting Holder for PO0403 inserts, featuring a 40mm cutter diameter, delivers secure clamping and stable performance for precision micro-grooving and parting on CNC machines. It’s a reliable choice for tight-tolerance production where consistent results matter.
- Insert compatibility: Specifically designed for PO0403 inserts, ensuring a precise fit and reliable performance.
- Cutter diameter: 40 mm, optimized for micro-grooving and fine-detail parting applications.
- Clamping system: Secure clamping that minimizes runout and enhances stability during cutting.
- Primary applications: Ideal for precision micro-grooving and parting in fine-detail CNC machining.
- Performance benefits: Reduces vibration and chatter, contributing to more accurate cuts and extended tool life.
Designed to maintain accuracy in demanding environments, this holder supports high-precision operations in tight-tolerance production. The robust mounting interface helps machinists achieve repeatable results, with less downtime due to tool wear and vibration-related issues.
| Insert Size & Shape | PO0403 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 30 |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | -14 |
| Rdial Rake Angle (GAMF) | -7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PENTA HIFEED 06320 - Arbor Mounting
View full collection →You are viewing PAL-181129300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181129500 | PO0403 | HI Feed | Arbor Mounting | 52 | 45 | £262.80 | 5 days | |
| PAL-181129400 | PO0403 | HI Feed | Arbor Mounting | 50 | 45 | £254.70 | 5 days | |
| PAL-181129300 Viewing | PO0403 | HI Feed | Arbor Mounting | 40 | 40 | £222.76 | 5 days |
