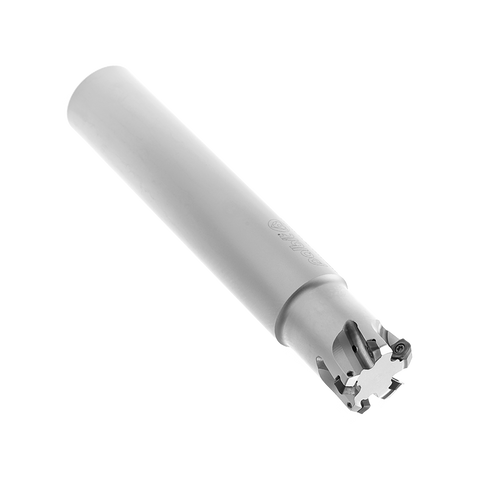

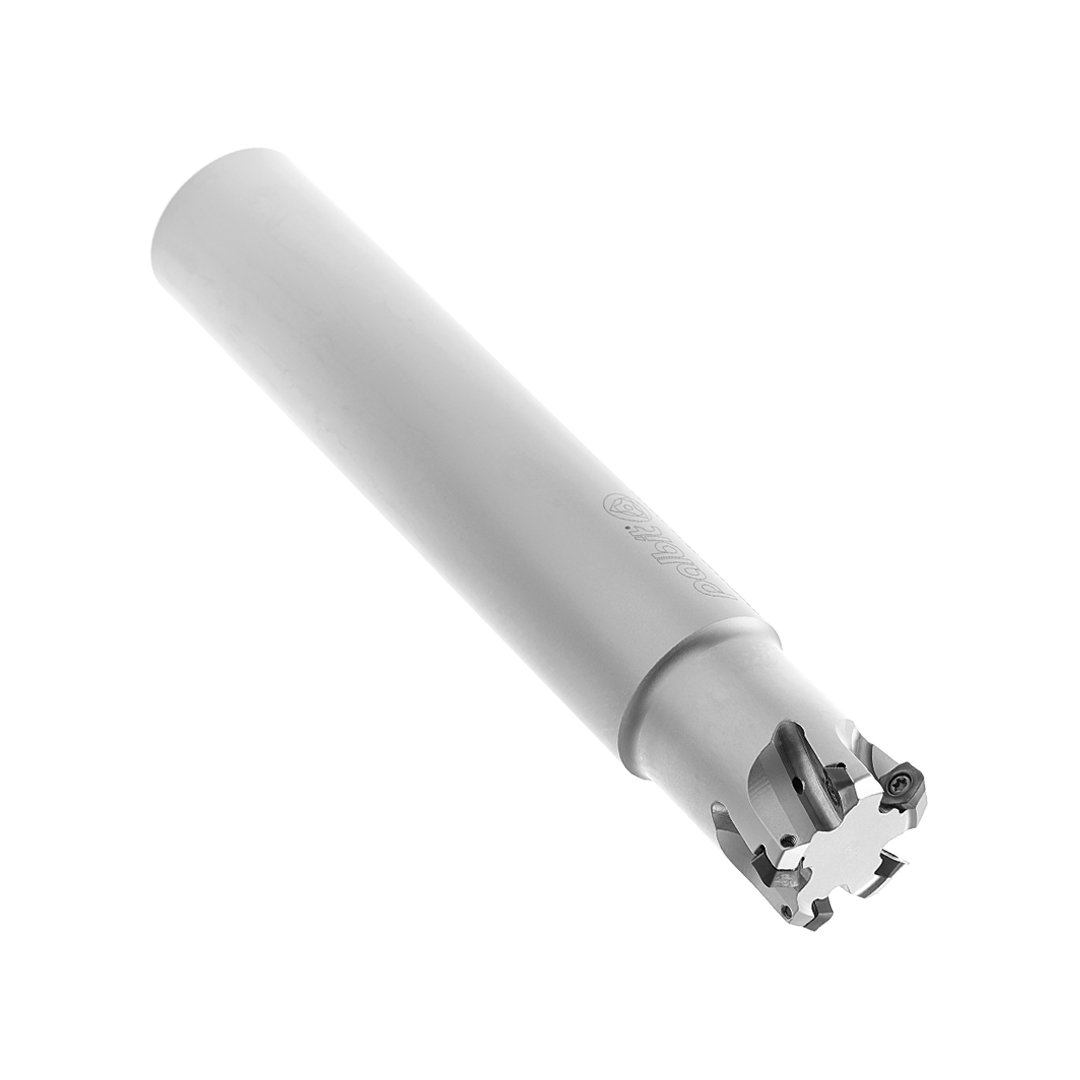

Palbit Cylindrical Shank Holder - For PO0403 Inserts - 20mm Cutter Diameter - 181147200
| Insert Size & Shape | PO0403 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
Learn more about Klarna
Engineered for high-precision micro-machining, the Palbit Cylindrical Shank Holder is designed to securely hold PO0403 inserts in compact CNC tool setups. With a 20 mm cutter diameter, it delivers stable performance for fine-detail grooving and parting applications.
- Inserts compatibility: Specifically designed to accept PO0403 inserts for precise alignment and repeatable clamping.
- Cutter diameter: 20 mm cutter diameter to support small-diameter machining with consistent results.
- Shank style: Cylindrical shank for uniform contact and rigidity in tight tooling spaces.
- Secure clamping: Robust insert clamping minimizes micro-movements during cutting, preserving edge quality.
- Vibration control: Optimized geometry reduces vibration and chatter during high-precision finishing passes.
- Application: Ideal for fine-detail grooving and parting tasks in CNC environments demanding tight tolerances.
With its precise fit and rigid clamping, this holder minimizes insert movement and vibration, leading to cleaner cuts, reduced cycle times, and longer tool life in demanding micro-machining tasks. The cylindrical shank and PO0403 compatibility enable fast, repeatable setups in compact tooling cells, helping operators maintain tight tolerances across batches and reduce rework.
| Insert Size & Shape | PO0403 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 130 |
| Usable Length (LU) | 40 |
| Axial Rake Angel (GAMP) | -14 |
| Rdial Rake Angle (GAMF) | -6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PENTA HIFEED 06320 - Cylindrical Shank
View full collection →You are viewing PAL-181147200. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181131100 | PO0403 | HI Feed | Cylindrical Shank | 32 | 180 | £232.73 | 5 days | |
| PAL-181131000 | PO0403 | HI Feed | Cylindrical Shank | 25 | 150 | £191.00 | 5 days | |
| PAL-181147200 Viewing | PO0403 | HI Feed | Cylindrical Shank | 20 | 130 | £149.50 | 5 days |
