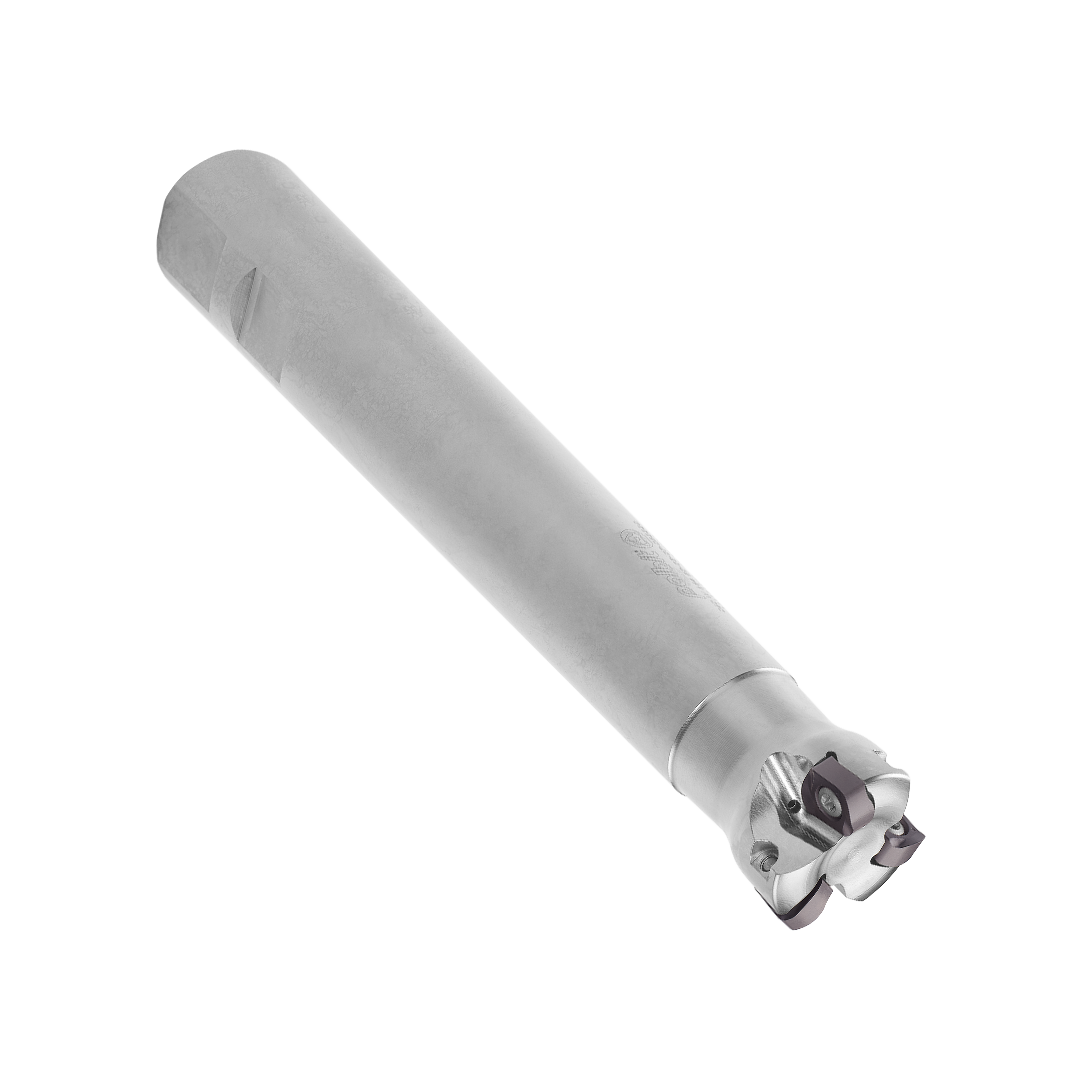

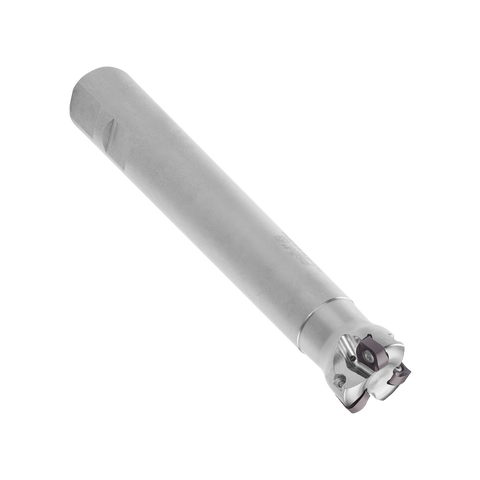

Palbit Weldon Shank Holder - For XN1205 Inserts - 40mm Cutter Diameter - 181181500
| Insert Size & Shape | XN1205 |
| Depth of Cut Maximum (APMX) | 1.5 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
Learn more about Klarna
The Palbit Weldon Shank Holder is a precision toolholder designed for XN1205 inserts, delivering rugged rigidity and secure clamping for reliable CNC grooving and parting performance.
- Compatibility: Specifically engineered to accommodate XN1205 inserts for a precise, drop-in fit.
- Diameter: 40 mm cutter diameter optimized for standard grooving and parting applications.
- Shank Type: Weldon-style shank guidance for stable seating and repeatable accuracy.
- Clamping & Rigidity: Superior rigidity and secure insert clamping minimize deflection during heavy cutting.
- Performance: Engineered to deliver accurate cutting performance with efficient chip control.
- Durability: Built to withstand demanding CNC environments, supporting extended tool life and consistent results.
Engineered for precision and reliability, this holder helps you achieve tight tolerances and clean chip evacuation in challenging production runs. Its robust clamping and rigid design reduce vibration and insert movement, enabling repeatable, high-quality finishes across demanding machining workloads.
| Insert Size & Shape | XN1205 |
| Depth of Cut Maximum (APMX) | 1.5 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 5 |
| Functional Length (LF) | 220 |
| Usable Length (LU) | 45 |
| Axial Rake Angel (GAMP) | -7 |
| Rdial Rake Angle (GAMF) | -11 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TETRAFEED 16420 - Weldon Shank
View full collection →You are viewing PAL-181181500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181181500 Viewing | XN1205 | HI Feed | Weldon Shank | 40 | 220 | £238.40 | 5 days | |
| PAL-181181000 | XN1205 | HI Feed | Weldon Shank | 32 | 150 | £158.93 | 5 days |
