Palbit Threaded Coupling Holder - For WN0403 WO0403 Inserts - 25mm Cutter Diameter - 181193000

Palbit Threaded Coupling Holder - For WN0403 WO0403 Inserts - 25mm Cutter Diameter - 181193000

SKU:PAL-181193000
The Palbit Threaded Coupling Holder is a compact, high-precision tool holder designed for micro-milling with WN0403 or WO0403 inserts. Its threaded coupling design ensures stable, repeatable perfo... Read more ↓
Specification
Insert Size & ShapeWN0403 WO0403
Depth of Cut Maximum (APMX)3.5
Cutting Item Count (CICT)5
Adaptive Interface Machine DirectionThreaded Coupling
Contact Surface Machine Side (DCSFMS)23
Tool Cutting Edge Angle (KAPR)90
View all specifications ↓
£221.11
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

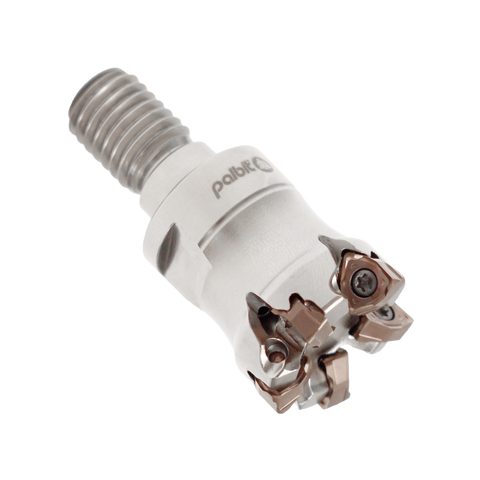

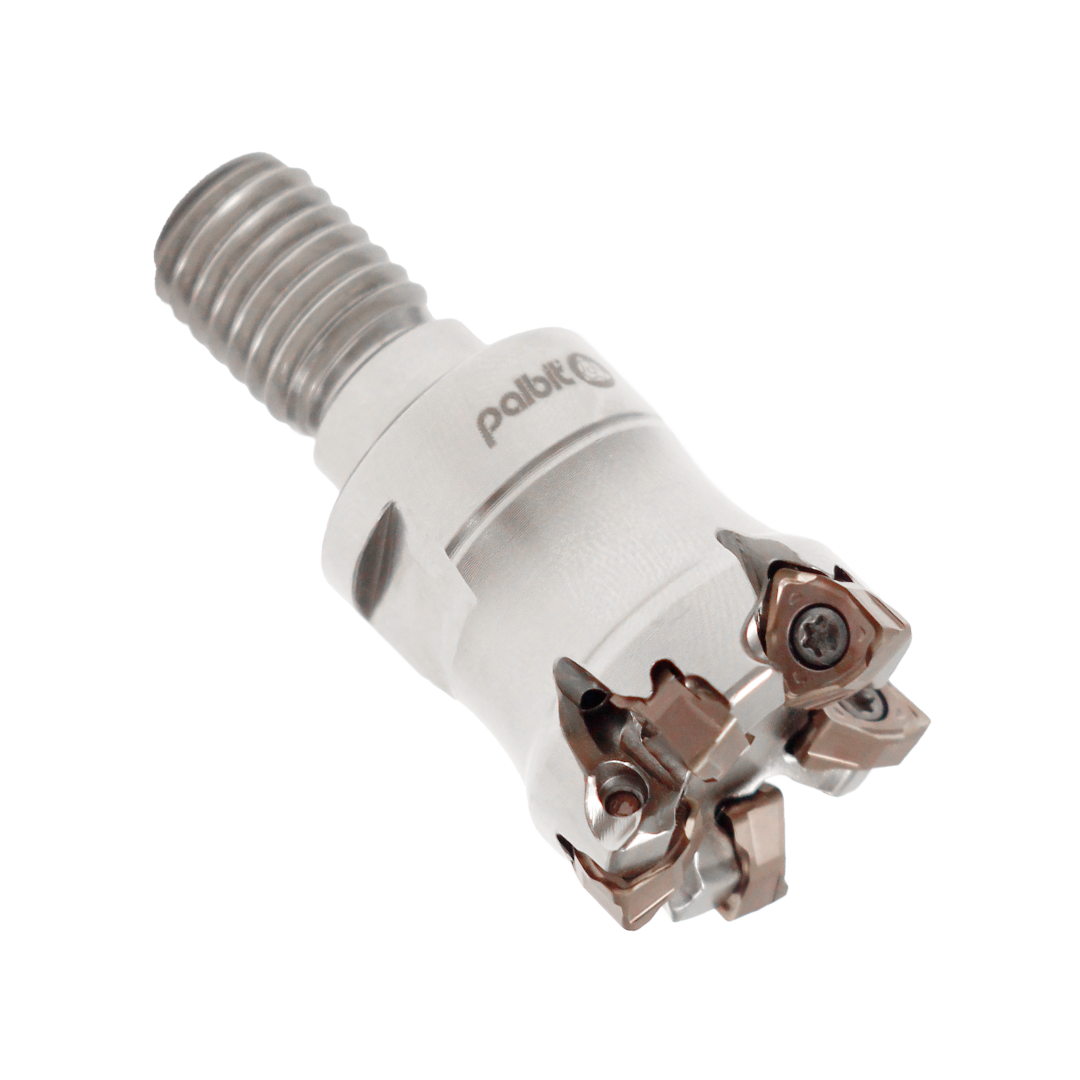

The Palbit Threaded Coupling Holder is a compact, high-precision tool holder designed for micro-milling with WN0403 or WO0403 inserts. Its threaded coupling design ensures stable, repeatable performance in fine-detail work and small-part production.

  • Inserts compatibility: compatible with WN0403 and WO0403 inserts.
  • Cutting diameter: 25 mm cutter diameter for precise short-cycle milling.
  • Threaded coupling design: secure insert retention for repeatable machining accuracy.
  • Compact, high-performance: optimized for stability and precision in tight-tolerance applications.
  • Target users: ideal for engineers and CNC professionals performing micro-milling tasks.

Designed to deliver secure insert retention, improved tool life, and consistent results in tight-tolerance applications, this holder supports reliable performance in precision machining and small-part production environments.

Insert Size & Shape WN0403 WO0403
Depth of Cut Maximum (APMX) 3.5
Cutting Item Count (CICT) 5
Adaptive Interface Machine Direction Threaded Coupling
Contact Surface Machine Side (DCSFMS) 23
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 25
Torque (TQ) 1.2
Functional Length (LF) 30
Usable Length (LU) 29
Axial Rake Angel (GAMP) -5
Rdial Rake Angle (GAMF) -13
