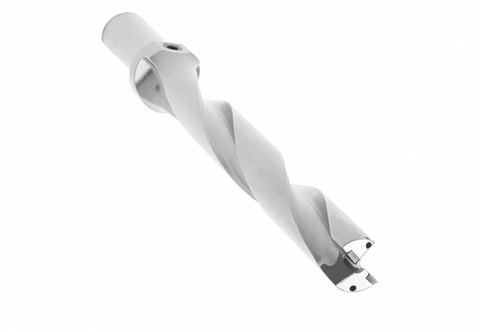

Palbit Indexable U-Drill - 6XD - SPMG/SPKX - 30mm

Please log in here to access all benefits, including multibuy discounts and faster checkouts.

Palbit Indexable U-Drill - 6XD - SPMG/SPKX - 30mm

SKU:PAL-184156700

Specification

Diameter	30
Flute Length	180
Overall Length	279
Insert	SP…07T3
Shank Size	32
Screw	P0250704

£608.16

Prices shown ex. VAT

5 days estimated lead time — subject to availability

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Indexable U-Drill - 6XD - SPMG/SPKX, 30 mm diameter, is a high‑precision deep‑hole drilling solution designed for metalworking and composite applications. Built for extended reach with a 6XD geometry, it pairs with SPMG and SPKX inserts to deliver dependable, long‑lasting performance in demanding production environments.

Diameter: 30 mm
Reach: 6XD length (six times the drill diameter) for deep holes
Insert Compatibility: accepts SPMG and SPKX indexable inserts for fast changeovers
Chip Control: optimized flute design for superior chip evacuation and hole accuracy
Material Range: effective on a variety of metals and composites
Durability: engineered for long-lasting cutting performance under heavy use

With its long reach, replaceable inserts, and proven Palbit technology, this U‑drill supports precise hole geometry and reliable performance across challenging materials. Ideal for high‑demand manufacturing where deep holes and consistent results matter.

Diameter	30
Flute Length	180
Overall Length	279
Insert	SP…07T3
Shank Size	32
Screw	P0250704
Wrench	T8
Pilot Drill	MDP2508

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Palbit Indexable U-Drills- 6XD - SPMG/SPKX

View full collection →

You are viewing PAL-184156700. Click any other SKU to view its full details.

Product SKU	Diameter	Flute Length	Overall Length	Insert	Shank Size	Screw	Wrench	Pilot Drill	Price	Stock

PAL-184154300	18	108	194	SP…0502	25	P0200500	T6	MDP2006	£442.01	5 days
PAL-184154400	18.5	111	195	SP…0502	25	P0200500	T6	MDP2006	£442.01	5 days
PAL-184154500	19	114	198	SP…0502	25	P0200500	T6	MDP2006	£442.01	5 days
PAL-184154600	19.5	117	201	SP…0502	25	P0200500	T6	MDP2006	£442.01	5 days
PAL-184154700	20	120	204	SP…0602	25	P0220500	T7	MDP2006	£442.01	5 days
PAL-184154800	20.5	123	207	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184154900	21	126	210	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184155000	21.5	129	213	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184155100	22	132	216	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184155200	22.5	135	219	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184155300	23	138	222	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184155400	23.5	141	225	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184155500	24	144	228	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184155600	24.5	147	231	SP…0602	25	P0220500	T7	MDP2006	£497.39	5 days
PAL-184155700	25	150	232	SP…0602	25	P0220500	T7	MDP2006	£567.32	5 days
PAL-184155800	25.5	153	252	SP…07T3	32	P0250704	T8	MDP2508	£567.30	5 days
PAL-184155900	26	156	255	SP…07T3	32	P0250704	T8	MDP2508	£608.16	5 days
PAL-184156000	26.5	159	258	SP…07T3	32	P0250704	T8	MDP2508	£608.15	5 days
PAL-184156100	27	162	261	SP…07T3	32	P0250704	T8	MDP2508	£608.15	5 days
PAL-184156200	27.5	165	264	SP…07T3	32	P0250704	T8	MDP2508	£608.15	5 days
PAL-184156300	28	168	267	SP…07T3	32	P0250704	T8	MDP2508	£608.15	5 days
PAL-184156400	28.5	171	270	SP…07T3	32	P0250704	T8	MDP2508	£608.15	5 days
PAL-184156500	29	174	273	SP…07T3	32	P0250704	T8	MDP2508	£608.15	5 days
PAL-184156600	29.5	177	276	SP…07T3	32	P0250704	T8	MDP2508	£608.15	5 days
PAL-184156700 Viewing	30	180	279	SP…07T3	32	P0250704	T8	MDP2508	£608.16	5 days
