Europa Tools Powder Metal End Mill - 4 Flute Multiple Helix With Corner Radius -14mm
| Cutter Diameter (DC) | 14 |
| Number of Flutes | 4 |
| Flute Length (APMX) | 26 |
| Overall Length (OAL) | 83 |
| Shank Diameter (DMM) | 12 |
| Reach (LU) | N/A |
Learn more about Klarna
Europa Tools' Powder Metal End Mill is built for professional CNC milling, delivering precise, stable cuts through demanding materials. Its 4-flute, multiple-helix design and integrated corner radius provide smooth contouring and reliable performance for profiling, pocketing, and complex geometries.
- Material: PM75S powder metal construction delivers exceptional wear resistance and heat tolerance for longer tool life.
- Flute Design: 4-flute configuration with multiple helix angles optimizes chip evacuation and maintains stability at higher feed rates.
- Corner Radius: 14 mm corner radius enables smoother entry and exit cuts, reducing tooth stress during contouring passes.
- Precision Geometry: Carefully ground cutting edges and geometry ensure accurate dimensions and a consistent surface finish.
- Versatility: Well suited for profiling, contouring, and pocketing across a range of common milling materials.
With this end mill, you’ll experience longer tool life, reduced downtime for tool changes, and more consistent results across passes. The PM75S powder metal composition resists wear and heat, helping maintain a sharp edge through demanding cycles. The engineered flute geometry improves chip evacuation, minimizes heat buildup, and mitigates chatter, contributing to tighter tolerances and smoother surfaces on complex geometries.

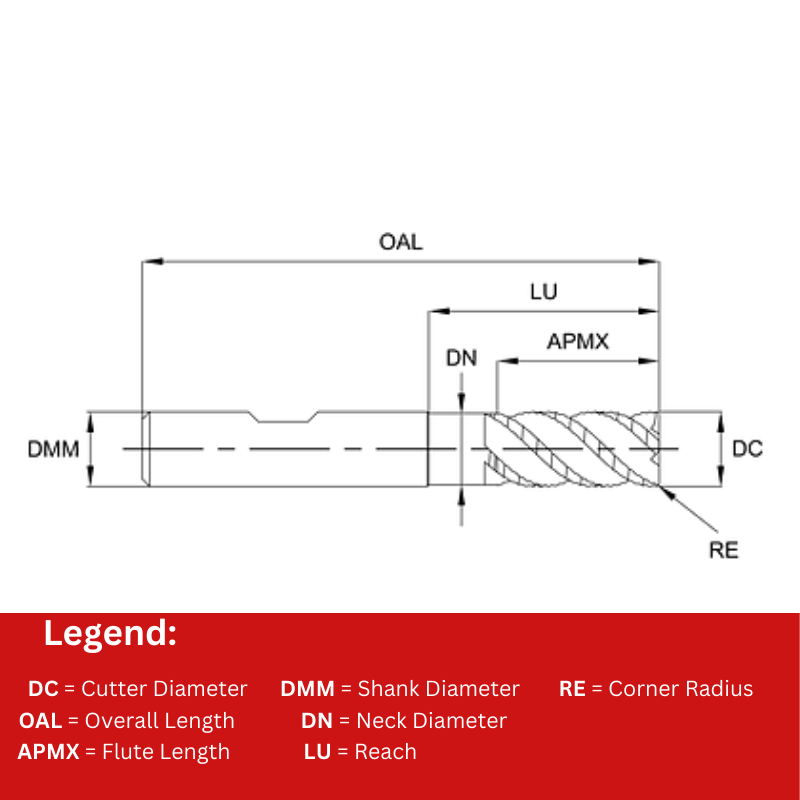

| Cutter Diameter (DC) | 14 |
| Number of Flutes | 4 |
| Flute Length (APMX) | 26 |
| Overall Length (OAL) | 83 |
| Shank Diameter (DMM) | 12 |
| Reach (LU) | N/A |
| Neck Diameter (DN) | 13 |
| Corner Radius (RE) | 1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Powder Metal End Mill - 4 Flute Multiple Helix With Corner Radius (PM75S)
View full collection →You are viewing PM75S1400. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Number of Flutes | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Neck Diameter (DN) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PM75S0600 | 6 | 4 | 13 | 57 | 6 | N/A | 5.5 | 0.5 | £19.67 | 1-2 days | |
| PM75S0800 | 8 | 4 | 19 | 69 | 10 | N/A | 7.5 | 0.5 | £22.31 | 1-2 days | |
| PM75S1000 | 10 | 4 | 22 | 72 | 10 | 31 | 9.2 | 0.5 | £25.31 | 1-2 days | |
| PM75S1200 | 12 | 4 | 26 | 83 | 12 | 37 | 11 | 0.5 | £31.03 | 1-2 days | |
| PM75S1400 Viewing | 14 | 4 | 26 | 83 | 12 | N/A | 13 | 1 | £37.15 | 1-2 days | |
| PM75S1600 | 16 | 4 | 32 | 92 | 16 | 44 | 16 | 1 | £46.50 | 1-2 days | |
| PM75S1800 | 18 | 4 | 32 | 92 | 16 | N/A | 17 | 1 | £50.29 | 1-2 days | |
| PM75S2000 | 20 | 4 | 38 | 104 | 20 | 54 | 19 | 1 | £66.66 | 1-2 days | |
| PM75S2500 | 25 | 4 | 45 | 121 | 25 | 63 | 24 | 1 | £99.79 | 1-2 days |
