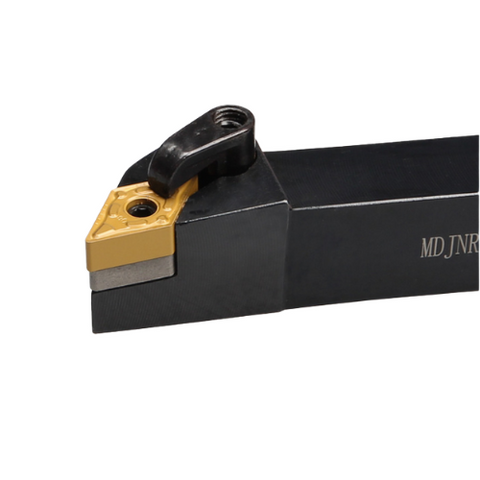

Vortex Turning Tool Holder Clamp Lock 93 DEG - For DNMG1104 Inserts - MDJNR1616H11
| ISO Code | MDJNR 1616 H11 |
| Shank Size | 16x16 |
| Insert | DN** 1104-- |
| Locking System | Clamp |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Turning Tool Holder Clamp Lock 93 DEG is a precision turning solution designed for DNMG1104 inserts, delivering secure seating and repeatable accuracy in turning operations. Part of the MDJNR1616H11 family, it supports dependable performance and a consistent surface finish in demanding machining tasks. For setup, consider compatible accessories: .
- 93-degree orientation: Optimized geometry for DNMG1104 inserts, enabling efficient, precise turning paths and improved chip control.
- Clamp Lock mechanism: Robust locking action secures the insert position, minimizing movement and tool chatter during cuts.
- DNMG1104 insert compatibility: Specifically engineered to fit standard DNMG1104 inserts for quick setup and consistent seating.
- MDJNR1616H11 integration: Part of the MDJNR1616H11 family, offering a reliable interface and predictable performance across turning operations.
This tool holder is designed to enhance turning accuracy and surface quality by keeping the insert square, stable, and properly clamped throughout the cut. The 93-degree orientation supports clean, repeatable finishes on small-diameter workpieces, while the Clamp Lock mechanism helps reduce rework and scrap. Whether you’re performing finishing passes or roughing operations, this holder provides dependable support for DNMG1104 inserts, contributing to longer tool life and more consistent results in automotive, aerospace, and general engineering turning tasks.
Part Numbers
- Protool Part Number
- PRO1600007
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Clamp Lock 93 DEG - For DNMG Inserts (MDJNR/L)
View full collection →You are viewing PRO1600007. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600007 Viewing | MDJNR 1616 H11 | 16x16 | DN** 1104-- | Clamp | Right | 100 | £15.88 | In Stock | |
| PRO1600008 | MDJNR 2020 K11 | 20x20 | DN** 1104-- | Clamp | Right | 125 | £16.92 | 4-6 weeks | |
| PRO1600009 | MDJNR 2525 M11 | 25x25 | DN** 1104-- | Clamp | Right | 150 | £17.98 | In Stock | |
| PRO1600010 | MDJNR 2020 K1504 | 20x20 | DN** 1504-- | Clamp | Right | 125 | £16.92 | 4-6 weeks | |
| PRO1600011 | MDJNR 2525 M1504 | 25x25 | DN** 1504-- | Clamp | Right | 150 | £17.98 | 4-6 weeks | |
| PRO1600012 | MDJNR 2020 K1506 | 20x20 | DN** 1506-- | Clamp | Right | 125 | £16.92 | In Stock | |
| PRO1600013 | MDJNR 2525 M1506 | 25x25 | DN** 1506-- | Clamp | Right | 150 | £17.98 | In Stock |
