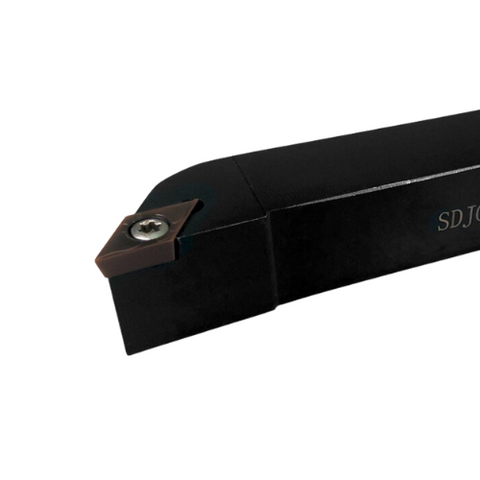

Vortex Turning Tool Holder Screw Clamp 93 DEG - For DCMT11T3/DCGT11T3 Inserts - SDJCR1616-H11
| ISO Code | SDJCR 1616 H11 |
| Shank Size | 16x16 |
| Insert | DC** 11T3-- |
| Locking System | Screw |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Turning Tool Holder with a 93° orientation is designed for turning operations that use DCMT11T3 or DCGT11T3 inserts, delivering precise insert seating and reliable clamping for consistent, high-quality finishes.
- 93° orientation: Optimized cutting geometry that aligns with DCMT11T3/DCGT11T3 inserts for efficient chip control and smooth tool engagement.
- Screw Clamp mechanism: Positive locking with a simple screw clamp ensures secure insert positioning and repeatable clamping force.
- DCMT11T3 / DCGT11T3 compatibility: Specifically engineered to accommodate these widely used indexable inserts, enabling predictable performance in turning tasks.
- SDJCR1616-H11 family design: Part of the SDJCR series, engineered for rigidity and stable alignment during high-speed turning.
- Durable construction: Built to withstand frequent use in demanding turning applications with a robust body and reliable wear resistance.
- Fast setup and maintenance: Quick insert exchange and straightforward clamp checks reduce downtime and keep production moving.
With the Vortex 93° tool holder, you gain repeatable diameter control and superior surface finish thanks to stable insert seating and consistent clamping. The secure screw clamp minimizes insert movement under load, extending insert life and reducing rework. This holder is ideal for precision finishing passes on small to medium-diameter workpieces, as well as roughing steps that demand dependable accuracy across multiple parts and shifts. For a seamless setup, pair it with the right clamping screw and tool wrench to ensure precise alignment and fast changes: Clamping Screw and Wrench.
Part Numbers
- Protool Part Number
- PRO1600073
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Screw Clamp 93 DEG - For DCMT/DCGT Inserts (SDJCR/L)
View full collection →You are viewing PRO1600073. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600069 | SDJCR 1010 E07 | 10x10 | DC** 0702-- | Screw | Right | 70 | £10.58 | 4-6 weeks | |
| PRO1600070 | SDJCR 1212 F07 | 12x12 | DC** 0702-- | Screw | Right | 80 | £10.58 | In Stock | |
| PRO1600071 | SDJCR 1616 H07 | 16x16 | DC** 0702-- | Screw | Right | 100 | £11.63 | 4-6 weeks | |
| PRO1600072 | SDJCR 2020 K07 | 20x20 | DC** 0702-- | Screw | Right | 125 | £14.83 | 4-6 weeks | |
| PRO1600073 Viewing | SDJCR 1616 H11 | 16x16 | DC** 11T3-- | Screw | Right | 100 | £11.63 | In Stock | |
| PRO1600074 | SDJCR 2020 K11 | 20x20 | DC** 11T3-- | Screw | Right | 125 | £14.83 | In Stock | |
| PRO1600075 | SDJCR 2525 M11 | 25x25 | DC** 11T3-- | Screw | Right | 150 | £16.92 | In Stock | |
| PRO1600560 | SDJCL1616H11 | 16x16 | DC** 11T3-- | Screw | Left | 100 | £34.18 | 4-6 weeks | |
| PRO1600561 | SDJCL2020K11 | 20x20 | DC** 11T3-- | Screw | Left | 125 | £34.18 | 4-6 weeks | |
| PRO1600562 | SDJCL2525M11 | 25x25 | DC** 11T3-- | Screw | Left | 150 | £34.18 | 4-6 weeks |
