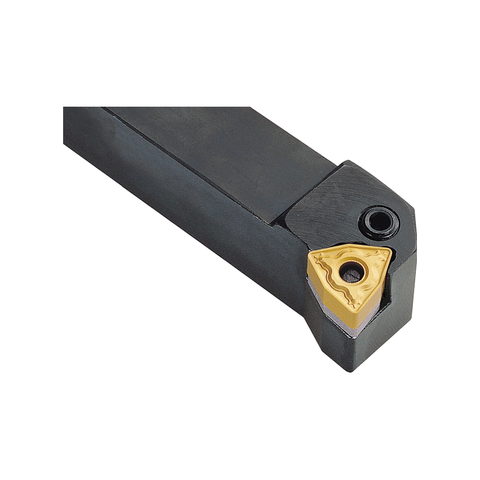

PWLNL1616-H06 Standard Turning Tool Holder, 16 x 16mm Shank, 100mm Long, Left Hand, 95 Degree Approach, Lever Lock, for WNMG06 inserts - PWLNR/L Series (Vortex)
| ISO Code | PWLNL1616H06 |
| Shank Size | 16x16 |
| Insert | WN** 0604-- |
| Locking System | Pin Lock |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The PWLNL1616-H06 Standard Turning Tool Holder is a robust, left‑hand turning solution designed for reliable performance with WNMG06 inserts. Built with a solid steel shank and a quick, secure lever-lock system, it delivers dependable rigidity and fast insert changes at a 95° approach.
- Shank size: 16 x 16 mm
- Overall length: 100 mm
- Left-hand orientation: Left-handed tool holder for common turning configurations
- Approach angle: 95° for efficient face and shoulder machining
- Clamping system: Lever lock provides strong, repeatable insert clamping with quick changeover
- Insert compatibility: Specifically designed for WNMG06 inserts
- Material: Solid steel shank for rigidity and long tool life
- Series: PWLNR/L Series (Vortex) for standardized tooling
This tool holder excels in general turning applications where reliable rigidity, quick insert changes, and precise 95° engagement are important. The lever-lock clamping minimizes downtime during tool changes while maintaining consistent clamping force, helping you maintain accurate cut depths and repeatable results. Ideal for shops that rely on WNMG06 insert geometry and want a dependable, easy-to-use holder that holds its tolerance under demanding turning conditions.
Part Numbers
- Protool Part Number
- PRO1600533
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Pin Lock 95 DEG - For WNMG Inserts (PWLNR)
View full collection →You are viewing PRO1600533. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600035 | PWLNR 1616 H06 | 16x16 | WN** 0604-- | Pin Lock | Right | 100 | £23.56 | In Stock | |
| PRO1600036 | PWLNR 2020 K06 | 20x20 | WN** 0604-- | Pin Lock | Right | 125 | £24.67 | In Stock | |
| PRO1600037 | PWLNR 2525 M06 | 25x25 | WN** 0604-- | Pin Lock | Right | 150 | £25.92 | In Stock | |
| PRO1600038 | PWLNR 2020 K08 | 20x20 | WN** 0804-- | Pin Lock | Right | 125 | £24.67 | In Stock | |
| PRO1600039 | PWLNR 2525 M08 | 25x25 | WN** 0804-- | Pin Lock | Right | 150 | £25.92 | In Stock | |
| PRO1600040 | PWLNR 3232 M08 | 32x32 | WN** 0804-- | Pin Lock | Right | 150 | £30.85 | In Stock | |
| PRO1600533 Viewing | PWLNL1616H06 | 16x16 | WN** 0604-- | Pin Lock | Left | 100 | £59.58 | 4-6 weeks | |
| PRO1600534 | PWLNL2020K06 | 20x20 | WN** 0604-- | Pin Lock | Left | 125 | £30.59 | 4-6 weeks | |
| PRO1600535 | PWLNL2020K08 | 20x20 | WN** 0804-- | Pin Lock | Left | 125 | £30.59 | 4-6 weeks | |

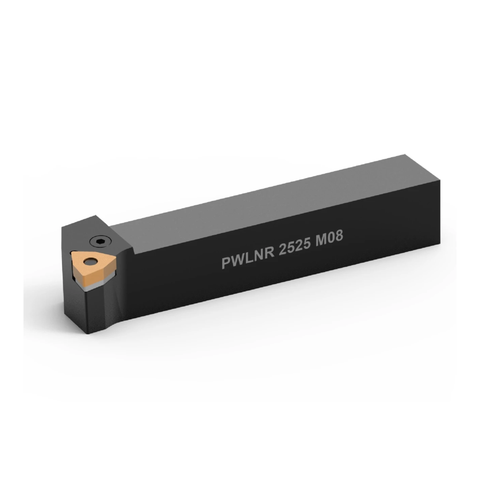

| PRO1600536 | PWLNL2525M06 | 25x25 | WN** 0604-- | Pin Lock | Left | 150 | £30.59 | 4-6 weeks | |
| PRO1600537 | PWLNL2525M08 | 25x25 | WN** 0804-- | Pin Lock | Left | 150 | £30.59 | 4-6 weeks |
