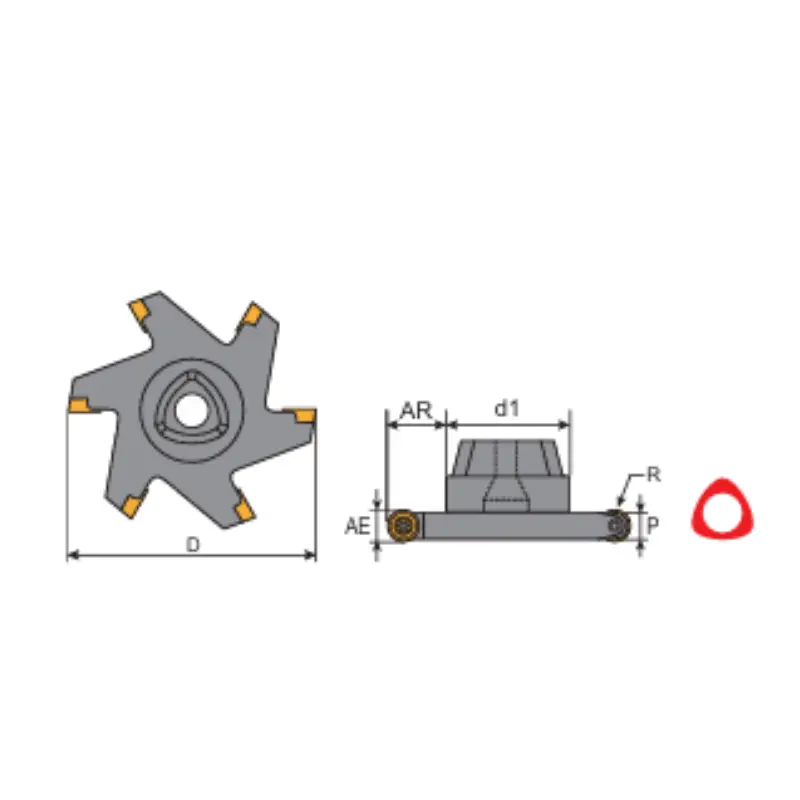

Y.T. Indexable T-Slot Cutter (3TR) - Metric - 60 mm Saw Diameter for RDHW/RDKT/RPKT Inserts - Insert Width 8mm (3TS2580-10)

The Y.T. Indexable T-Slot Cutter (3TR) delivers precise, scalable T-slot milling with a 60 mm saw diameter, designed for RDHW, RDKT, and RPKT inserts with an 8 mm insert width. This modular, indexable system combines reliable performance with a robust connection that maintains center accuracy and tool life.

• Diameter: 60 mm saw diameter for stable, accurate T-slot milling
• Insert compatibility: Supports RDHW, RDKT, and RPKT inserts
• Insert width: 8 mm insert width to match the cutter geometry
• Connection design: Unique tapered-polygon connection ensures precise center positioning and consistent runout
• Shank ecosystem: UFO T-slot shanks; six shanks cover the entire CAPTO range, each shank supporting up to 400 UFO inserts
• Cutter types and capacity: Ability to operate nine different cutter types and house over 1,400 UFO inserts in total
• Performance design: Optimized cutting angle and chip removal improve machining efficiency by up to 300% versus traditional HSS or welded T-slot cutters

The integrated system minimizes downtime through simple connections and quick insert replacements, while the tapered-polygon design preserves center positioning for higher machining accuracy and extended tool life. With a wide range of shanks and insert options, this cutter supports versatile, high-efficiency T-slot operations across CAPTO-compatible tooling environments.
