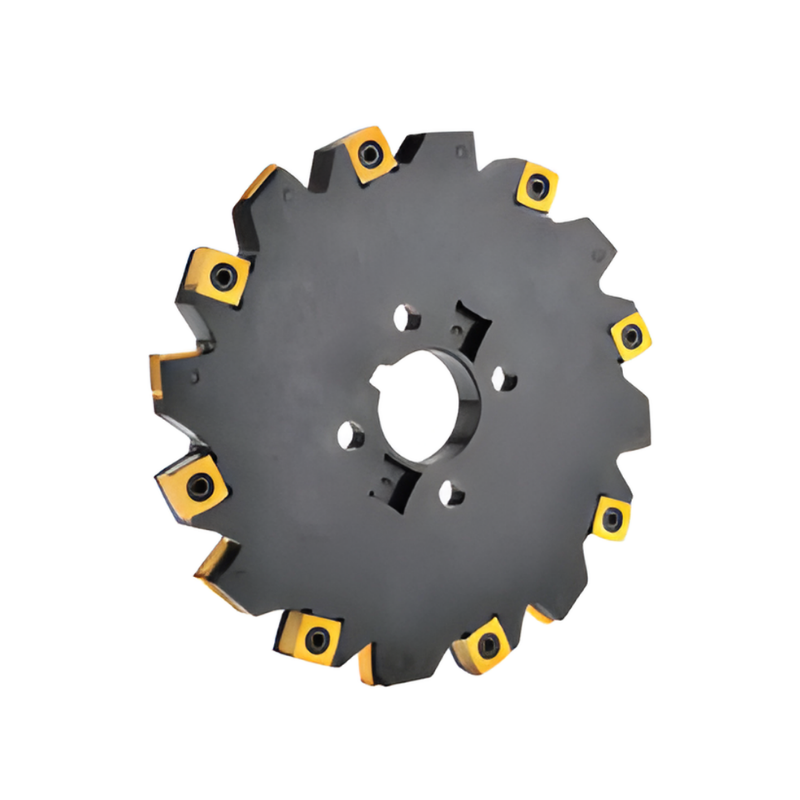

Y.T. Indexable Side Milling Cutter For SNGX/SNGW 120 Inserts - 160mm Diameter 8mm Insert Thickness 46.5mm Cutting Depth 16 Teeth (SCL-160-8-32)

The Y.T. Indexable Side Milling Cutter is a durable, insert-based solution designed for SNGX/SNGW 120 insert configurations. With a 160 mm diameter, 8 mm insert thickness, a 46.5 mm cutting depth, and 16 teeth, it delivers reliable side milling performance on demanding workpieces.

• Diameter: 160 mm
• Insert Thickness: 8 mm
• Teeth: 16
• Cutting Depth: 46.5 mm
• Insert Compatibility: Uses indexable carbide inserts; compatible with over 10 insert types
• Clamping Design: Safe and reliable insert clamping for secure operation
• Max RPM Certification: Certified by Swedish customers to operate securely up to 17,200 RPM
• Chip Evacuation: Patented chip evacuation design prevents blockages within the groove
• Series Compatibility: Standard thickness options from 1.4 mm to 5.5 mm; cutter diameter ranges 50 mm to 300 mm across the series

This cutter is built for easy maintenance and long-term efficiency: replace worn inserts without swapping the tool, benefit from efficient chip clearance to minimize downtime, and rely on a robust clamping system to keep inserts firmly in place during high-speed operations. Ideal for precision side milling tasks that demand consistent geometry and reliable performance.
