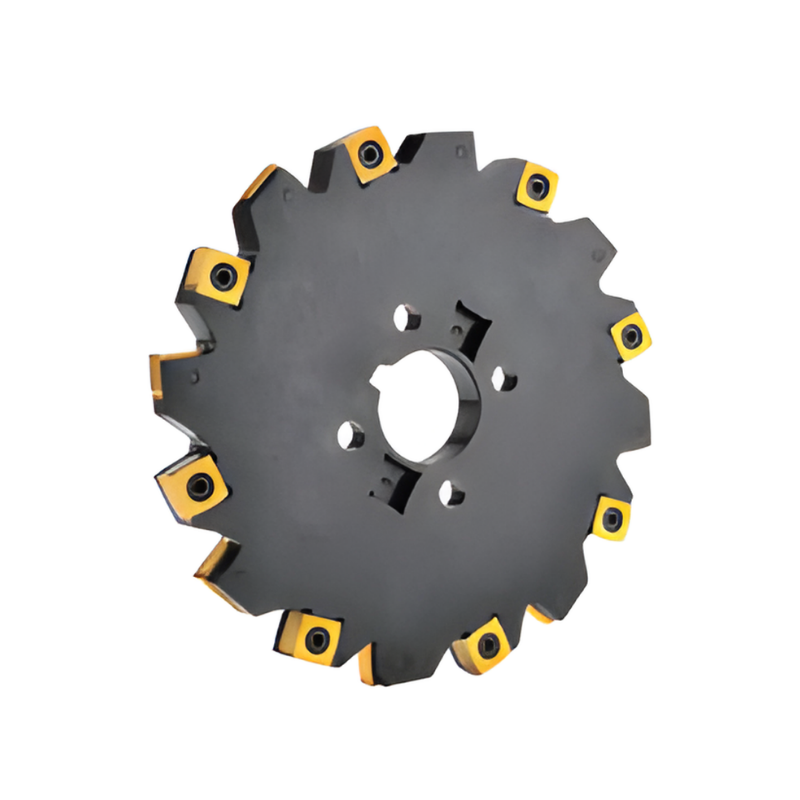

Y.T. Indexable Side Milling Cutter For SNGX/SNGW 120 Inserts - 200mm Diameter 10mm Insert Thickness 54mm Cutting Depth 18 Teeth (SCL-200-10-40)

The Y.T. Indexable Side Milling Cutter is a robust, quick-change milling solution designed for SNGX/SNGW machines that use 120 inserts. With a 200 mm diameter, 54 mm cutting depth, 18 teeth, and a 10 mm insert thickness, it delivers precise side milling and fast insert replacement.

• Diameter: 200 mm
• Insert thickness: 10 mm
• Cutting depth: 54 mm
• Teeth: 18
• Insert type: Indexable carbide inserts, compatible with 120 inserts for SNGX/SNGW and over 10 insert types
• Clamp design: Safe and reliable insert clamping, certified by Swedish customers to perform securely at speeds up to 17,200 RPM
• Chip evacuation: Patented chip evacuation design prevents chip blockages within the groove during operation
• Max speed: Up to 17,200 RPM
• Series availability: Standard thicknesses from 1.4 mm to 5.5 mm; cutter diameters range from 50 mm to 300 mm across the series

Benefits: This indexable cutter minimizes downtime with quick insert changes and a durable clamp that holds inserts securely at high speeds. The tailored chip evacuation system keeps the groove clear, reducing heat and wear, while the broad insert compatibility provides flexibility across materials and applications. The combination of 200 mm diameter, 54 mm cutting depth, and 18 teeth delivers efficient material removal with a reliable surface finish, making it a versatile choice for demanding side milling tasks.
