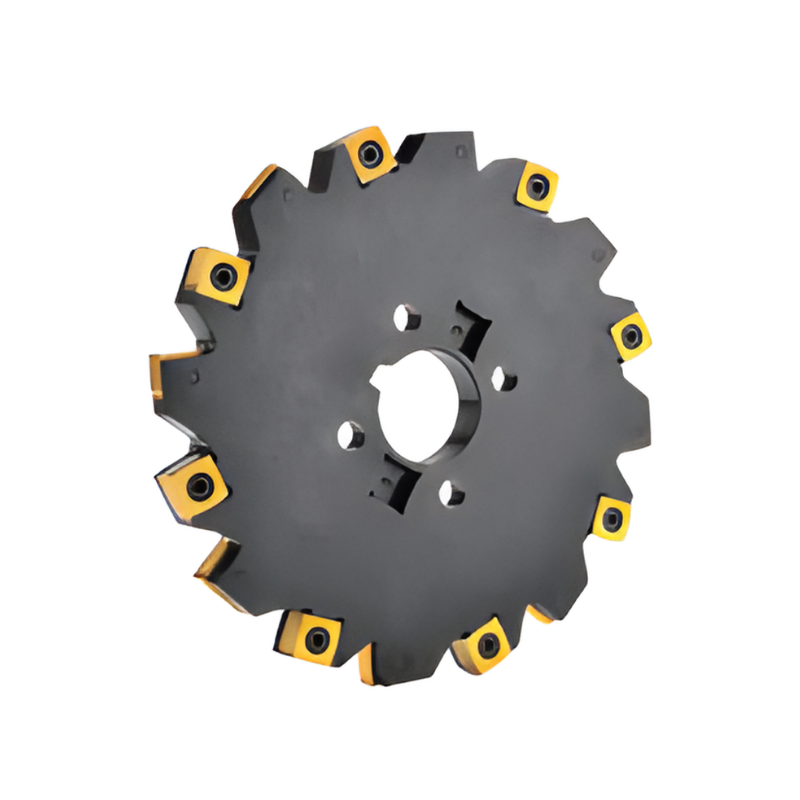

Y.T. Indexable Side Milling Cutter For SNGX/SNGW 120 Inserts - 250mm Diameter 8mm Insert Thickness 79mm Cutting Depth 24 Teeth (SCL-250-8-40)

Y.T. Indexable Side Milling Cutter (SCL-250-8-40) for SNGX/SNGW inserts, built for reliable performance in metalworking with a 250 mm cutter diameter, 8 mm insert thickness, 79 mm cutting depth, and 24 teeth. This tool is designed to work with SNGX/SNGW 120 inserts and is compatible with over 10 different insert types.

• Diameter: 250 mm cutter diameter for wide-range milling applications
• Insert Thickness: 8 mm insert thickness to match compatible inserts
• Cutting Depth: 79 mm maximum cutting depth for deep slotting and profiling
• Teeth: 24 teeth designed for balanced chip load and efficient material removal
• Compatibility: Specifically designed for SNGX/SNGW 120 inserts; also compatible with over 10 other insert types
• Insert Clamping: Safe and reliable insert clamping design for secure seating during high-speed machining
• High-Speed Capability: Certified performance up to 17,200 RPM for productive milling
• Chip Evacuation: Patented chip evacuation design prevents chip blockages within the groove
• Indexable Inserts: Uses indexable carbide inserts for easy replacement and reduced downtime
• Series Range: Standard thicknesses available from 1.4 mm to 5.5 mm; cutter diameters span 50–300 mm across the series

This milling cutter is engineered to deliver consistent, precise results with minimal setup fuss. The combination of a robust indexing system, effective chip evacuation, and broad insert compatibility helps maintain smooth cutting performance across a range of materials and milling tasks, making it a dependable choice for shops prioritizing efficiency and uptime.
