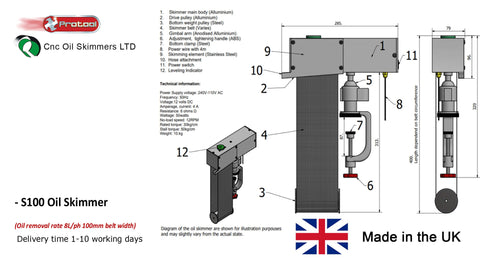

Belt for CNC Oil Skimmer S100 - 100mm x 800mm

The Belt for CNC Oil Skimmer S100 is a dedicated belt kit engineered to keep CNC coolant systems clean by effectively removing tramp oil. Designed for machine shops and manufacturing floors, it delivers reliable performance in a compact, robust package.

• Oil removal rate: 8 L/h tramp oil removal helps maintain coolant quality and extend tool life.
• Belt width and circumference: 100 mm belt width with an 800 mm belt circumference for continuous skimming.
• Drop and mounting range: 380 mm drop with a 360-degree foot for flexible installation and optimal belt positioning.
• Main body dimensions: 255 mm (L) × 90 mm (W) × 90 mm (H) for a compact footprint on crowded benches.
• Fully extended footprint: 255 mm × 90 mm × (100–350) mm when extended, allowing tailored reach within your setup.
• Motor and drive: 12 V DC powered high-torque gearbox motor for steady, reliable skimming.
• Electrical specs: Rated voltage 12 VDC; current ~4 A; power around 50 W for solid performance with low energy use.
• No-load and torque: No-load speed 10 RPM; stall torque 15 kg/cm for capable startup and consistent operation under load.
• Construction: Wear-resistant metal gear train delivers long service life and durable performance in busy workshop environments.
• Weight: Approximately 10 kg, providing stability without excessive bulk.
• Compatibility and purpose: Specifically designed for the S100 CNC oil skimmer system to efficiently remove tramp oil from machining coolant.

This belt kit addresses a common machining challenge: keeping cutting fluids clean while reducing downtime and maintenance costs. With its compact design, robust gear train, and clear performance specs, it’s well-suited for CNC milling centers, turning lathes, and other metalworking machines that depend on reliable oil separation. Install once, then rely on steady, low-noise operation that supports continuous production and better coolant longevity. Practical use cases include routine coolant maintenance in high-output shops, retrofitting older skimmer setups, and installations where space is at a premium but dependable oil removal is required.
