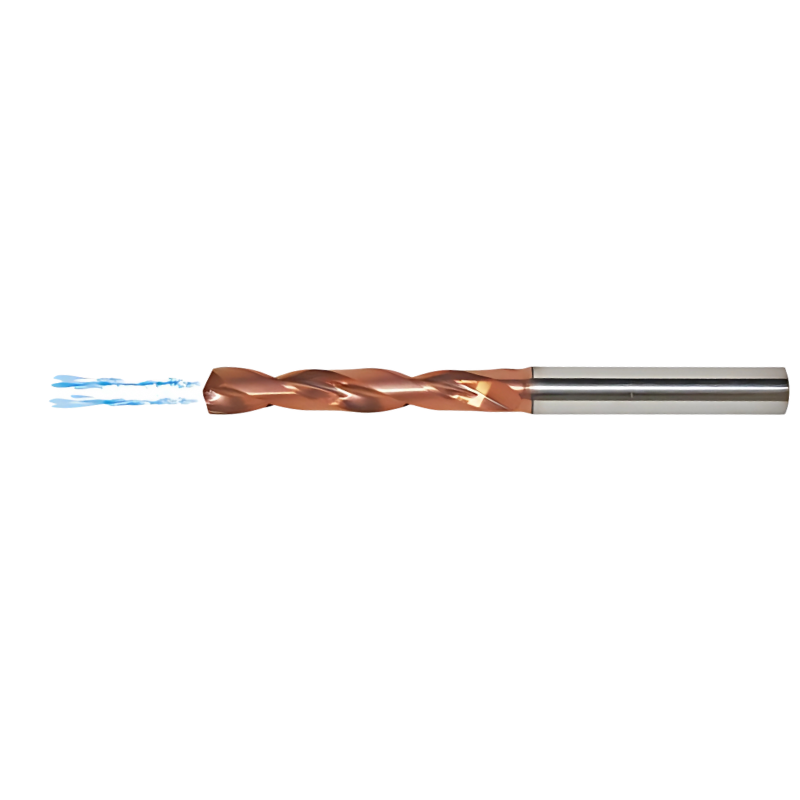

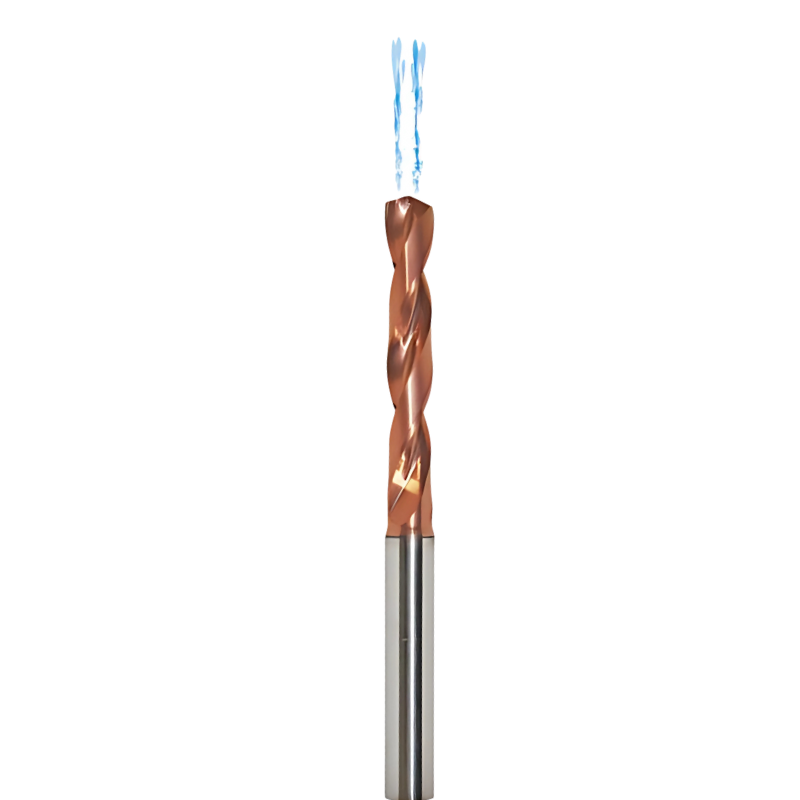

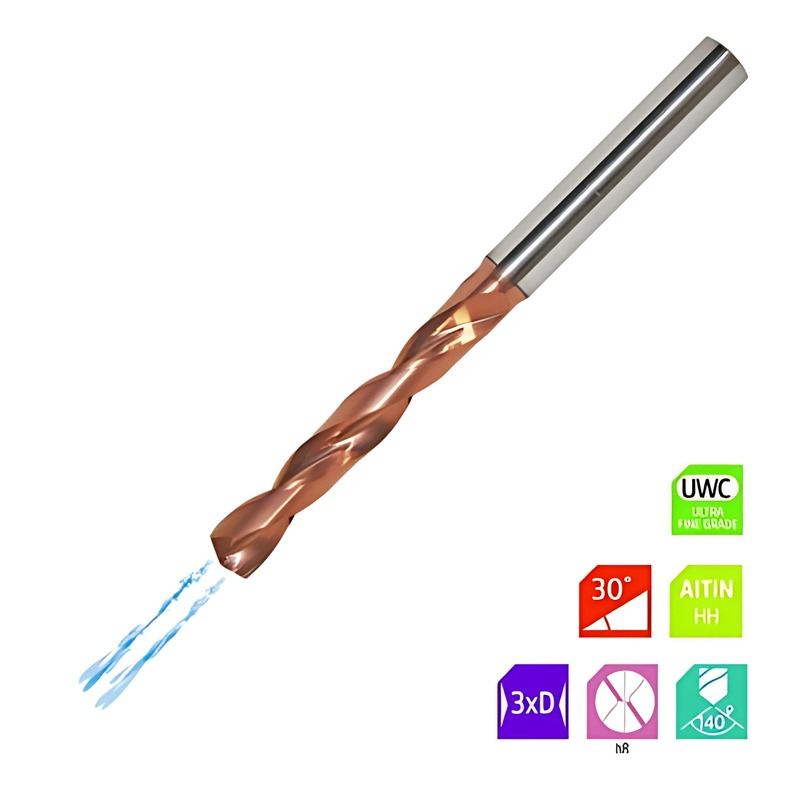

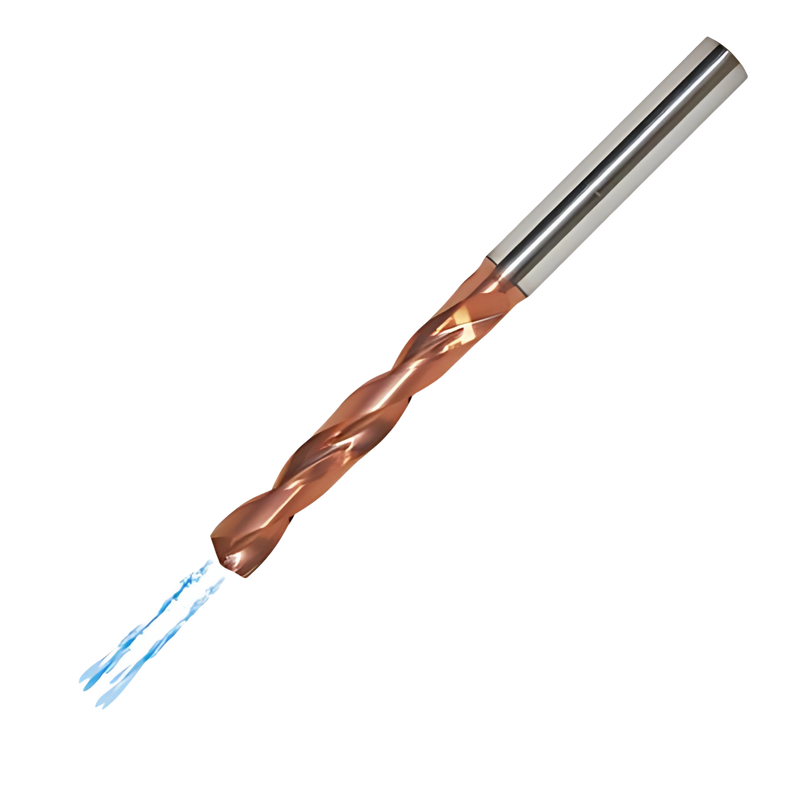

Widin Carbide Drills Through Coolant 5xD AlTiN Coated - 7.9mm
SKU:SF505079
Widin Carbide Drills Through Coolant 5xD AlTiN Coated - 7.9mm diameter are solid carbide drills designed for durability and long tool life. The through-coolant design ensures efficient chip evacua...
Read more ↓
Material Compatibility
P
M
K
N
S
Specification
Download Cutting Data
| Drill Diameter | 7.90 |
| Flute Length | 52 |
| Overall Length | 103 |
| Shank Diameter | 8 |
| Coated | Coated |
| Coolant | YES |
£76.90
Prices shown ex. VAT
In Stock— only 2 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Widin Carbide Drills Through Coolant 5xD AlTiN Coated - 7.9mm diameter are solid carbide drills designed for durability and long tool life. The through-coolant design ensures efficient chip evacuation and cooling, helping you maintain productive speeds and avoid overheating. The 5xD length provides depth for deeper holes, while the AlTiN coating boosts wear resistance and reduces friction for longer life and higher cutting speeds.
- Through-Coolant Design: Efficient chip evacuation and cooling reduce heat buildup, helping maintain precision and stability during deeper hole drilling.
- AlTiN Coating for Wear Resistance: Increases wear resistance and lowers friction, enabling higher cutting speeds and extended tool life in demanding materials.
- 5xD Deep-Hole Capability: Longer flute length supports deeper holes while preserving rigidity and dimensional accuracy for consistent results.
Using this drill set delivers reliable, repeatable holes with fewer tool changes and faster cycle times. The combination of solid carbide core, AlTiN coating, and through-coolant performance provides steady, high-quality results across a range of drilling applications, helping you complete projects with confidence.
| Drill Diameter | 7.90 |
| Flute Length | 52 |
| Overall Length | 103 |
| Shank Diameter | 8 |
| Coated | Coated |
| Coolant | YES |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Widin Solid Carbide Drills - 5xD AlTiN Coated - With Through Coolant (SF505)
View full collection →You are viewing SF505079. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| SF505031 | 3.10 | 27 | 74 | 4 | Coated | YES | £40.30 | In Stock | |
| SF505032 | 3.20 | 27 | 74 | 4 | Coated | YES | £40.30 | 5 days | |
| SF505033 | 3.30 | 27 | 74 | 4 | Coated | YES | £40.30 | 5 days | |
| SF505034 | 3.40 | 30 | 74 | 4 | Coated | YES | £40.30 | In Stock | |
| SF505035 | 3.50 | 30 | 74 | 4 | Coated | YES | £40.30 | In Stock | |
| SF505036 | 3.60 | 30 | 74 | 4 | Coated | YES | £40.30 | In Stock | |
| SF505037 | 3.70 | 30 | 74 | 4 | Coated | YES | £40.30 | In Stock | |
| SF505038 | 3.80 | 33 | 74 | 4 | Coated | YES | £40.30 | In Stock | |
| SF505039 | 3.90 | 33 | 74 | 4 | Coated | YES | £40.30 | 5 days | |
| SF505040 | 4.00 | 33 | 74 | 4 | Coated | YES | £40.30 | In Stock | |
| SF505041 | 4.10 | 33 | 80 | 5 | Coated | YES | £42.99 | 5 days | |
| SF505042 | 4.20 | 33 | 80 | 5 | Coated | YES | £42.99 | In Stock | |
| SF505043 | 4.30 | 36 | 80 | 5 | Coated | YES | £42.99 | In Stock | |
| SF505044 | 4.40 | 36 | 80 | 5 | Coated | YES | £42.99 | 5 days | |
| SF505045 | 4.50 | 36 | 80 | 5 | Coated | YES | £42.99 | 5 days | |
| SF505046 | 4.60 | 36 | 80 | 5 | Coated | YES | £42.99 | 5 days | |
| SF505047 | 4.70 | 36 | 80 | 5 | Coated | YES | £42.99 | 5 days | |
| SF505048 | 4.80 | 39 | 80 | 5 | Coated | YES | £42.99 | In Stock | |
| SF505049 | 4.90 | 39 | 80 | 5 | Coated | YES | £42.99 | In Stock | |
| SF505050 | 5.00 | 39 | 80 | 5 | Coated | YES | £42.99 | In Stock | |
| SF505051 | 5.10 | 39 | 87 | 6 | Coated | YES | £49.46 | 5 days | |
| SF505052 | 5.20 | 39 | 87 | 6 | Coated | YES | £49.46 | In Stock | |
| SF505053 | 5.30 | 39 | 87 | 6 | Coated | YES | £49.46 | In Stock | |
| SF505054 | 5.40 | 43 | 87 | 6 | Coated | YES | £49.46 | In Stock | |
| SF505055 | 5.50 | 43 | 87 | 6 | Coated | YES | £49.46 | In Stock | |
| SF505056 | 5.60 | 43 | 87 | 6 | Coated | YES | £49.46 | In Stock | |
| SF505057 | 5.70 | 43 | 87 | 6 | Coated | YES | £49.46 | In Stock | |
| SF505058 | 5.80 | 43 | 87 | 6 | Coated | YES | £49.46 | In Stock | |
| SF505059 | 5.90 | 43 | 87 | 6 | Coated | YES | £49.46 | In Stock | |
| SF505060 | 6.00 | 43 | 87 | 6 | Coated | YES | £49.46 | 5 days | |
| SF505061 | 6.10 | 47 | 95 | 7 | Coated | YES | £65.25 | 5 days | |
| SF505062 | 6.20 | 47 | 95 | 7 | Coated | YES | £65.25 | In Stock | |
| SF505063 | 6.30 | 47 | 95 | 7 | Coated | YES | £65.25 | In Stock | |
| SF505064 | 6.40 | 47 | 95 | 7 | Coated | YES | £65.25 | In Stock | |
| SF505065 | 6.50 | 47 | 95 | 7 | Coated | YES | £65.25 | In Stock | |
| SF505066 | 6.60 | 47 | 95 | 7 | Coated | YES | £65.25 | In Stock | |
| SF505067 | 6.70 | 47 | 95 | 7 | Coated | YES | £65.25 | In Stock | |
| SF505068 | 6.80 | 47 | 95 | 7 | Coated | YES | £65.25 | 5 days | |
| SF505069 | 6.90 | 47 | 95 | 7 | Coated | YES | £65.25 | In Stock | |
| SF505070 | 7.00 | 47 | 95 | 7 | Coated | YES | £65.25 | 5 days | |
| SF505071 | 7.10 | 52 | 103 | 8 | Coated | YES | £76.90 | 5 days | |
| SF505072 | 7.20 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505073 | 7.30 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505074 | 7.40 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505075 | 7.50 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505076 | 7.60 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505077 | 7.70 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505078 | 7.80 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505079 Viewing | 7.90 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505080 | 8.00 | 52 | 103 | 8 | Coated | YES | £76.90 | In Stock | |
| SF505081 | 8.10 | 56 | 105 | 9 | Coated | YES | £98.01 | 5 days | |
| SF505082 | 8.20 | 56 | 105 | 9 | Coated | YES | £98.01 | In Stock | |
| SF505083 | 8.30 | 56 | 105 | 9 | Coated | YES | £98.01 | In Stock | |
| SF505084 | 8.40 | 56 | 105 | 9 | Coated | YES | £98.01 | In Stock | |
| SF505085 | 8.50 | 56 | 105 | 9 | Coated | YES | £98.01 | In Stock | |
| SF505086 | 8.60 | 56 | 105 | 9 | Coated | YES | £98.01 | In Stock | |
| SF505087 | 8.70 | 56 | 105 | 9 | Coated | YES | £98.01 | In Stock | |
| SF505088 | 8.80 | 56 | 105 | 9 | Coated | YES | £98.01 | 5 days | |
| SF505089 | 8.90 | 56 | 105 | 9 | Coated | YES | £98.01 | In Stock | |
| SF505090 | 9.00 | 56 | 105 | 9 | Coated | YES | £98.01 | In Stock | |
| SF505091 | 9.10 | 62 | 108 | 10 | Coated | YES | £114.85 | In Stock | |
| SF505092 | 9.20 | 62 | 108 | 10 | Coated | YES | £114.85 | In Stock | |
| SF505093 | 9.30 | 62 | 108 | 10 | Coated | YES | £114.85 | In Stock | |
| SF505094 | 9.40 | 62 | 108 | 10 | Coated | YES | £114.85 | In Stock | |
| SF505095 | 9.50 | 62 | 108 | 10 | Coated | YES | £114.85 | 5 days | |
| SF505096 | 9.60 | 62 | 108 | 10 | Coated | YES | £114.85 | In Stock | |
| SF505097 | 9.70 | 62 | 108 | 10 | Coated | YES | £114.85 | In Stock | |
| SF505098 | 9.80 | 62 | 108 | 10 | Coated | YES | £114.85 | In Stock | |
| SF505099 | 9.90 | 62 | 108 | 10 | Coated | YES | £114.85 | 5 days | |
| SF505100 | 10.00 | 62 | 108 | 10 | Coated | YES | £114.85 | 5 days | |
| SF505101 | 10.10 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505102 | 10.20 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505103 | 10.30 | 68 | 125 | 11 | Coated | YES | £169.62 | 5 days | |
| SF505104 | 10.40 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505105 | 10.50 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505106 | 10.60 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505107 | 10.70 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505108 | 10.80 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505109 | 10.90 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505110 | 11.00 | 68 | 125 | 11 | Coated | YES | £169.62 | In Stock | |
| SF505111 | 11.10 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505112 | 11.20 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505113 | 11.30 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505114 | 11.40 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505115 | 11.50 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505116 | 11.60 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505117 | 11.70 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505118 | 11.80 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505119 | 11.90 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505120 | 12.00 | 71 | 133 | 12 | Coated | YES | £197.88 | In Stock | |
| SF505121 | 12.10 | 75 | 137 | 13 | Coated | YES | £289.80 | In Stock | |
| SF505122 | 12.20 | 75 | 137 | 13 | Coated | YES | £289.80 | In Stock | |
| SF505123 | 12.30 | 75 | 137 | 13 | Coated | YES | £289.80 | In Stock | |
| SF505124 | 12.40 | 75 | 137 | 13 | Coated | YES | £289.80 | In Stock | |
| SF505125 | 12.50 | 75 | 137 | 13 | Coated | YES | £289.80 | 5 days | |
| SF505126 | 12.60 | 75 | 137 | 13 | Coated | YES | £289.80 | In Stock | |
| SF505127 | 12.70 | 75 | 137 | 13 | Coated | YES | £289.80 | 5 days | |
| SF505128 | 12.80 | 75 | 137 | 13 | Coated | YES | £289.80 | In Stock | |
| SF505129 | 12.90 | 75 | 137 | 13 | Coated | YES | £289.80 | In Stock | |
| SF505130 | 13.00 | 75 | 137 | 13 | Coated | YES | £289.80 | In Stock | |
| SF505131 | 13.10 | 80 | 142 | 14 | Coated | YES | £335.08 | In Stock | |
| SF505132 | 13.20 | 80 | 142 | 14 | Coated | YES | £335.08 | 5 days | |
| SF505133 | 13.30 | 80 | 142 | 14 | Coated | YES | £335.08 | In Stock | |
| SF505134 | 13.40 | 80 | 142 | 14 | Coated | YES | £335.08 | In Stock | |
| SF505135 | 13.50 | 80 | 142 | 14 | Coated | YES | £335.08 | 5 days | |
| SF505136 | 13.60 | 80 | 142 | 14 | Coated | YES | £335.08 | 5 days | |
| SF505137 | 13.70 | 80 | 142 | 14 | Coated | YES | £335.08 | 5 days | |
| SF505138 | 13.80 | 80 | 142 | 14 | Coated | YES | £335.08 | In Stock | |
| SF505139 | 13.90 | 80 | 142 | 14 | Coated | YES | £335.08 | 5 days | |
| SF505140 | 14.00 | 80 | 142 | 14 | Coated | YES | £335.08 | 5 days | |
| SF505141 | 14.10 | 83 | 148 | 15 | Coated | YES | £398.48 | 5 days | |
| SF505142 | 14.20 | 83 | 148 | 15 | Coated | YES | £398.48 | 5 days | |
| SF505143 | 14.30 | 83 | 148 | 15 | Coated | YES | £398.48 | 5 days | |
| SF505144 | 14.40 | 83 | 148 | 15 | Coated | YES | £398.48 | 5 days | |
| SF505145 | 14.50 | 83 | 148 | 15 | Coated | YES | £398.48 | In Stock | |
| SF505146 | 14.60 | 83 | 148 | 15 | Coated | YES | £398.48 | 5 days | |
| SF505147 | 14.70 | 83 | 148 | 15 | Coated | YES | £398.48 | 5 days | |
| SF505148 | 14.80 | 83 | 148 | 15 | Coated | YES | £398.48 | 5 days | |
| SF505149 | 14.90 | 83 | 148 | 15 | Coated | YES | £398.48 | 5 days | |
| SF505150 | 15.00 | 83 | 148 | 15 | Coated | YES | £398.48 | In Stock | |
| SF505151 | 15.10 | 90 | 152 | 16 | Coated | YES | £427.46 | 5 days | |
| SF505152 | 15.20 | 90 | 152 | 16 | Coated | YES | £427.46 | 5 days | |
| SF505154 | 15.40 | 90 | 152 | 16 | Coated | YES | £427.46 | 5 days | |
| SF505155 | 15.50 | 90 | 152 | 16 | Coated | YES | £427.46 | 5 days | |
| SF505156 | 15.60 | 90 | 152 | 16 | Coated | YES | £427.46 | 5 days | |
| SF505157 | 15.70 | 90 | 152 | 16 | Coated | YES | £427.46 | 5 days | |
| SF505158 | 15.80 | 90 | 152 | 16 | Coated | YES | £427.46 | 5 days | |
| SF505160 | 16.00 | 90 | 152 | 16 | Coated | YES | £427.46 | 5 days | |
| SF505161 | 16.10 | 95 | 155 | 17 | Coated | YES | £492.20 | 5 days | |
| SF505163 | 16.30 | 95 | 155 | 17 | Coated | YES | £492.20 | 5 days | |
| SF505165 | 16.50 | 95 | 155 | 17 | Coated | YES | £492.20 | In Stock | |
| SF505170 | 17.00 | 95 | 155 | 17 | Coated | YES | £492.20 | In Stock | |
| SF505171 | 17.10 | 100 | 157 | 18 | Coated | YES | £541.42 | 5 days | |
| SF505172 | 17.20 | 100 | 157 | 18 | Coated | YES | £541.42 | 5 days | |
| SF505175 | 17.50 | 100 | 157 | 18 | Coated | YES | £541.42 | In Stock | |
| SF505177 | 17.70 | 100 | 157 | 18 | Coated | YES | £541.42 | 5 days | |
| SF505178 | 17.80 | 100 | 157 | 18 | Coated | YES | £541.42 | 5 days | |
| SF505180 | 18.00 | 100 | 157 | 18 | Coated | YES | £541.42 | In Stock | |
| SF505181 | 18.10 | 105 | 160 | 19 | Coated | YES | £590.63 | 5 days | |
| SF505182 | 18.20 | 105 | 160 | 19 | Coated | YES | £590.63 | 5 days | |
| SF505185 | 18.50 | 105 | 160 | 19 | Coated | YES | £590.63 | In Stock | |
| SF505190 | 19.00 | 105 | 160 | 19 | Coated | YES | £590.63 | In Stock | |
| SF505191 | 19.10 | 110 | 163 | 20 | Coated | YES | £630.00 | 5 days | |
| SF505195 | 19.50 | 110 | 163 | 20 | Coated | YES | £630.00 | In Stock | |
| SF505197 | 19.70 | 110 | 163 | 20 | Coated | YES | £630.00 | 5 days | |
| SF505200 | 20.00 | 110 | 163 | 20 | Coated | YES | £630.00 | In Stock |
No products match your filters.
