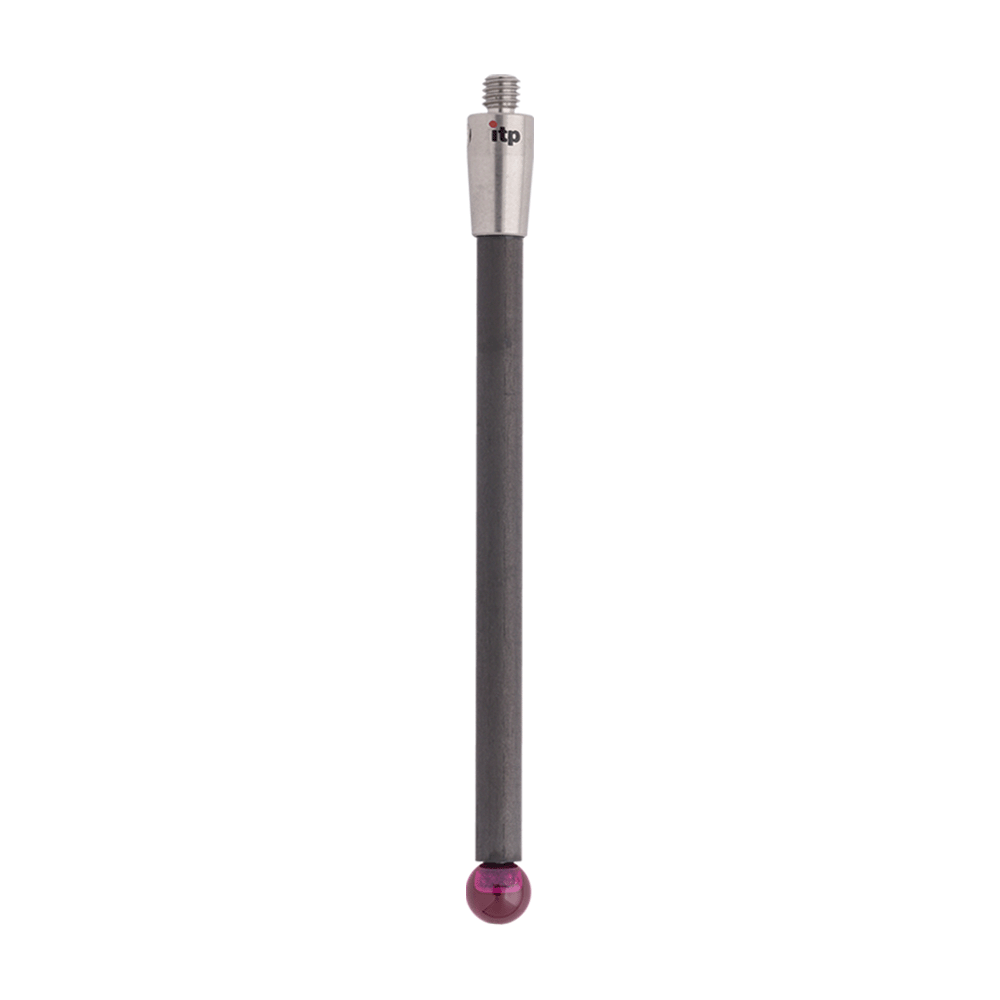

ITP Straight Styli - Type A - Ruby Ball - M3 XXT Thread x 50mm Overall Length - TCM306005050

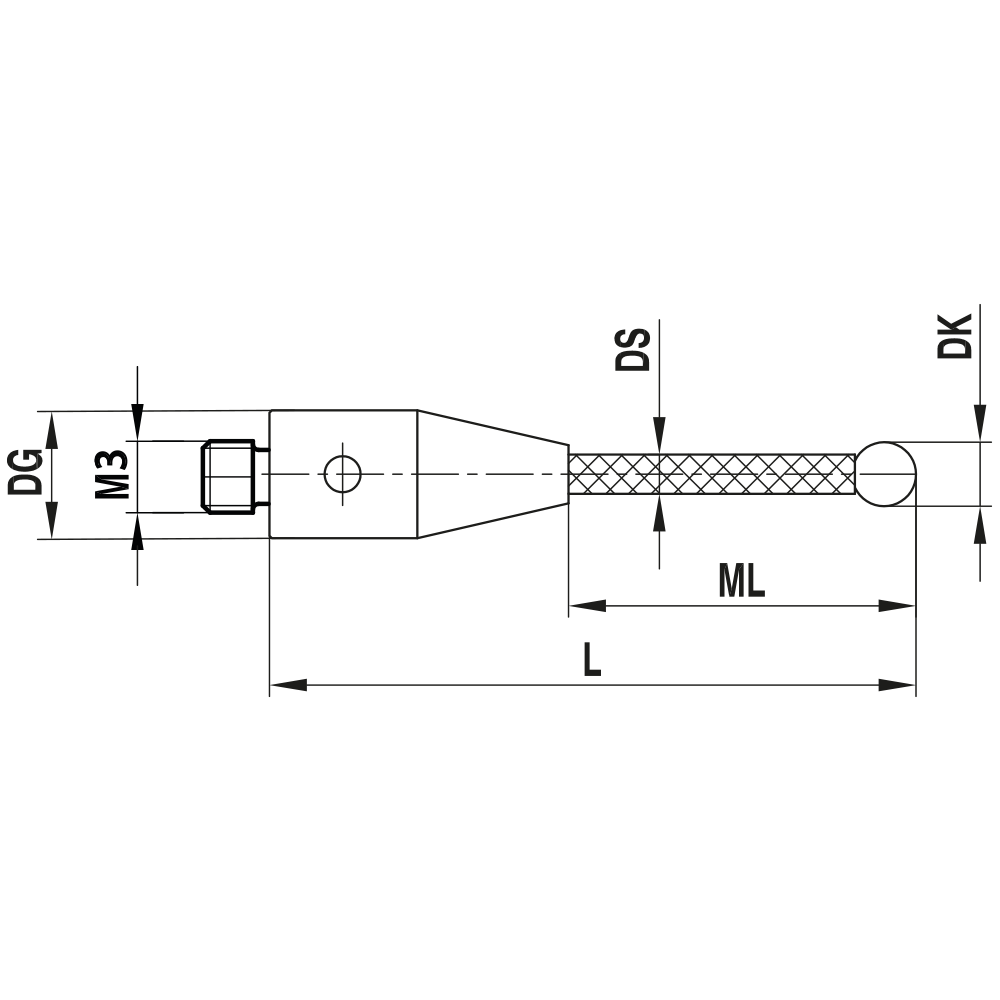

| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 50 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 41 |
Learn more about Klarna
A precision straight stylus designed for long-reach probing in CMM workflows, built for engineers who need rigidity without added weight. This Type A Ruby Ball version pairs a carbon fiber stem with a robust ruby ball tip for reliable, repeatable measurements in tight or recessed areas.
- Thread: M3 XXT thread compatibility with standard probe interfaces
- Overall length: 50 mm for extended reach in challenging inspection locations
- Stem material: Carbon fibre for low weight and high rigidity, reducing deflection during contact
- Tip material: Ruby ball available in sizes from Ø3.0 mm to Ø12.0 mm for precise contact geometry
- Design: Straight stylus engineered to minimize deflection and maximize measurement stability
- Customization: Other dimensions can be requested via the configurator or by e-mail
This combination delivers stable, accurate contact even in restricted spaces, improving repeatability across measurements. The lightweight carbon fiber stem reduces inertia for quicker probing cycles, while the ruby ball offers durable wear resistance and clean, repeatable engagement with diverse workpieces. If you need a different ball size or extended reach, you can request specific dimensions through the configurator or by email to tailor the stylus to your fixture and measurement strategy.
| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 50 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 41 |
| Neck Diameter (DS) | 3.5 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | ruby |
