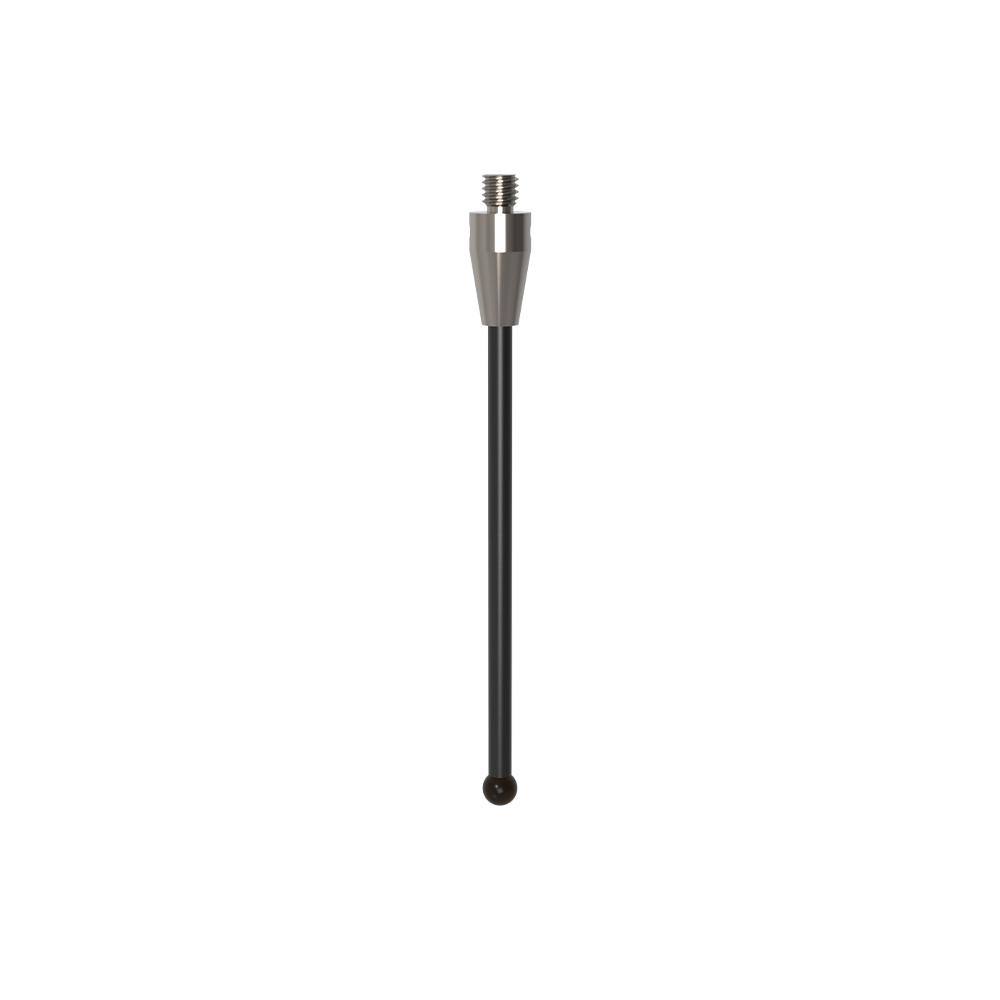

ITP Straight Styli - Type A - Diamond Coated Ball - M3 XXT Thread x 50mm Overall Length - TCM3DC3005050
| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 50 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 41 |
Learn more about Klarna
ITP Straight Styli Type A with a diamond-coated ball offers precise, long‑reach probing for demanding metrology tasks. Designed for technicians and engineers, it combines a lightweight carbon fibre stem with exceptional rigidity and a wear‑resistant ball for reliable accuracy over time.
- Thread: M3 XXT threaded connection for secure, compatible mounting to standard probe heads
- Overall length: 50 mm, providing extended reach to access hard‑to‑reach features
- Stem material: Carbon fibre stem delivering high stiffness with minimal weight to reduce deflection
- Ball material and coating: Diamond-coated silicon carbide ball for outstanding wear resistance and long service life
- Ball sizes: Available in Ø3.0 mm to Ø5.0 mm within this product group
- Custom sizes: Other sizes can be requested via configurator or by email
This stylus is ideal for high-precision inspection, QA checks, and reverse engineering tasks where extended reach and stable contact are crucial. The combination of a rigid carbon fibre stem and a durable diamond coating minimizes probe deflection during measurement, while the versatile 50 mm length helps you access features that shorter styli cannot reach. If your application requires a different ball diameter, sizes from Ø3.0 mm to Ø5.0 mm are available, with additional options accessible through the configurator or by inquiry.

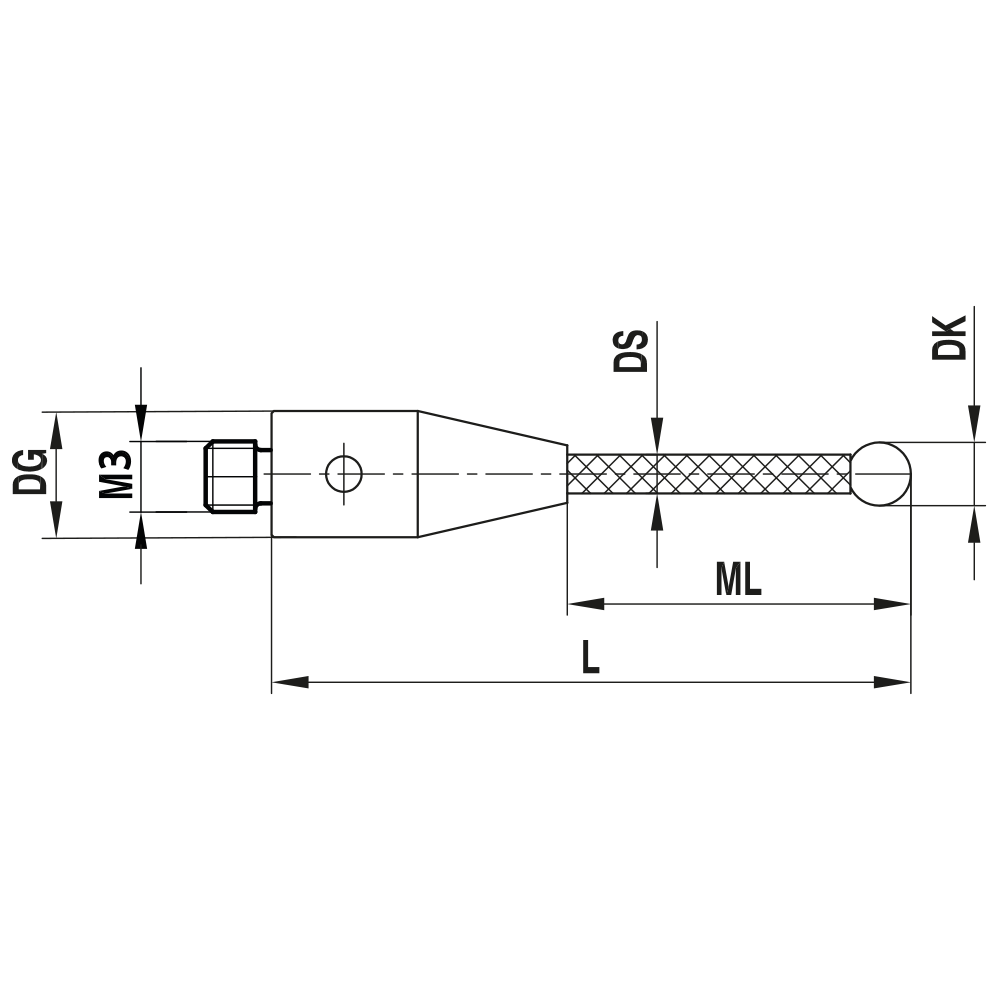

| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 50 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 41 |
| Neck Diameter (DS) | 2 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | diamond coated |
