ITP Straight Styli - Type A - Diamond Coated Ball - M3 XXT Thread x 75mm Overall Length - TCM3DC3005075

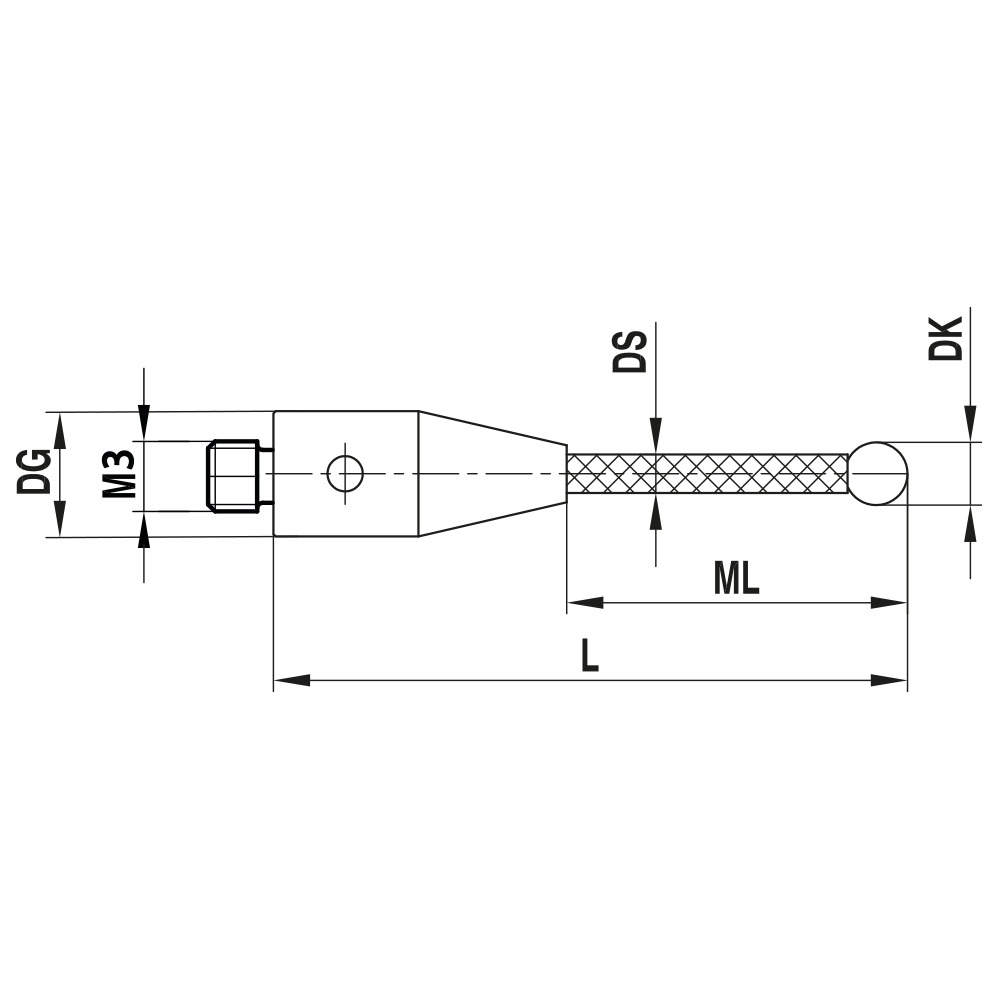

| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 75 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 66 |
Learn more about Klarna

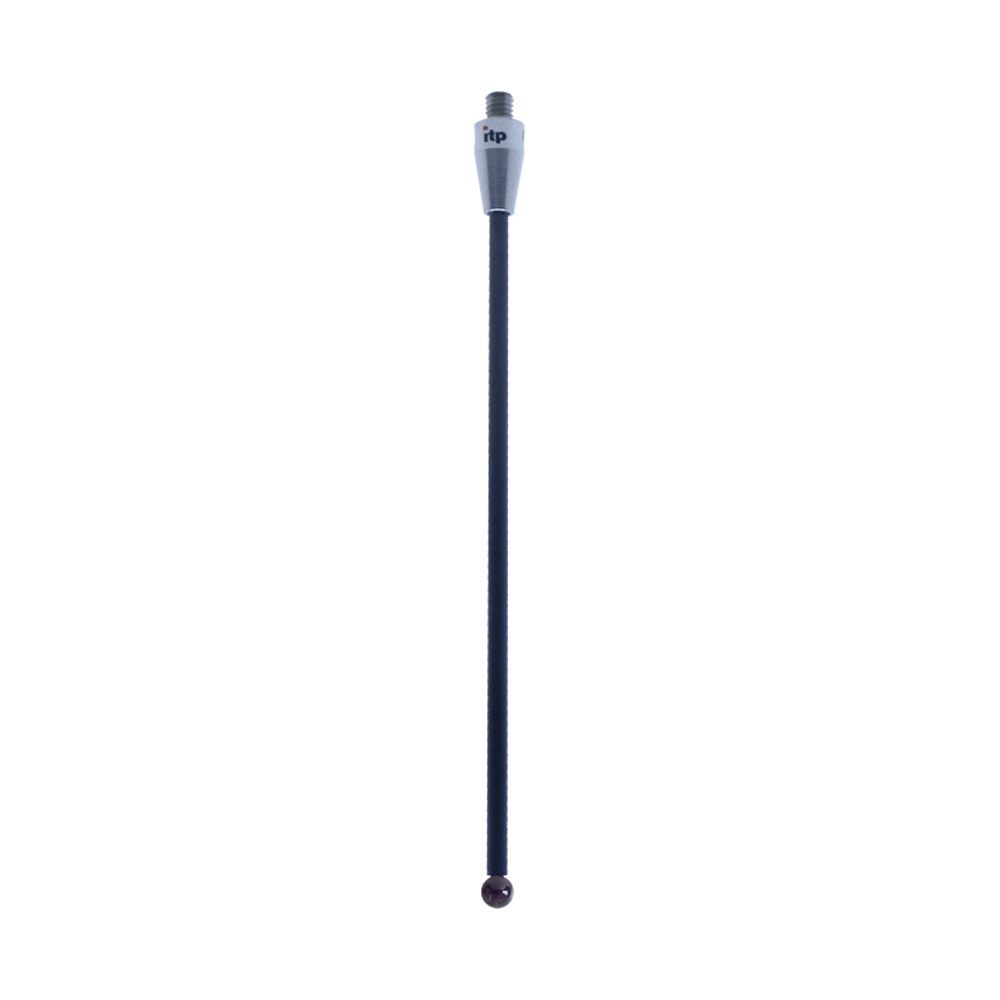

Engineered for precision metrology, the ITP Straight Styli Type A combines a lightweight carbon fibre stem with a diamond-coated ball end for long-reach, high-rigidity probing. It's designed for professionals who need durable, accurate contact in tight or extended measurement setups.
- Thread: M3 XXT
- Overall Length: 75 mm
- Ball Diameter: Ø3.0 mm
- Ball Coating: Diamond-coated silicon carbide for exceptional wear resistance
- Stem Material: Carbon fibre for low weight and high rigidity
- Design: Straight stylus, Type A
- Size availability: Ball sizes in this product group range Ø3.0–Ø5.0 mm; other sizes can be requested via configurator or by email
The diamond-coated silicon carbide ball offers outstanding wear resistance, delivering a long service life even in demanding materials and repeated probing. The carbon fibre stem provides a light, stiff structure that minimizes deflection and enhances measurement repeatability in extended reach applications. With a 75 mm overall length and a secure M3 XXT thread, this stylus is ready for reliable, precise contact in challenging fixtures and deep cavities. Ideal for metrology tasks where consistency, speed, and durability matter, it helps reduce downtime and maintain accurate results across inspections and quality control workflows.
| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 75 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 66 |
| Neck Diameter (DS) | 2 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | diamond coated |
