ITP Straight Styli - Type A - Diamond Coated Ball - M3 XXT Thread x 50mm Overall Length - TCM3DC4005050
| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 4 |
| Overall Length (L) | 50 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 41 |
Learn more about Klarna

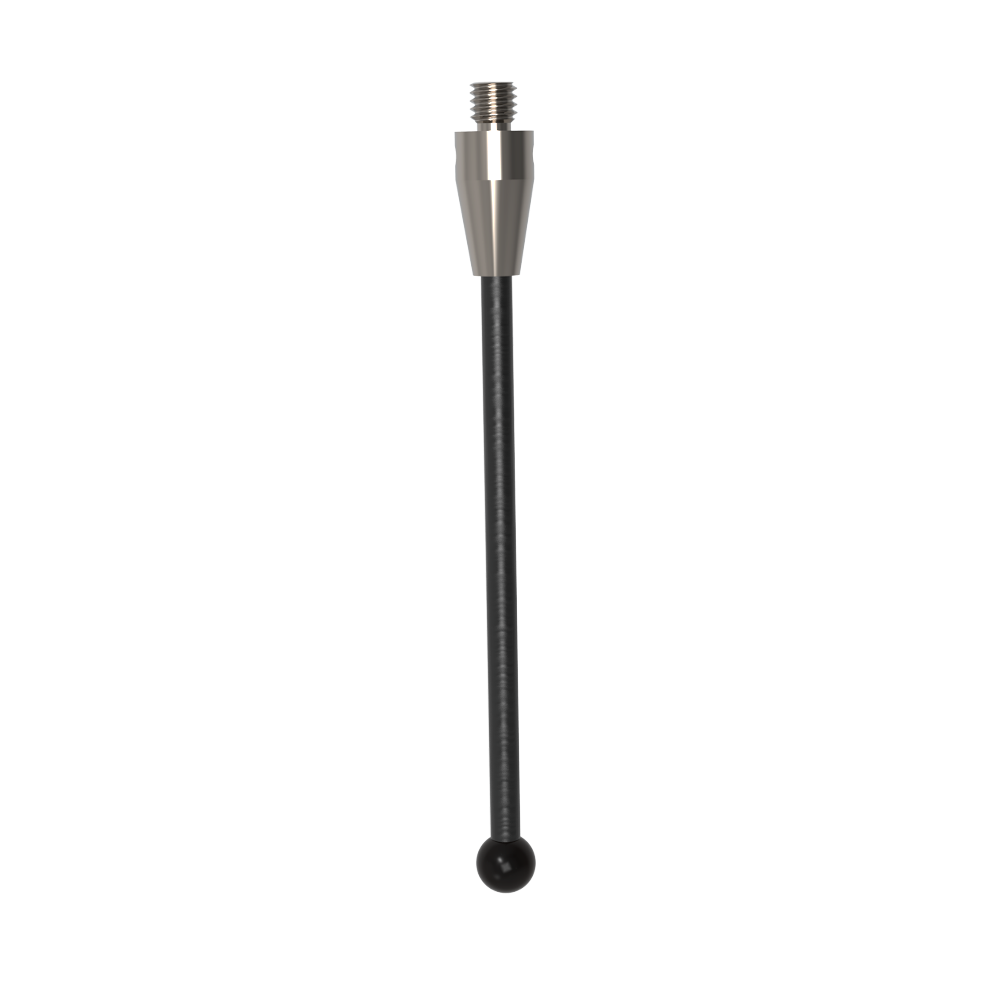

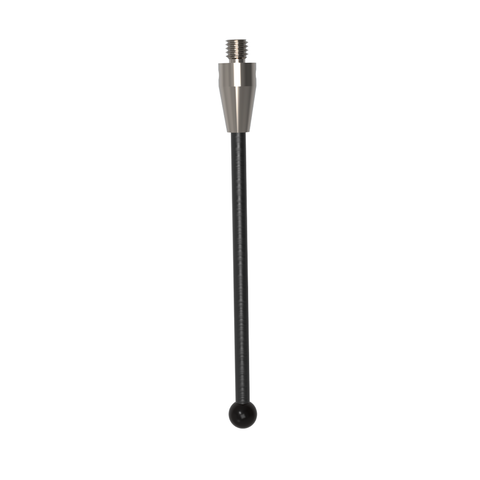

The ITP Straight Styli Type A with a diamond-coated ball is a precision measurement stylus designed for long‑reach probing tasks. It’s ideal for engineers and metrology teams who need rigidity, durability, and consistent accuracy in a lightweight package.
- Ball coating and material: Diamond-coated silicon carbide ball for exceptional wear resistance and extended service life.
- Stem construction: Carbon fibre stem delivers high rigidity with low weight, optimal for styli with extended reach.
- Thread: M3 XXT thread provides secure, compatible attachment to standard probe heads.
- Overall length: 50 mm total length offers additional reach while maintaining precise balance during measurement.
- Ball size options: Available with ball diameters from Ø3.0 mm to Ø5.0 mm within this product family (custom sizes can be requested via the configurator or by email).
- Intended use: Designed for long‑reach measurement tasks requiring minimal deflection and reliable performance over many cycles.
With a lightweight yet stiff carbon fibre stem and a diamond-coated ball, this stylus minimizes deflection under load, reduces wear, and delivers consistent readings in repetitive inspection tasks. The 50 mm reach enables access to tight features while preserving handling feel, making it a dependable choice for quality control in aerospace, automotive, and electronics manufacturing. Secure mounting with the M3 XXT thread and the option to specify ball sizes from Ø3.0 mm to Ø5.0 mm help tailor this stylus to precise measurement needs.

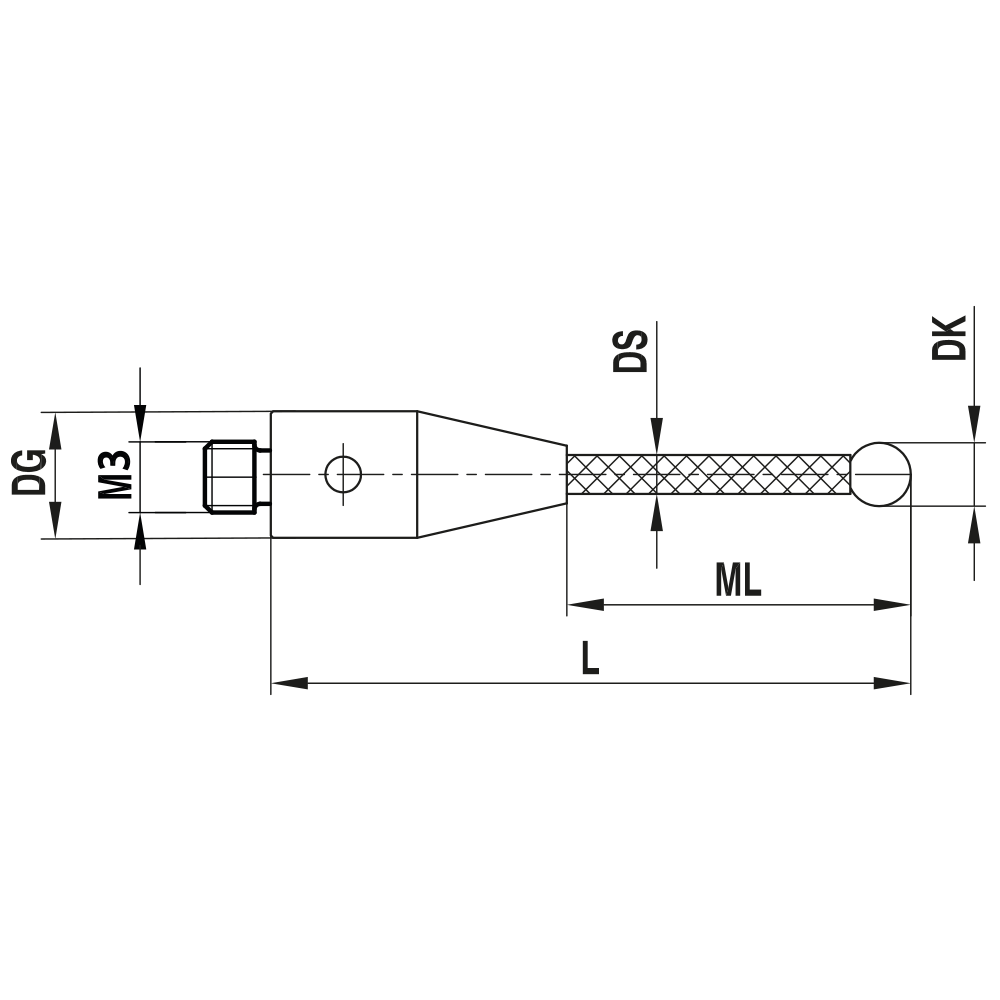

| Styli Type | Type A |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 4 |
| Overall Length (L) | 50 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 41 |
| Neck Diameter (DS) | 2 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | diamond coated |
