ITP Straight Styli - Type J - Silicon Nitride Ball - M3 XXT Thread x 70mm Overall Length - TCM3S8005070/K
| Styli Type | Type J |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 70 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 70 |
Learn more about Klarna

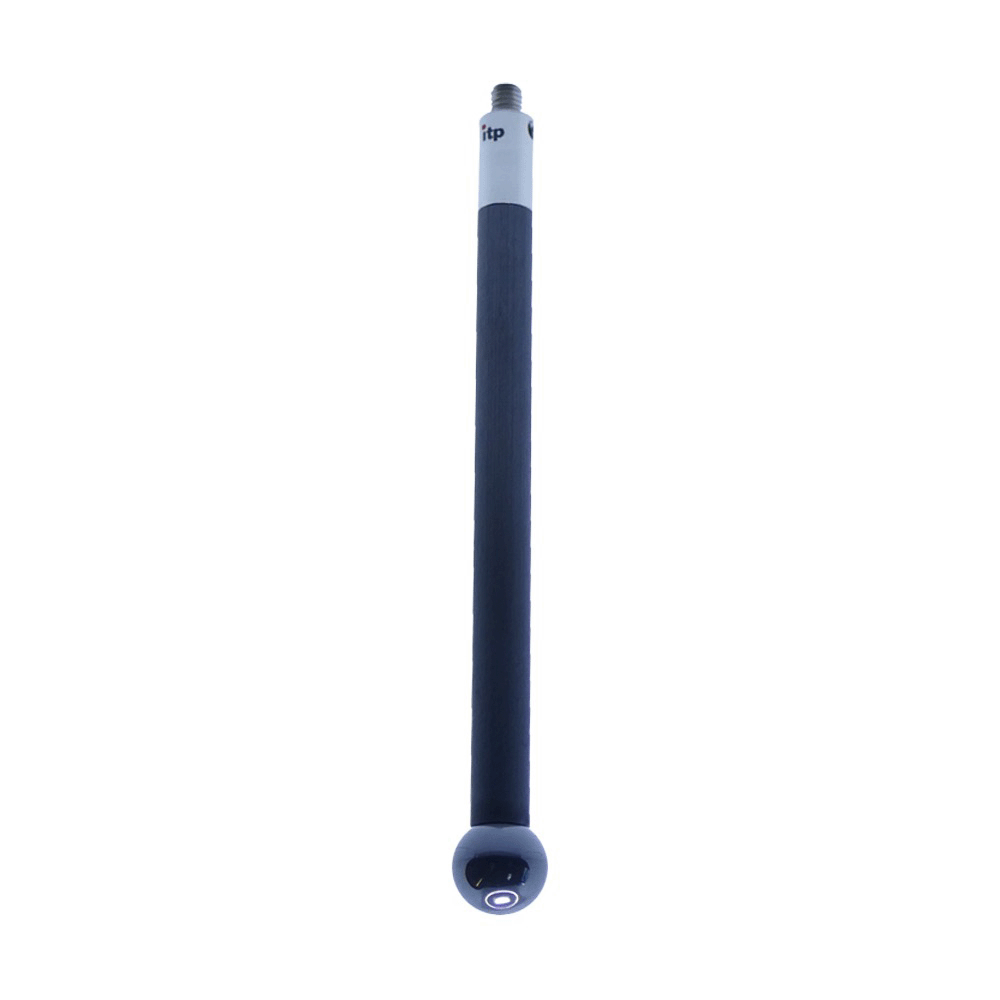

Meet the ITP Straight Styli – Type J, a lightweight yet exceptionally rigid probing stylus designed for precision measurement and long‑reach scanning. Its silicon nitride ball and carbon fibre stem deliver reliable performance on challenging surfaces, including untreated aluminium.
- Thread: M3 XXT thread for secure, compatible mounting with standard probing systems.
- Tip material: Silicon nitride ball for high hardness, wear resistance, and stable contact with tough metals.
- Stem material: Carbon fibre stem offering excellent rigidity with minimal weight to reduce deflection.
- Overall length: 70 mm, providing ample reach for recessed features and deep cavities.
- Special application: Particularly well-suited for scanning untreated aluminium workpieces.
- Customization: Other dimensions can be requested via the configurator or by email.
- Product code: TCM3S8005070/K for easy ordering and reference.
This stylus pairing—low weight with maximum rigidity—helps you achieve stable, repeatable measurements even at extended reaches. The silicon nitride ball is durable against wear when probing harder surfaces like aluminium, while the secure M3 XXT connection ensures straightforward integration into your existing metrology setup. If your application requires a different length or configuration, additional dimensions are available upon request, making this a flexible choice for precise, high‑quality probing workflows.

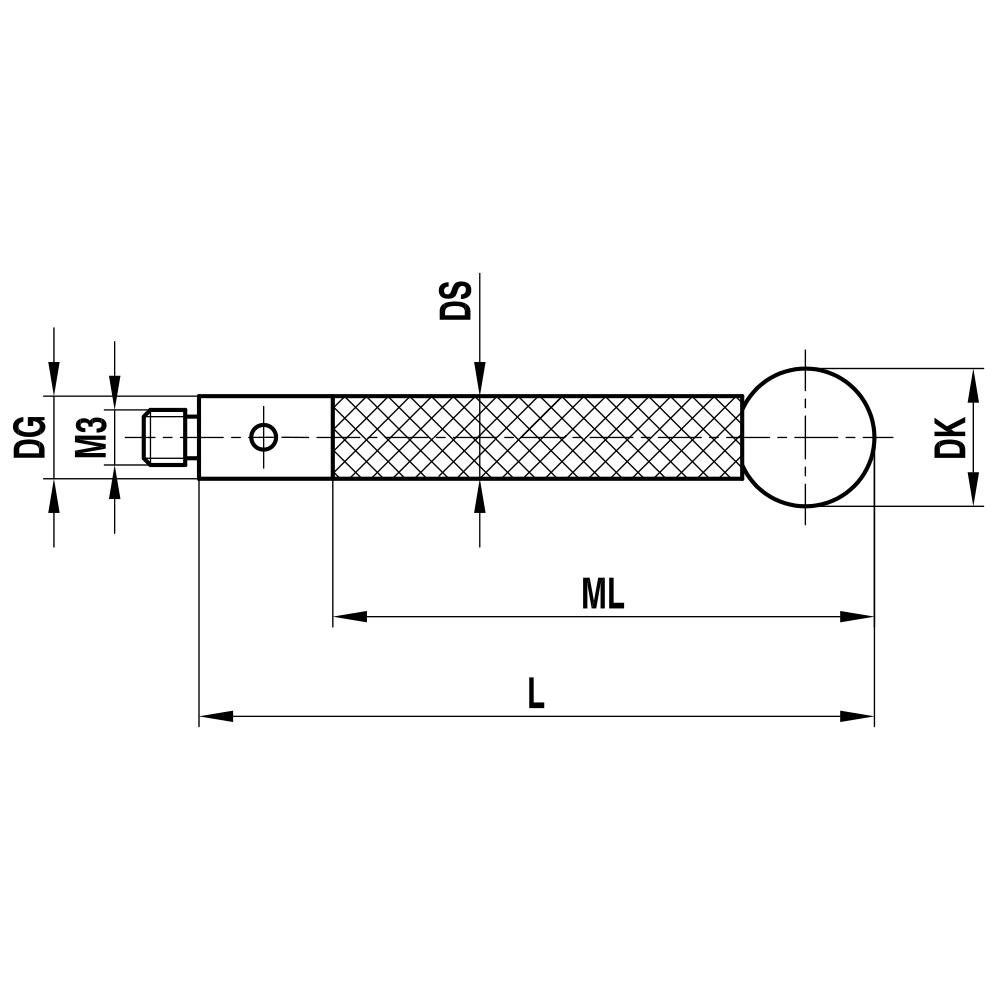

| Styli Type | Type J |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 70 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 70 |
| Neck Diameter (DS) | 5 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
