ITP Straight Styli - Type J - Silicon Nitride Ball - M3 XXT Thread x 125mm Overall Length - TCM3S8005125/K

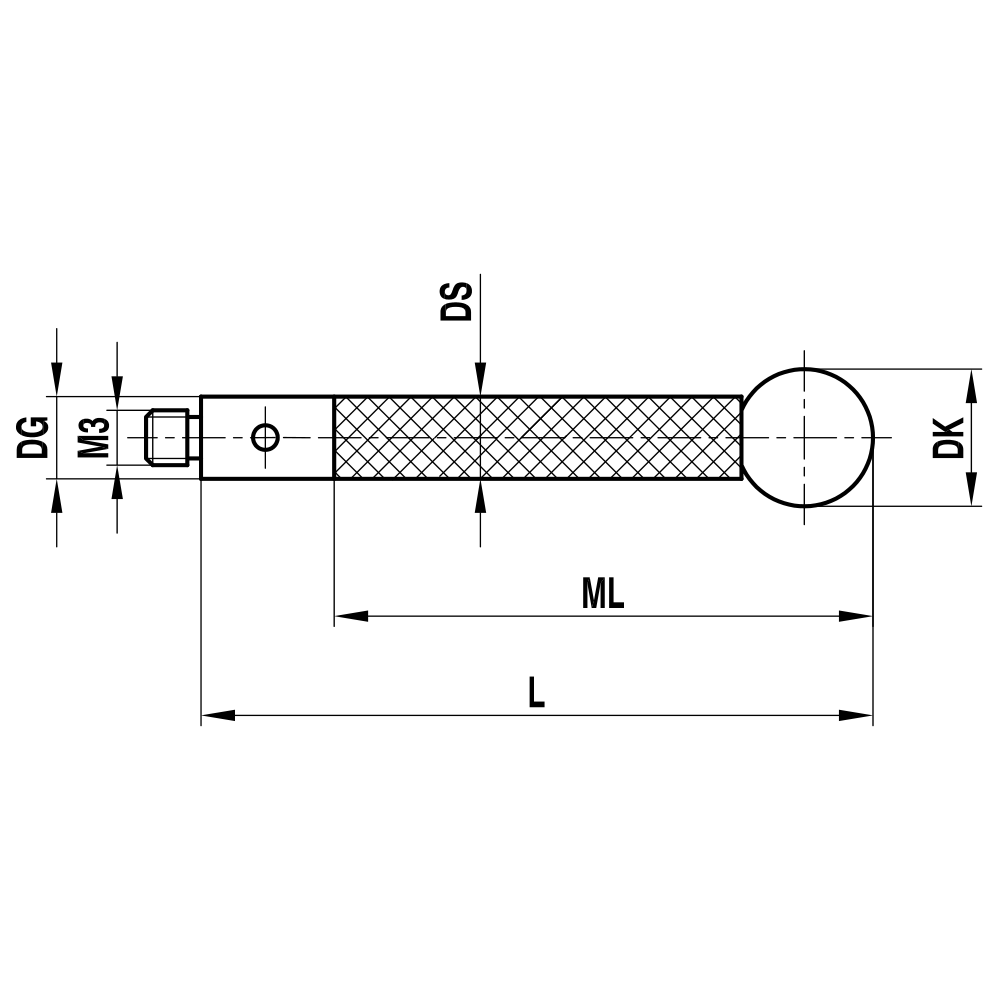

| Styli Type | Type J |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 125 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 125 |
Learn more about Klarna

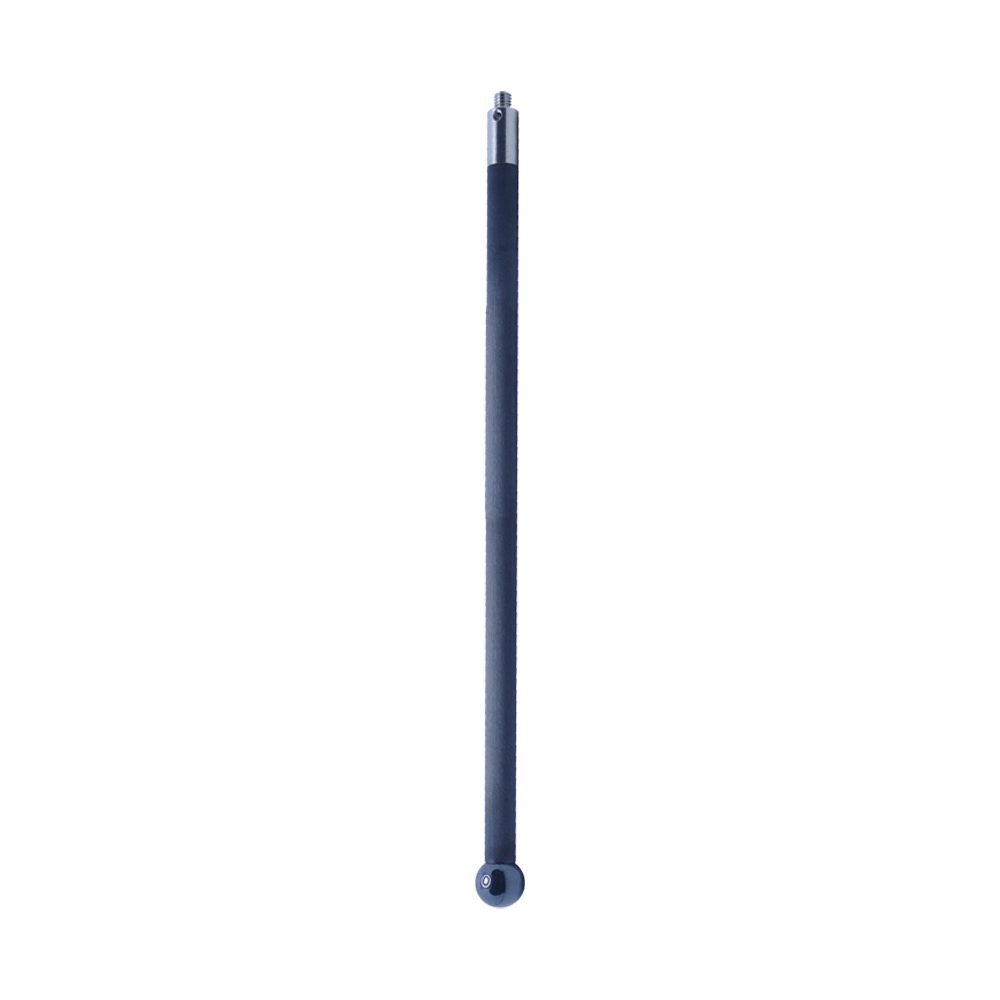

The ITP Straight Styli Type J is a precision probing stylus designed for long-reach CMM scanning, delivering exceptional rigidity without added weight. Crafted for metrology professionals, it combines a carbon fiber stem with a silicon nitride ball to handle challenging surfaces, including untreated aluminum.
- Shape: Straight stylus with 125 mm overall length for direct probing in tight or extended measurement applications.
- Material: Carbon fiber stem delivering high stiffness-to-weight ratio for low inertia and stable contact during scans.
- Ball Material: Silicon nitride ball chosen for wear resistance and precision on a variety of workpiece finishes, especially untreated aluminum.
- Thread: M3 XXT thread compatibility for secure attachment to standard probes and fixtures.
- Customization: Other dimensions can be requested via the configurator or by e-mail to fit unique measurement setups.
Designed for accurate, repeatable data capture, this stylus minimizes deflection during rapid or complex scans and maintains consistent contact with surfaces. The carbon fiber stem keeps weight down for smoother motion, while the silicon nitride ball stands up to repeated probing on aluminum and similar materials. When you need a long-reach, reliable stylus for demanding inspection tasks, the Type J configuration offers a practical and durable solution ready to tailor to your specific measurement scenario.
| Styli Type | Type J |
| Thread Size | M3 XXT |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 125 |
| Shank Diameter (DG) | 5 |
| Measuring Length (ML) | 125 |
| Neck Diameter (DS) | 5 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
