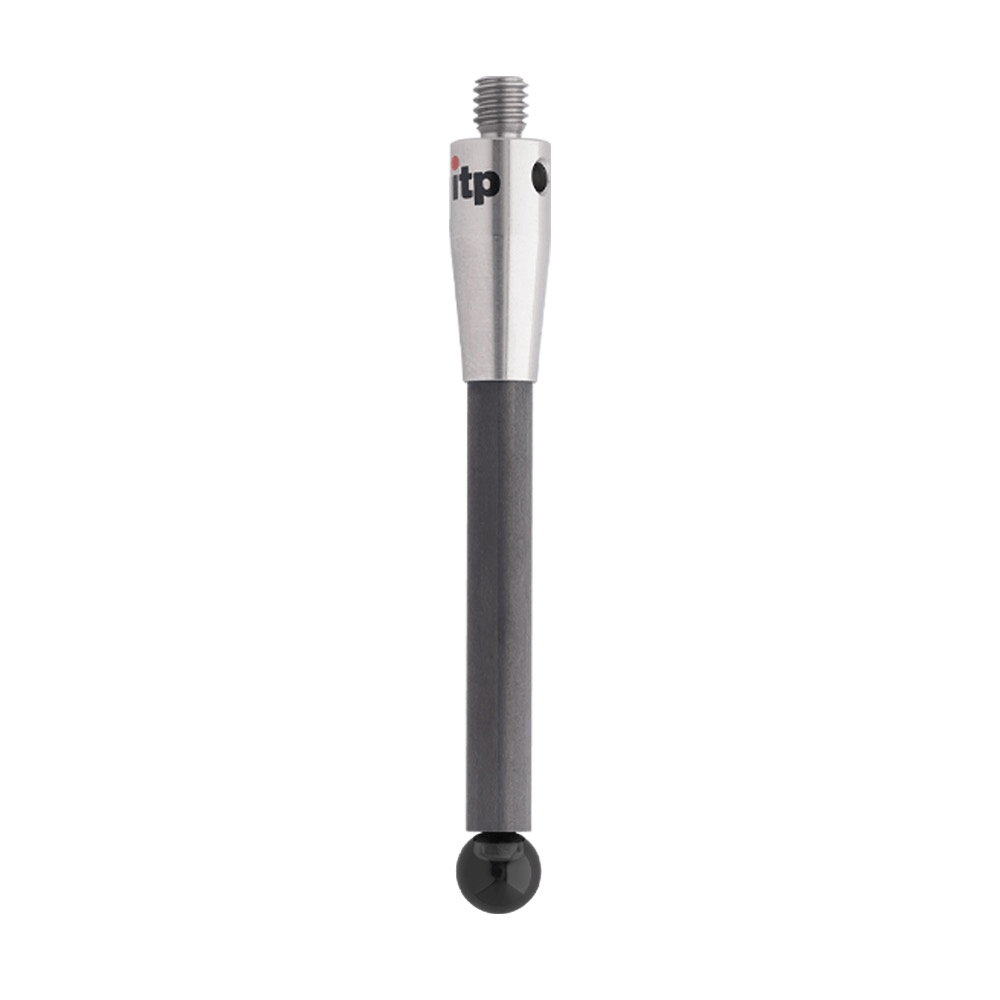

ITP Straight Styli - Type A - Silicon Nitride Ball - M4 Thread x 53mm Overall Length - TCM4S6007053
| Styli Type | Type A |
| Thread Size | M4 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 53 |
| Shank Diameter (DG) | 7 |
| Measuring Length (ML) | 36.5 |
Learn more about Klarna
The ITP Straight Styli Type A with a silicon nitride ball combines featherlight handling with unmatched rigidity, ideal for precise probing on challenging aluminum surfaces. Designed for users who need reliable performance in tight spaces, this stylus delivers consistent contact and minimal deflection during scans.
- Thread size: M4 thread for straightforward mounting on standard probe heads
- Overall length: 53 mm from base to tip to reach recessed features
- Tip material: Silicon nitride ball, chosen for durability and smooth contact on metal surfaces
- Stem material: Carbon fibre stem offering high stiffness with low weight
- Design: Straight stylus (Type A) with a compact, robust profile
- Material compatibility: Specifically well-suited for scanning untreated aluminium workpieces
- Custom options: Other dimensions available on request via configurator or by e-mail
This configuration minimizes mass while maintaining rigidity, helping to reduce measurement noise and improve data accuracy in demanding inspection tasks. The silicon nitride tip withstands repeated probing on aluminum without excessive wear, while the carbon fibre shaft supports precise alignment and long-term stability. If your project requires a different length or diameter, additional dimensions can be requested to tailor the stylus to your setup.

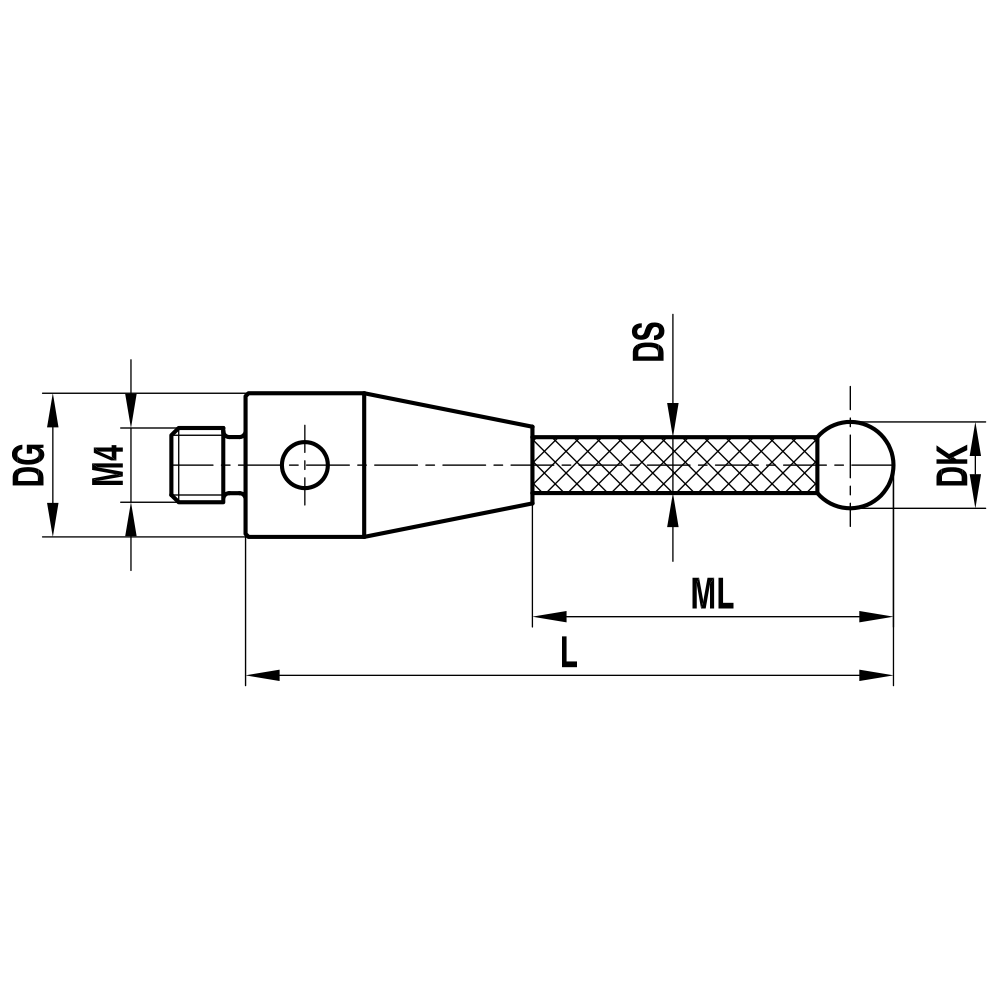

| Styli Type | Type A |
| Thread Size | M4 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 53 |
| Shank Diameter (DG) | 7 |
| Measuring Length (ML) | 36.5 |
| Neck Diameter (DS) | 4.5 |
| Stem Material | carbon fiber |
| Base Material | stainless steel |
| Prob Ball Material | silicon nitride |
