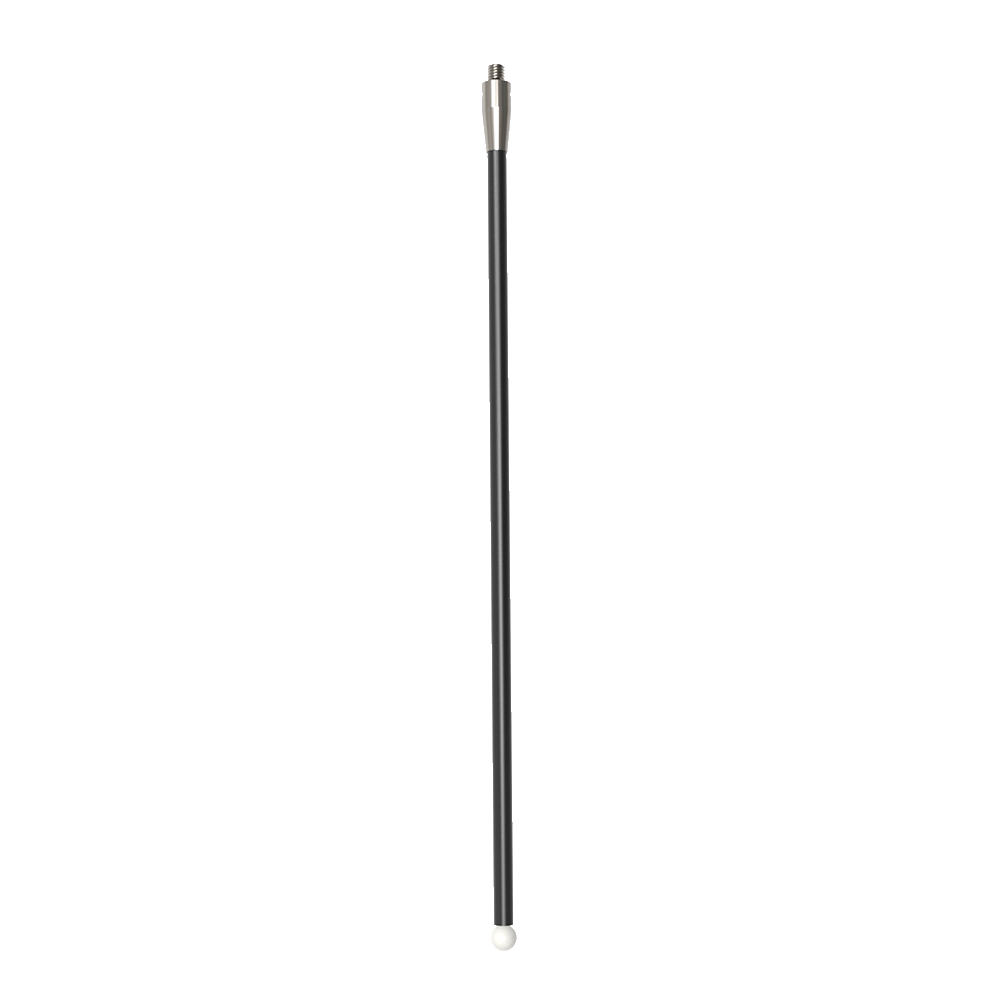

ITP Straight Styli - Type A - Zirconium Oxide Ball - M4 Thread x 203mm Overall Length - TCM4Z6007203
| Styli Type | Type A |
| Thread Size | M4 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 203 |
| Shank Diameter (DG) | 7 |
| Measuring Length (ML) | 186.5 |
Learn more about Klarna
Designed for precision long-reach probing, the ITP Straight Stylus Type A delivers a balance of light weight and exceptional rigidity for CMM measurement tasks. Built for technicians and engineers who work with recessed or hard-to-reach features, it offers reliable contact and stable readings.
- Thread: M4 threading for secure attachment to compatible probes and stylus assemblies.
- Overall length: 203 mm to reach deep cavities and extended geometries without compromising rigidity.
- Stem material: Carbon fiber stem provides a high stiffness-to-weight ratio, minimizing probe deflection during scans.
- Ball material: Zirconia ball chosen for wear resistance on abrasive surfaces and accurate contact geometry.
- Stylus configuration: Straight design ensures direct, stable contact with the workpiece for consistent measurements.
- Ideal application: Especially effective for scanning rough/abrasive materials like cast steel surfaces.
The combination of a low-weight carbon fiber stem and a hard zirconia ball translates into improved measurement stability and longer stylus life. The high rigidity minimizes deflection under probe forces, delivering reproducible results across challenging parts. With its 203 mm reach, you can probe features that would require repositioning or multiple setups, boosting inspection efficiency. The M4 thread enables quick, secure integration into standard probe setups, making it a reliable choice for industrial metrology work on cast steel and other abrasive surfaces.

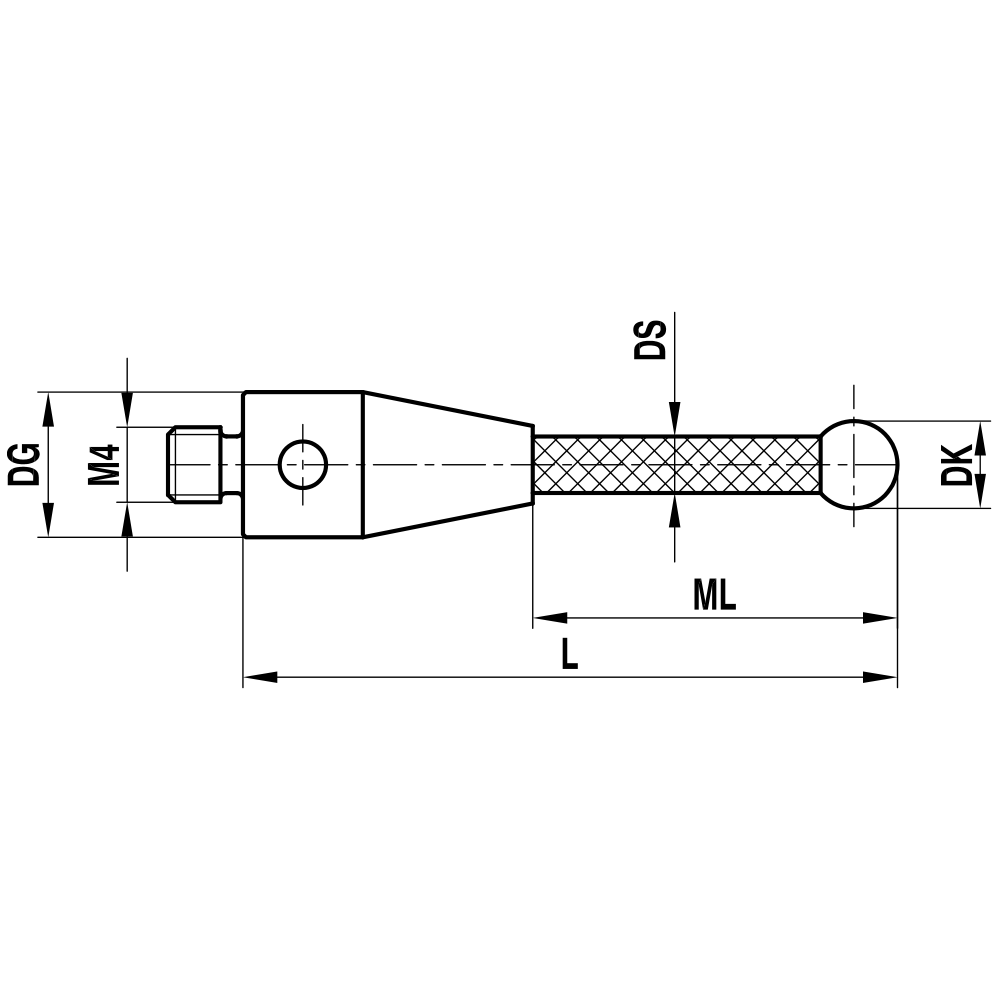

| Styli Type | Type A |
| Thread Size | M4 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 203 |
| Shank Diameter (DG) | 7 |
| Measuring Length (ML) | 186.5 |
| Neck Diameter (DS) | 4.5 |
| Stem Material | carbon fiber |
| Base Material | stainless steel |
| Prob Ball Material | zirconium oxide |
