ITP Straight Styli - Type A - Ruby Ball - M5 Thread x 102.5mm Overall Length - TCM505050102
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 102.5 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 52.5 |
Learn more about Klarna

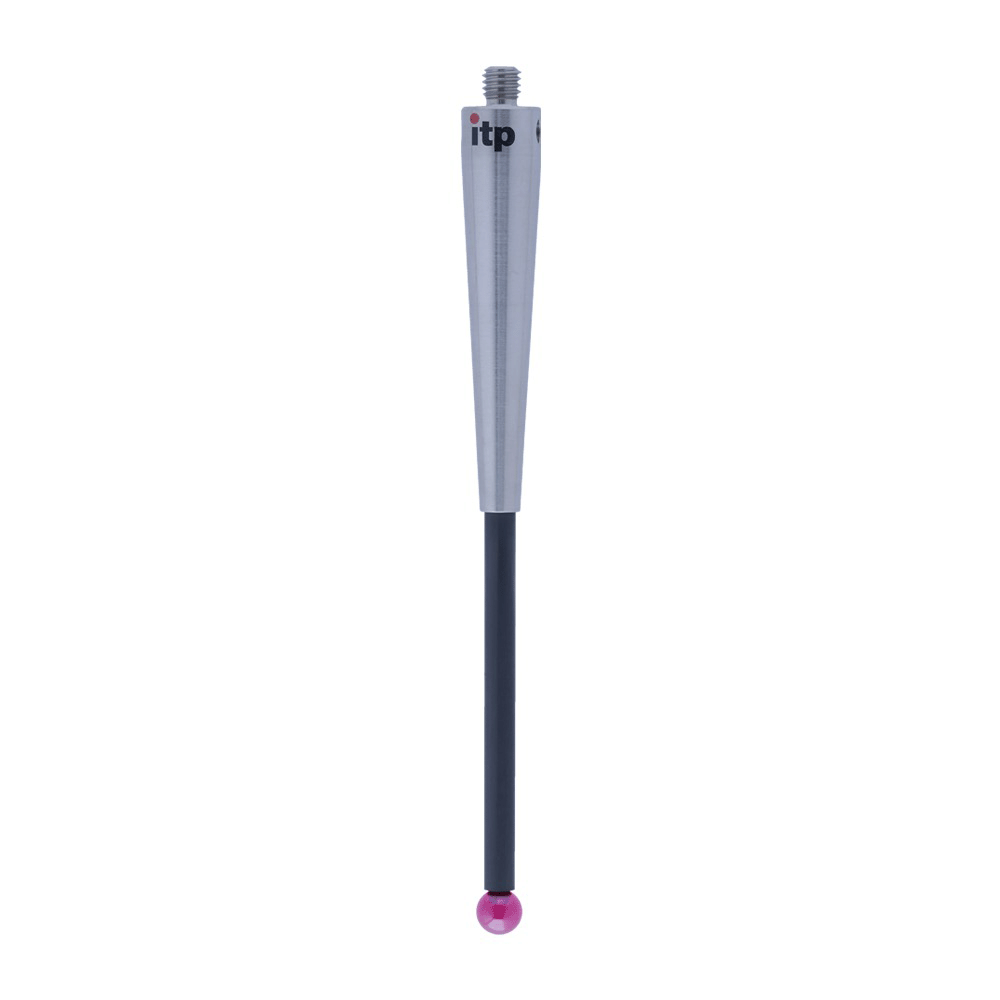

The ITP Straight Stylus - Type A with Ruby Ball is a precision probing accessory built for metrology professionals who need extended reach without sacrificing rigidity. Its carbon fiber stem delivers a lightweight, ultra-stiff performance for long-length probing tasks.
- Type: Straight stylus (Type A) designed for direct, linear probing and consistent contact.
- Overall length: 102.5 mm total length to maximize reach in tight or recessed measurement scenarios.
- Thread: M5 threaded interface for broad compatibility with standard probe heads and adapters.
- Material: Carbon fiber stem providing low weight and exceptional rigidity for minimal deflection during measurement.
- Ruby ball: High-quality ruby contact ball available in diameters from Ø3.0 mm to Ø12.0 mm for durable, repeatable contact.
- Customization: Other dimensions can be requested via the configurator or by e-mail to fit specific setups.
Designed for long-stroke CMM tasks and fixtures with deep features, this stylus minimizes mass without compromising stiffness, enabling faster, more stable data collection. The ruby ball’s hardness ensures wear resistance and repeatable contact across multiple measurements, while the 102.5 mm length provides reliable access to hard-to-reach surfaces. With flexible customization options, it adapts to a range of metrology needs and interfaces.

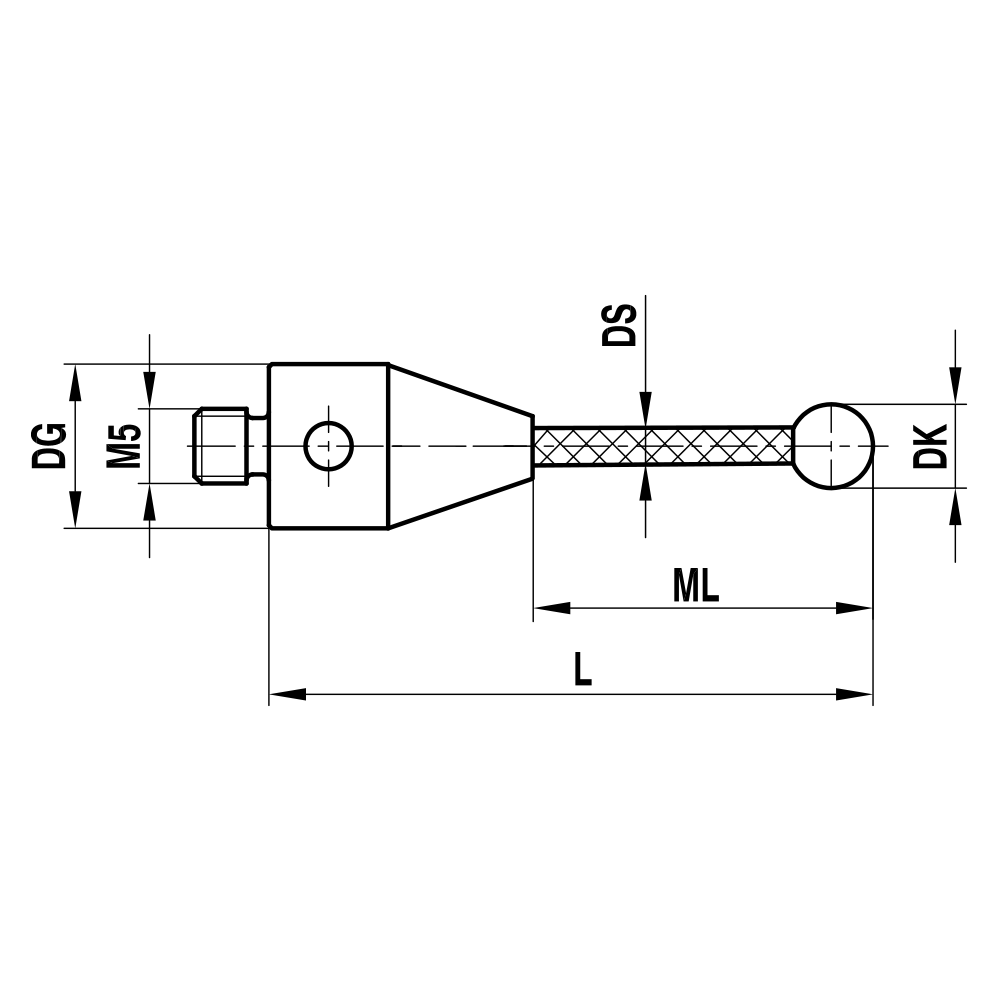

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 102.5 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 52.5 |
| Neck Diameter (DS) | 3 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | ruby |
