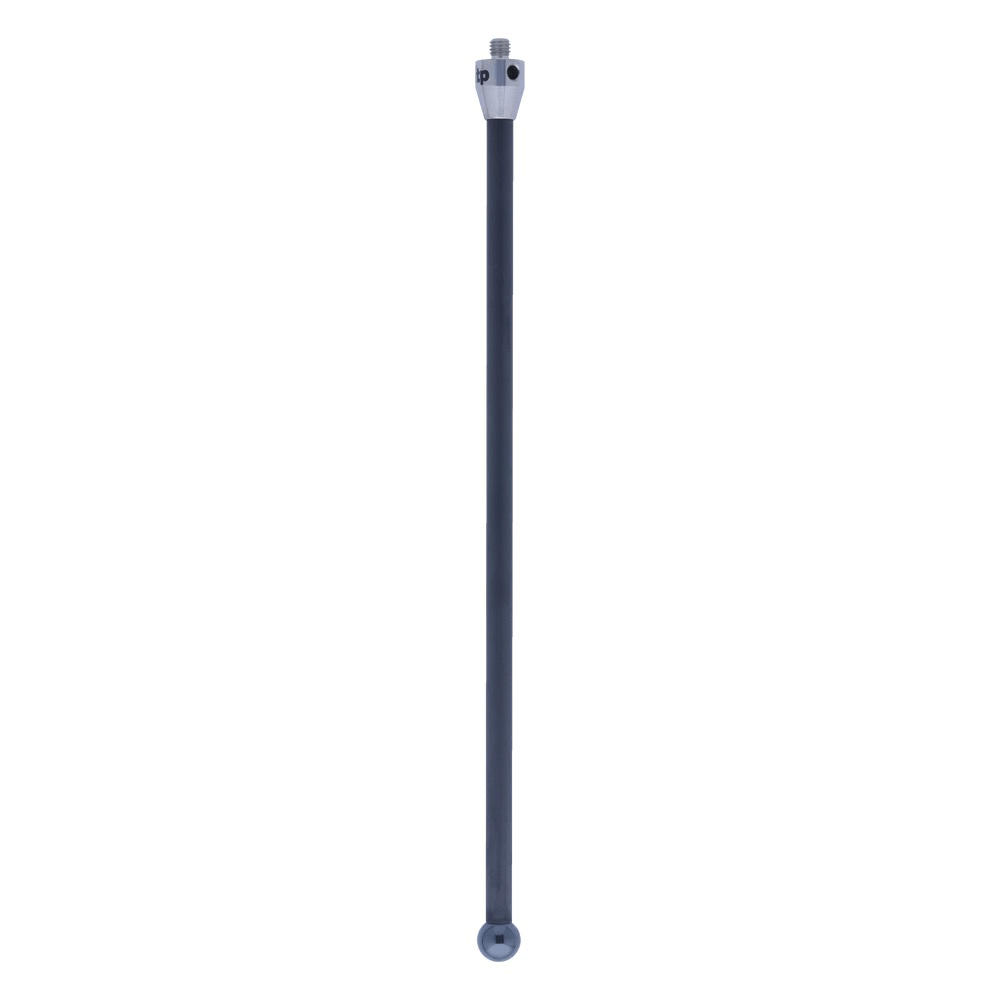

ITP Straight Styli - Type A - Silicon Nitride Ball - M5 Thread x 118mm Overall Length - TCM5S10011118
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 10 |
| Overall Length (L) | 118 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 105 |
Learn more about Klarna
Meet the ITP Straight Stylus Type A, a lightweight yet exceptionally rigid probing accessory designed for long‑reach measurements. It’s ideal for metrology technicians and quality engineers who need precise contact data on challenging aluminum surfaces.
- Tip material: Silicon nitride ball for durable, wear‑resistant contact and smooth, repeatable scans on untreated aluminum
- Stem material: Carbon fiber stem delivering high rigidity with minimal weight to reduce deflection during measurements
- Overall length: 118 mm for extended reach without adding excessive mass
- Thread: M5 thread for quick, secure attachment to compatible probe heads and extensions
- Ideal applications: Particularly suited for scanning untreated aluminum workpieces where surface conditions can challenge lesser styli
- Customization: Other dimensions can be requested via the configurator or by e-mail
This stylus combines a lightweight carbon fiber stem with a robust silicon nitride tip to deliver stable, repeatable measurements across demanding geometries. The low mass minimizes wear on the probing system while maintaining rigidity, helping you achieve higher accuracy and better repeatability in aluminum inspections. With its 118 mm reach and standard M5 connection, it integrates smoothly with existing metrology setups. If you need a different length or tip specification, other dimensions are available on request through the configurator or by e-mail.

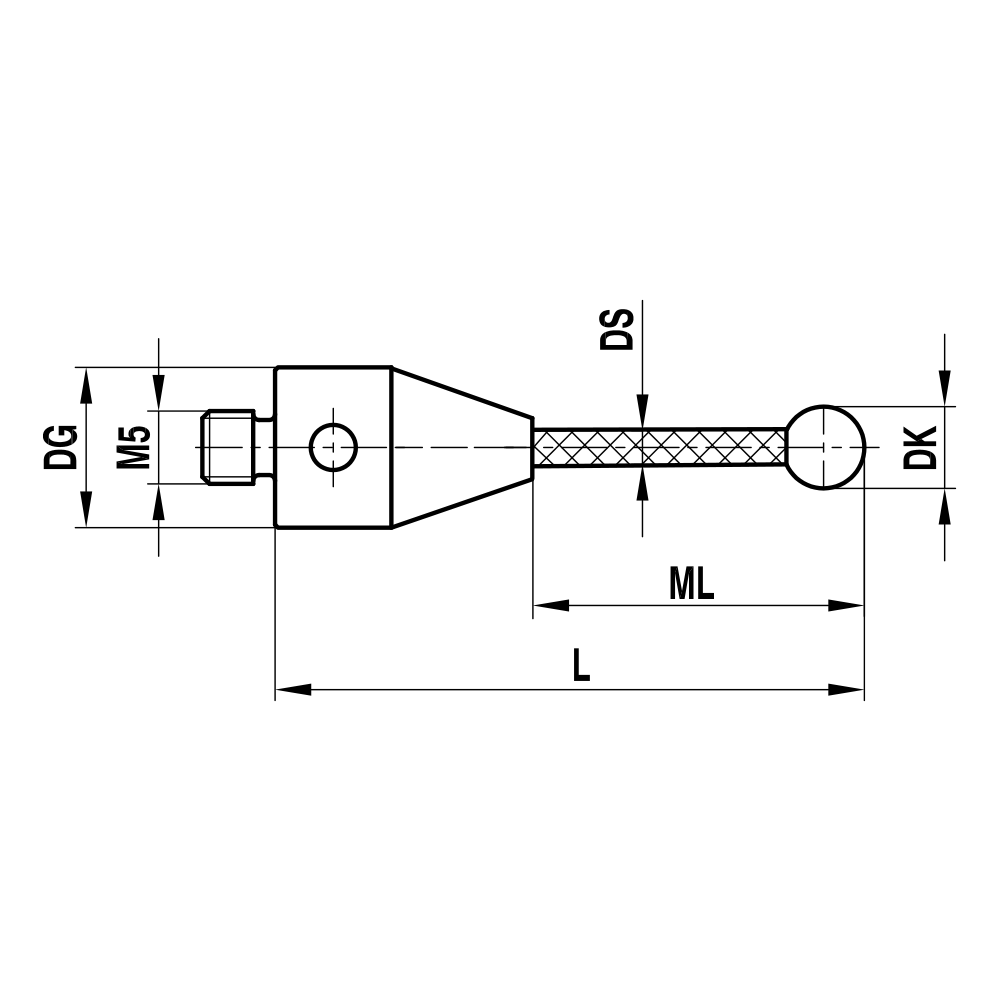

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 10 |
| Overall Length (L) | 118 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 105 |
| Neck Diameter (DS) | 6 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
