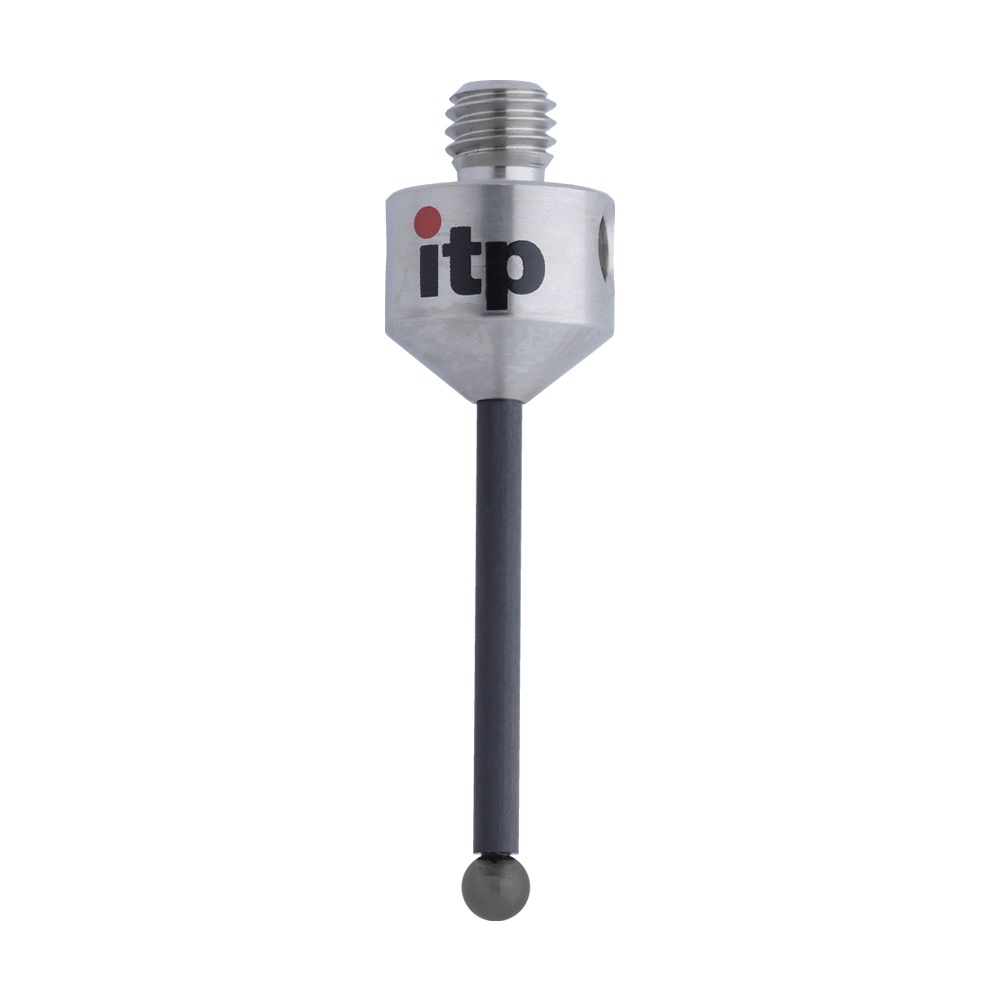

ITP Straight Styli - Type A - Silicon Nitride Ball - M5 Thread x 33.5mm Overall Length - TCM5S3011033
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 33.5 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 23.5 |
Learn more about Klarna
The ITP Straight Stylus Type A is a lightweight, high-rigidity probing solution designed for precision CMM scanning, optimized for long-reach applications on untreated aluminum surfaces.
- Ball material: Silicon nitride ball provides durable, smooth contact ideal for scanning untreated aluminum.
- Stem construction: Carbon fiber stem delivers exceptional rigidity with minimal weight, reducing deflection in long-reach measurements.
- Thread size: M5 thread for secure, compatible mounting with standard probing heads.
- Overall length: 33.5 mm, offering a compact profile while maintaining reliable probe contact.
- Part number: TCM5S3011033 for clear identification and ordering.
- Custom dimensions: Other dimensions can be requested via the configurator or by e-mail.
This stylus is engineered to boost measurement accuracy through minimal weight and maximum stiffness, helping you achieve repeatable results with fewer deflections. The silicon nitride ball resists wear and reduces surface marring on raw aluminum, extending probe life and reducing downtime. With its straightforward M5 mounting and a precise 33.5 mm reach, the stylus pairs easily with existing probing setups, enabling quick, reliable scans of challenging features or extended geometries. If you need alternatives in length or configuration, flexible options are available through the configurator or by contacting support via e-mail.

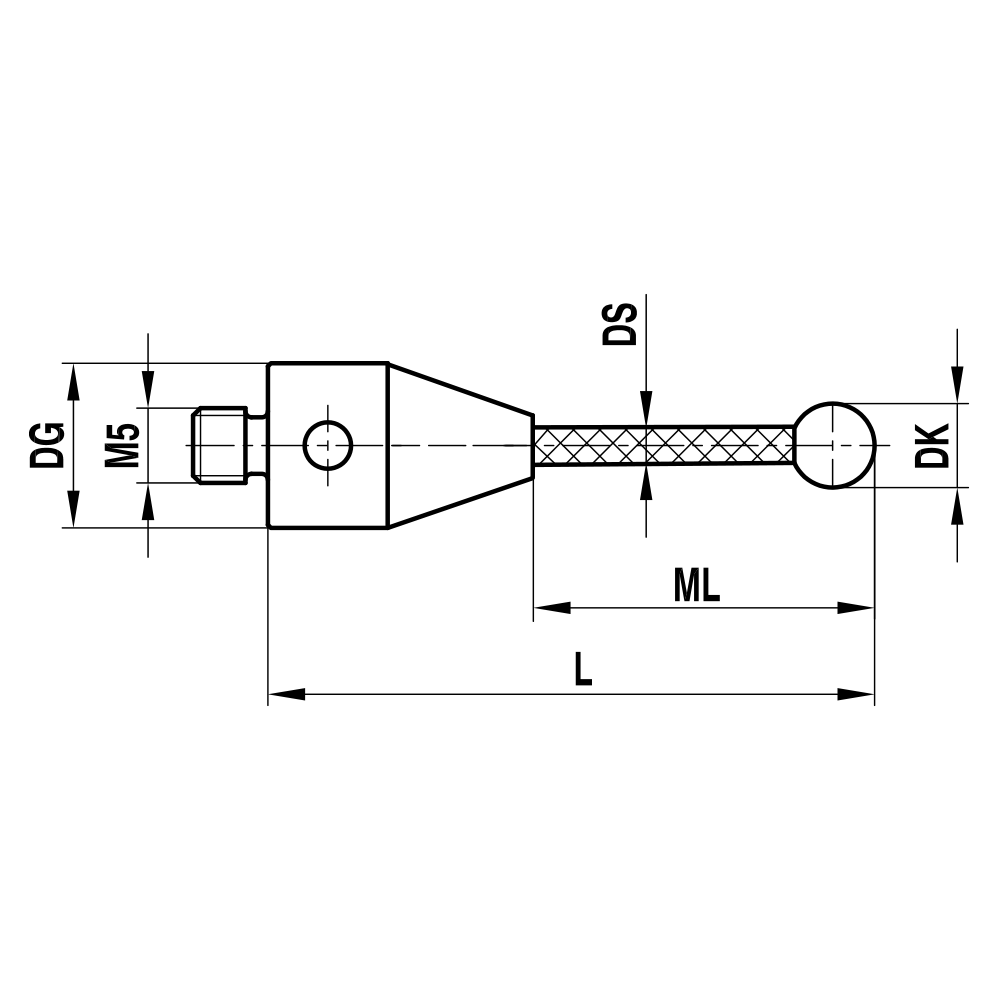

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 33.5 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 23.5 |
| Neck Diameter (DS) | 2 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
