ITP Straight Styli - Type A - Silicon Nitride Ball - M5 Thread x 150mm Overall Length - TCM5S8011150
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 150 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 137 |
Learn more about Klarna

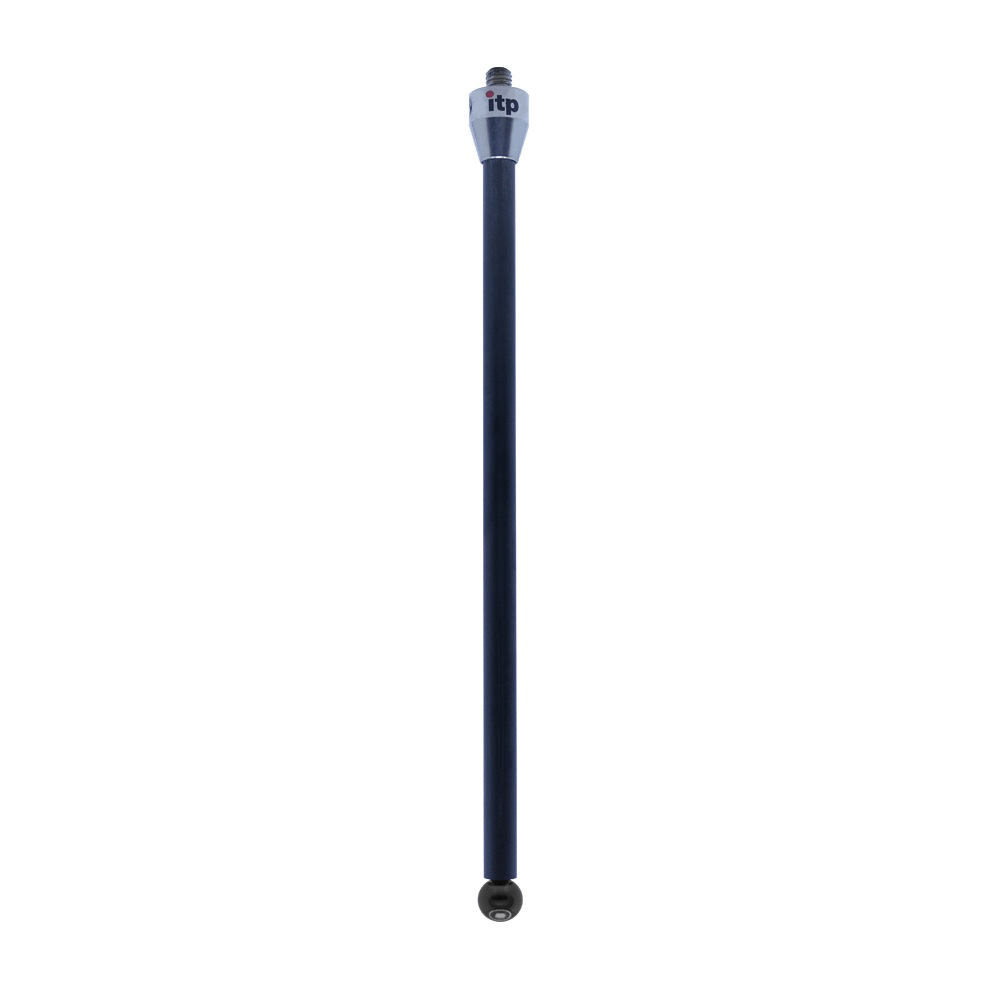

The ITP Straight Styli Type A is a high-precision straight stylus designed for CMM probing, offering a lightweight yet rigid solution for long-reach measurement tasks. Its carbon fiber stem and silicon nitride ball deliver reliable performance when scanning untreated aluminum workpieces.
- Product code: TCM5S8011150
- Overall length: 150 mm
- Thread: M5
- Ball material: Silicon nitride ball for wear resistance and stable contact on aluminum surfaces
- Stem material: Carbon fiber for low weight and high rigidity over extended reach
- Application: Straight stylus optimized for CMM scanning, especially on untreated aluminum
- Customization: Other dimensions can be requested via the configurator or by e-mail
The design prioritizes accuracy and durability in real-world inspection scenarios. The extremely rigid profile minimizes deflection during probing, helping you achieve repeatable measurements across challenging geometries. The silicon nitride ball glides smoothly on aluminum surfaces, reducing wear and preserving probe integrity during frequent scans. This long-reach stylus enables access to recessed features and large fixtures without compromising accuracy or stability. For custom lengths or head configurations, use the configurator or email us to tailor to your CMM workflow.

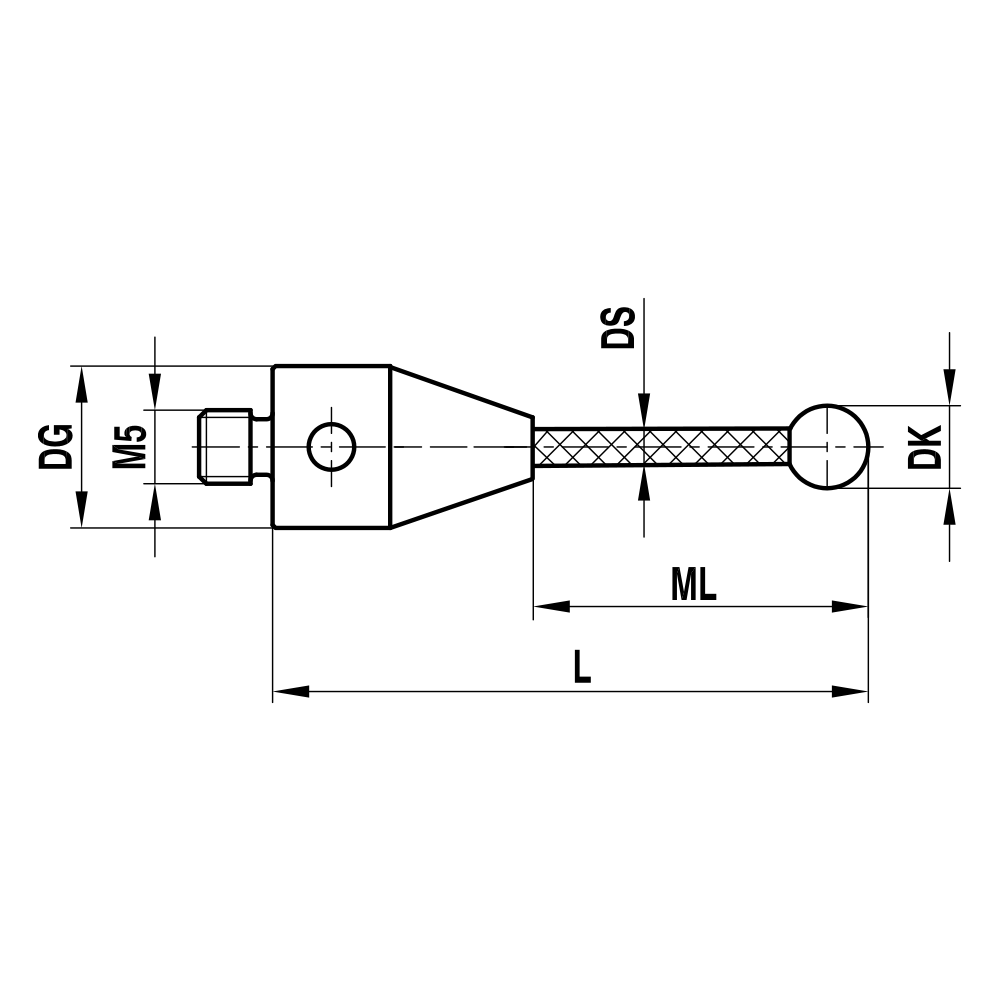

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 150 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 137 |
| Neck Diameter (DS) | 6 |
| Stem Material | carbon fiber |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
