ITP Straight Styli - Type A - Ruby Ball - M4 Thread x 103mm Overall Length - THM406007100

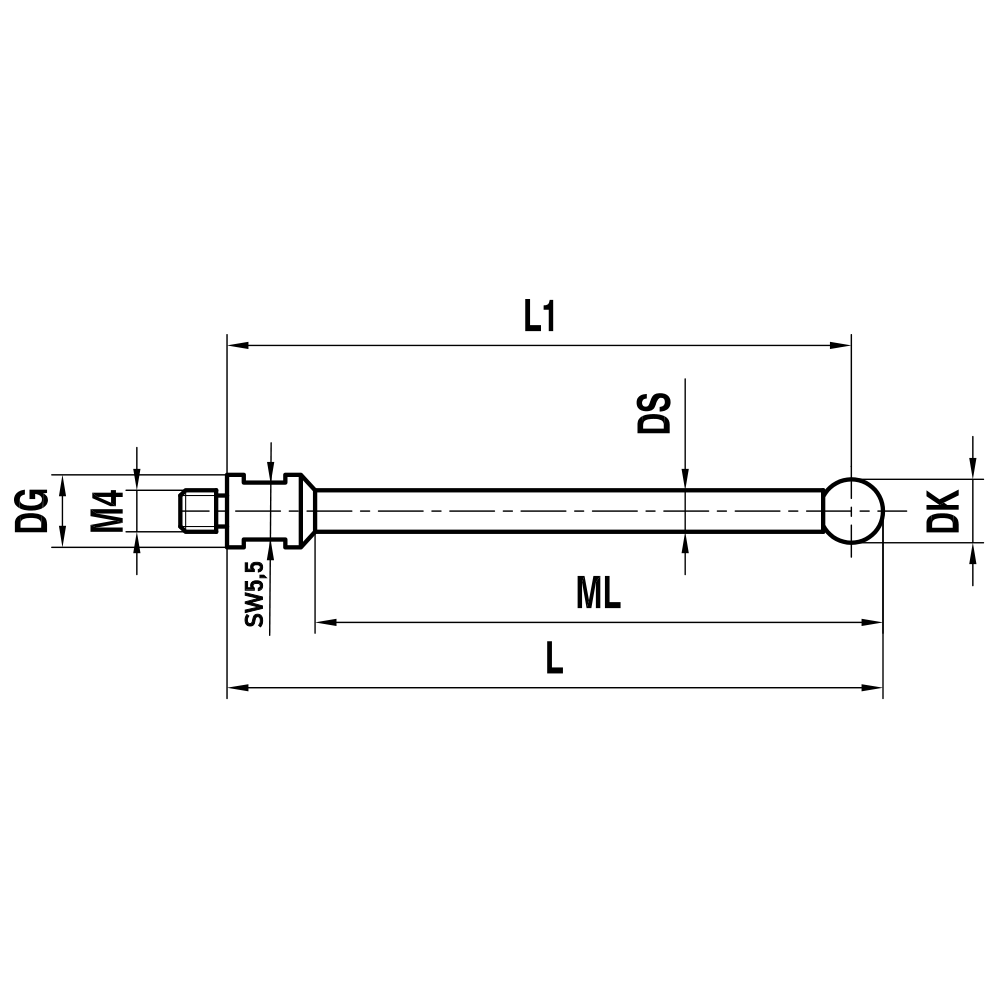

| Styli Type | Type A |
| Thread Size | M4 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 103 |
Learn more about Klarna
Description

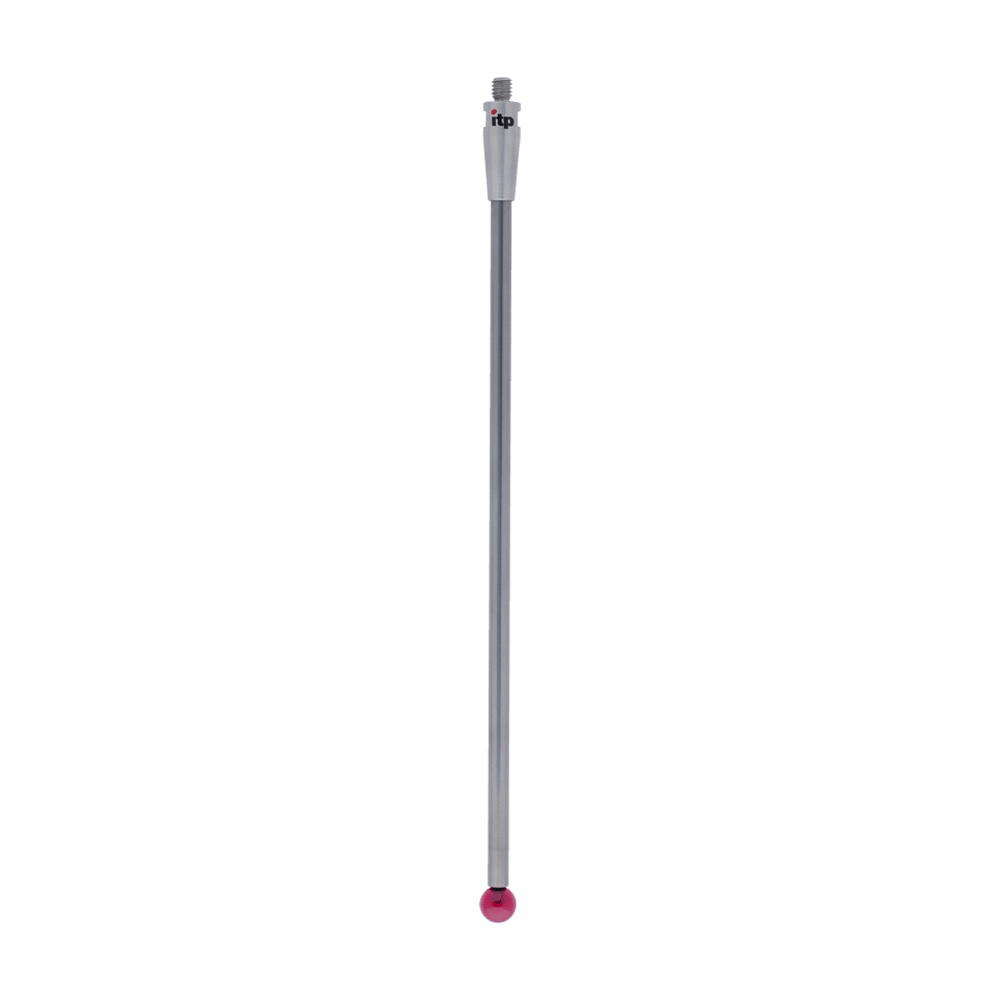

The ITP Straight Styli Type A with Ruby Ball is a straight, precision probe designed for standard measurement tasks. Built for metrology professionals who demand rigidity and consistent contact geometry, the Type A offers a reliable ruby-ball tip and a robust carbide stem for demanding environments.
- Overall length: 103 mm
- Thread: M4
- Ball material: Ruby ball (high-quality ruby tip for hard-wearing contact)
- Ball diameter range: Ø1.0 mm to Ø8.0 mm
- Stem material: Carbide for extreme rigidity and minimal deflection
- Connection method: Straight styli design, hand-tightened with SW5.5 open-end spanner
- Customization: Other sizes available on request via configurator or by e-mail
The combination of a carbide stem and ruby ball provides consistent, repeatable contact during probing, reducing deflection under load and delivering reliable dimension capture. With 103 mm of reach, this stylus is well-suited for features tucked into recessed areas or fixtures with limited access, while the M4 threading ensures compatibility with standard probe interfaces. The hand-tightened head enables quick on-site adjustments without tools, keeping your inspection workflow smooth and efficient. If your measurement needs require a different ball size, additional options within Ø1.0 mm to Ø8.0 mm are available by request to tailor performance to your feature size, material, and surface finish.
Part Numbers
- Protool Part Number
- ITP-THM406007100
- Brand
- ITP
- Category
- Styli
