ITP Straight Styli - Type B - Ruby Ball - M5 Thread x 20.15mm Overall Length - THM500310020
| Styli Type | Type B |
| Thread Size | M5 |
| Ball Diameter (DK) | 0.3 |
| Overall Length (L) | 20.15 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 5.15 |
Learn more about Klarna

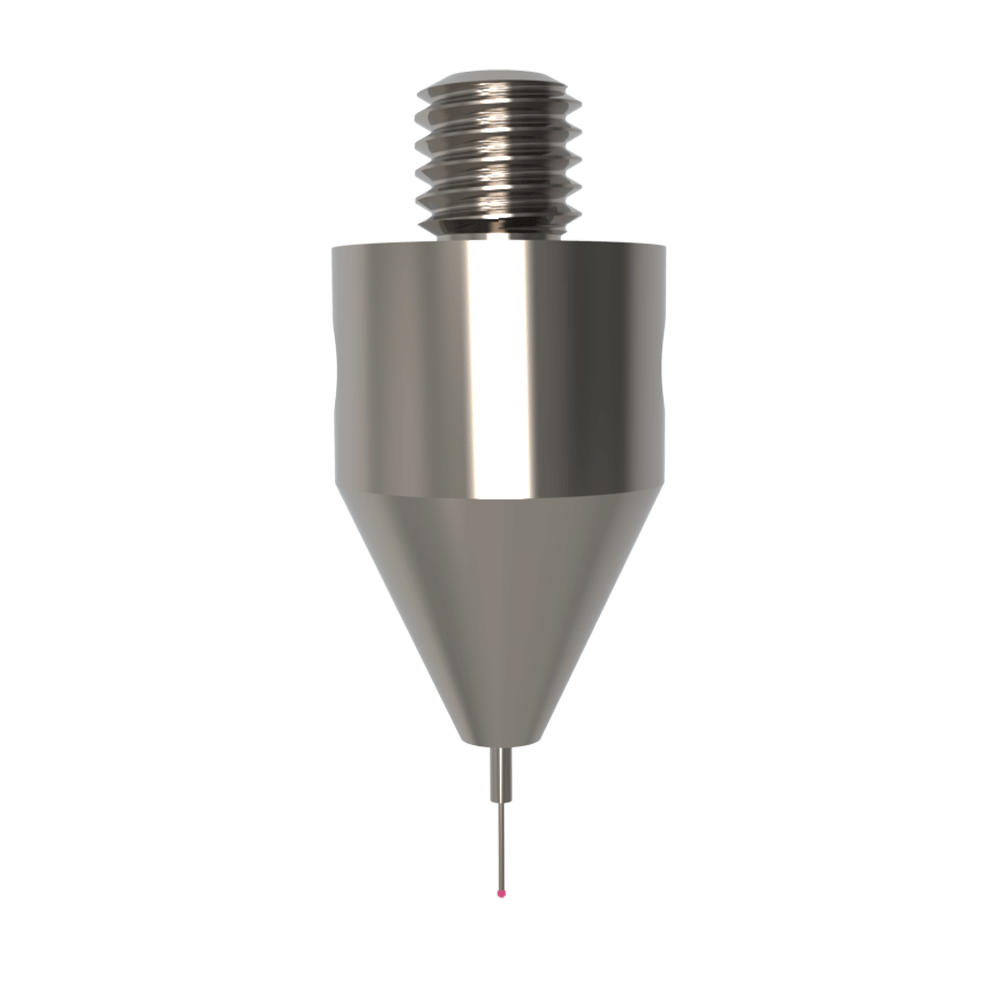

A high-precision straight stylus built for metrology professionals who demand dependable, consistent measurements. The ITP Straight Styli Type B with Ruby Ball delivers a rigid, reliable probing solution for CMM work and micro-scale measurements.
- Thread: M5 thread for broad compatibility with standard probe heads and fixtures.
- Overall Length: 20.15 mm to balance reach with compactness for sensitive features.
- Stem Material: Tungsten carbide, providing exceptional rigidity and wear resistance for repeated, accurate contact.
- Ball Tip: Ruby ball, manufactured to the highest quality, with diameters available from Ø0.2 mm to Ø1.5 mm for fine-detail probing.
- Stem Configuration: Straight profile with options for single- or multi-stepped stems to suit different measurement depths.
- Customization: Other sizes and configurations can be requested via the configurator or by email.
Designed to minimize deflection and maintain measurement integrity, this stylus supports precise contact on small features, edges, and tight radii. The ruby ball’s hardness reduces wear over time, delivering consistent results across multiple parts and sessions. Its straight form and sturdy tungsten carbide stem make it a dependable choice for routine, everyday metrology tasks, while the ability to tailor ball size and stem steps expands its versatility for specialized inspections.

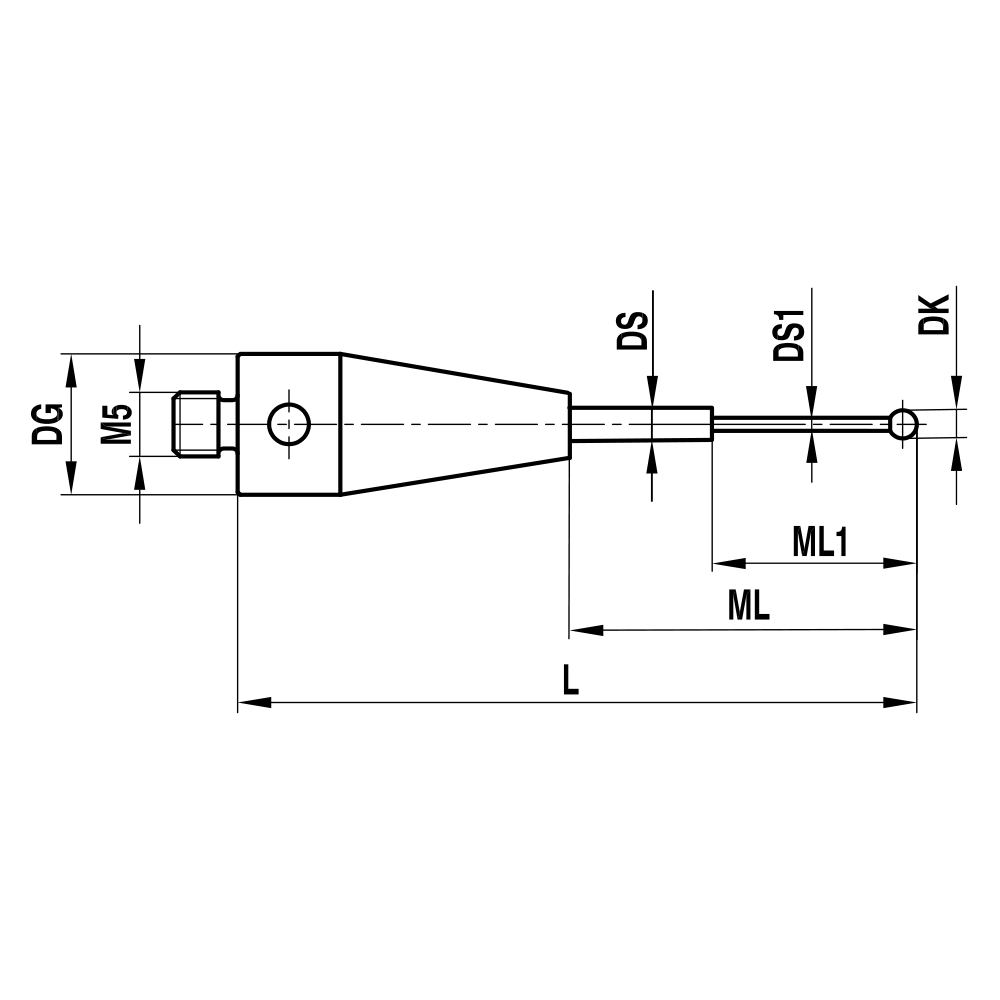

| Styli Type | Type B |
| Thread Size | M5 |
| Ball Diameter (DK) | 0.3 |
| Overall Length (L) | 20.15 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 5.15 |
| Neck Diameter (DS) | 0.7 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | ruby |
