ITP Straight Styli - Type B - Ruby Ball - M5 Thread x 20.25mm Overall Length - THM500510020

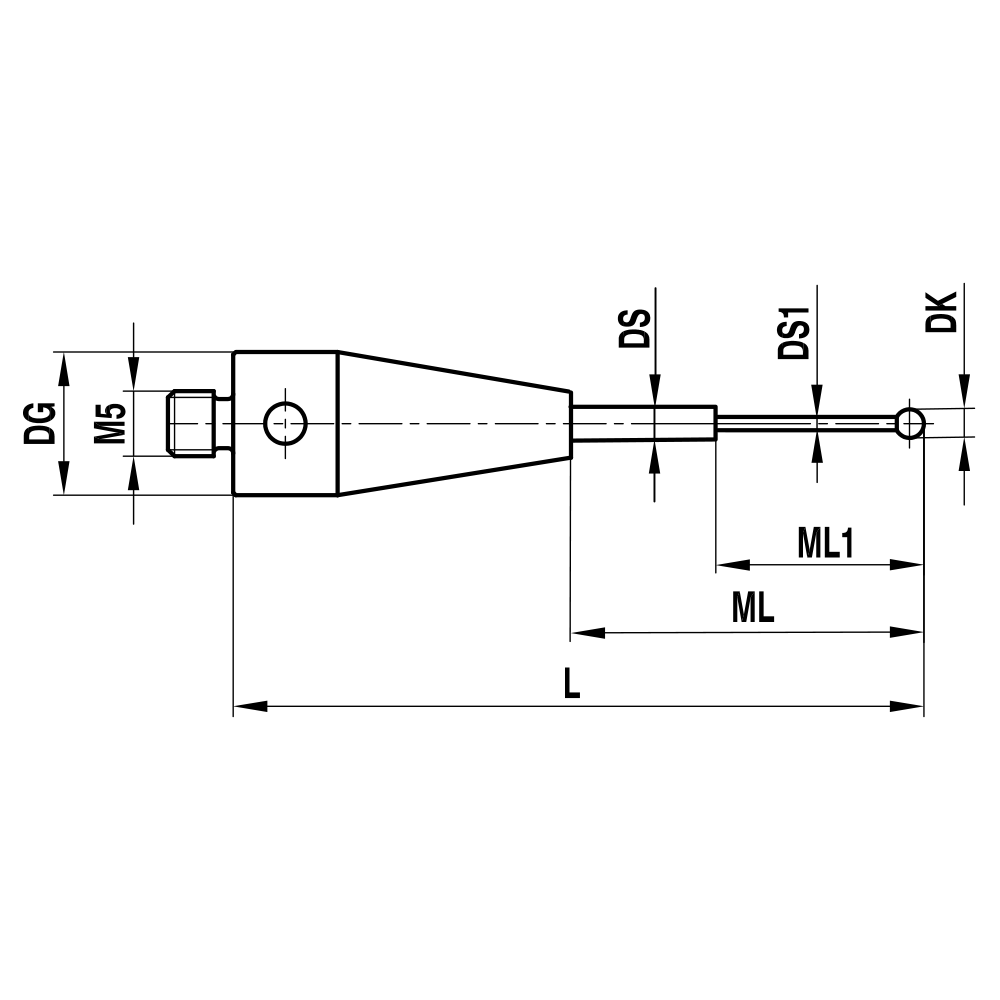

| Styli Type | Type B |
| Thread Size | M5 |
| Ball Diameter (DK) | 0.5 |
| Overall Length (L) | 20.25 |
Learn more about Klarna
Description

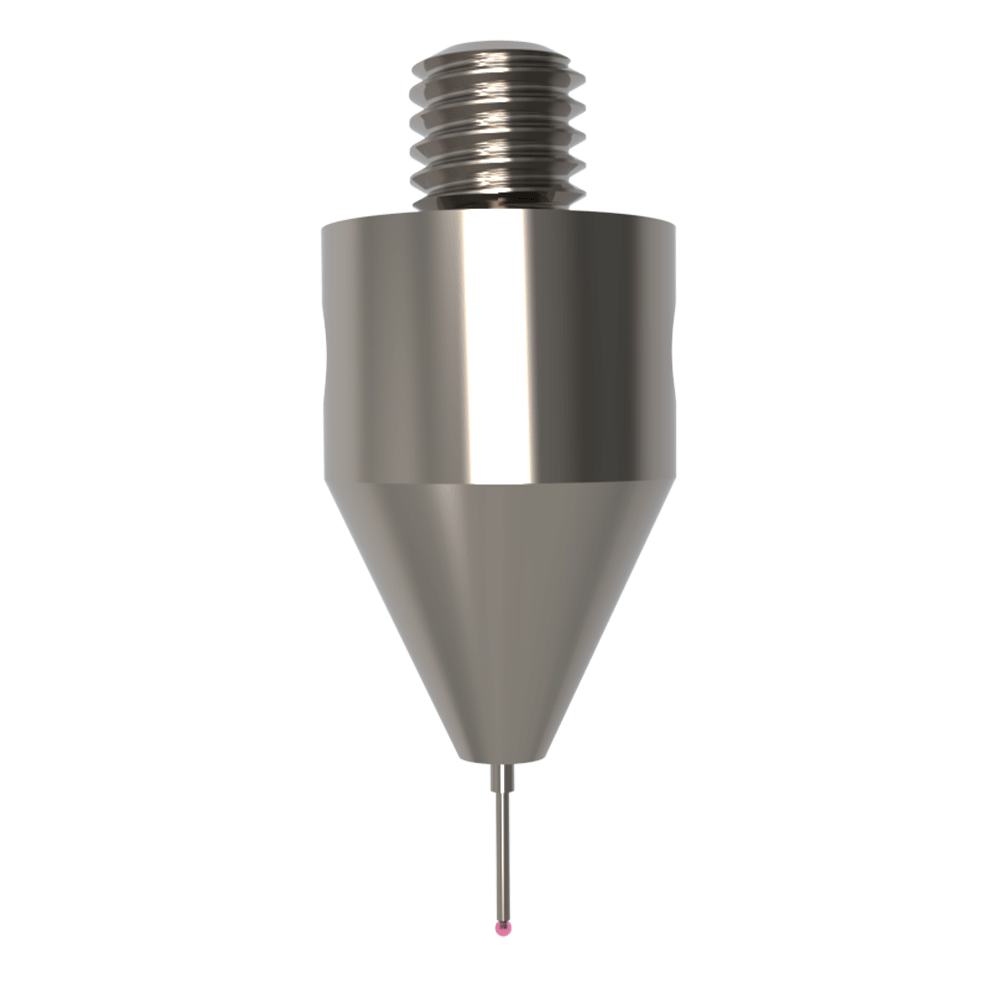

The ITP Straight Styli Type B with a ruby ball is a precision straight stylus designed for metrology professionals who need reliable, repeatable measurements in tight spaces. Built with a rigid tungsten carbide stem and a high-quality ruby ball, it excels in everyday standard probing tasks.
- Stem material: Tungsten carbide for exceptional rigidity, wear resistance, and long-term measurement stability.
- Ball tip size: Ruby ball available in diameters from Ø0.20 mm to Ø1.50 mm for versatile contact profiles.
- Thread: M5 threaded connection for secure mounting in compatible probe heads and fixtures.
- Overall length: 20.25 mm overall length provides a compact probing profile suited for constrained setups.
- Stem configuration: Straight stem that can be single- or multi-stepped to fit specific measurement tasks.
- Customization: Additional sizes can be requested through the configurator or by email to tailor the tool to your application.
By choosing this stylus, you gain a dependable probe with minimal flex under load, thanks to the tungsten carbide construction. The ruby ball diameters allow you to optimize contact geometry for delicate surfaces or tight-feature probing, improving measurement repeatability and reducing wear on both the stylus and the fixture. The secure M5 connection ensures compatibility with standard probing systems, while optional size adjustments let you adapt to evolving inspection tasks without swapping tooling. The ITP Straight Styli Type B is a durable, practical choice for daily metrology work and routine quality checks.
Part Numbers
- Protool Part Number
- ITP-THM500510020
- Brand
- ITP
- Category
- Styli
