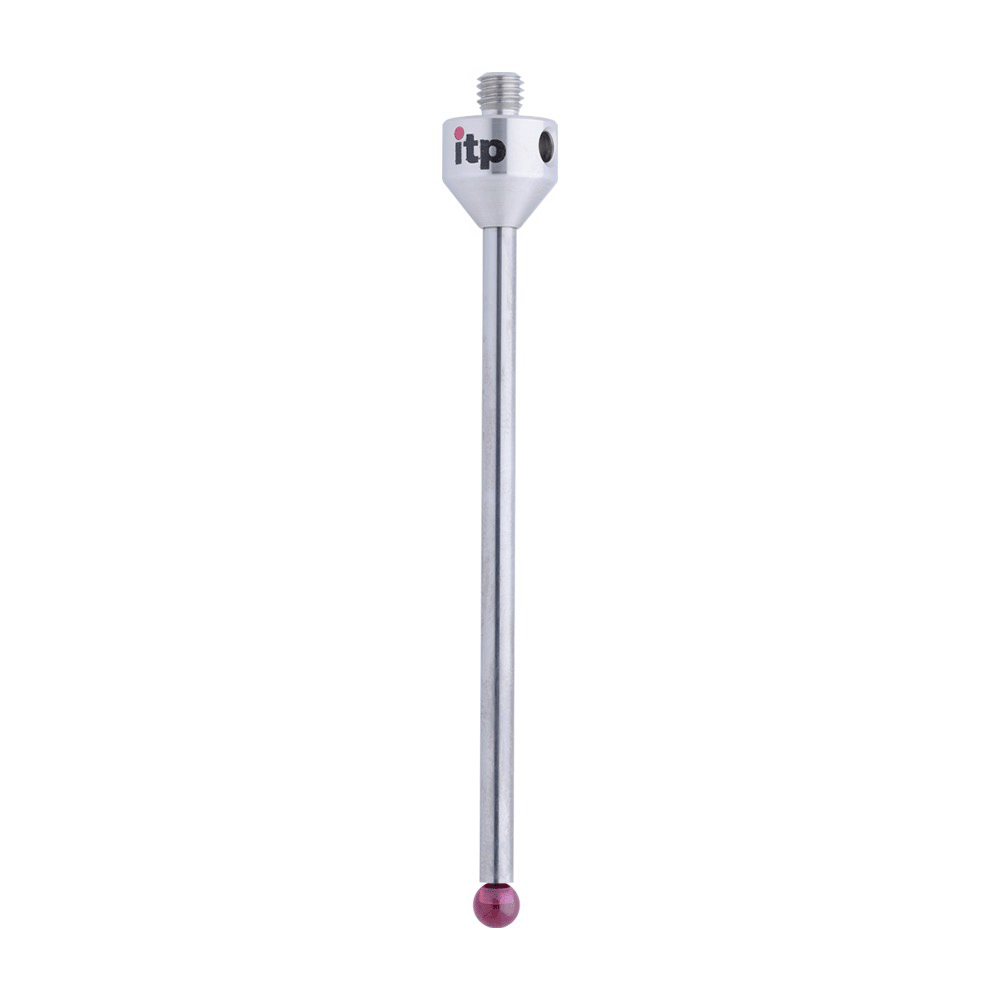

ITP Straight Styli - Type A - Ruby Ball - M5 Thread x 82.5mm Overall Length - THM505012080
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 82.5 |
| Shank Diameter (DG) | 12 |
| Measuring Length (ML) | 71.5 |
Learn more about Klarna
The ITP Straight Styli - Type A with a ruby ball is a precision touch probe stylus designed for metrology professionals who need reliable, repeatable measurements in tight spaces.
- Design: Straight stylus (Type A) with a carbide stem for exceptional rigidity and stable readings.
- Tip: Ruby ball tip, with high-quality balls available from Ø1.5 mm to Ø8.0 mm for precise contact and long wear life.
- Connection: M5 thread for secure mounting to compatible probe heads.
- Length: 82.5 mm overall length to reach recessed features and challenging geometries.
- Product Code: THM505012080
- Customization: Other ruby-ball sizes can be requested via the configurator or by e-mail.
This stylus delivers a reliable touch in coordinate measuring and inspection workflows. The carbide stem minimizes deflection under probing forces, helping you achieve consistent results across multiple measurements. The ruby ball tip provides a hard, smooth contact surface that reduces wear and preserves accuracy over time. With its generous 82.5 mm length and secure M5 connection, it’s well-suited for accessing tight pockets, dense fixtures, and a variety of measurement setups. If you need a different ruby-ball diameter for specific parts or tolerance requirements, additional sizes are available on request through the configurator or by email.

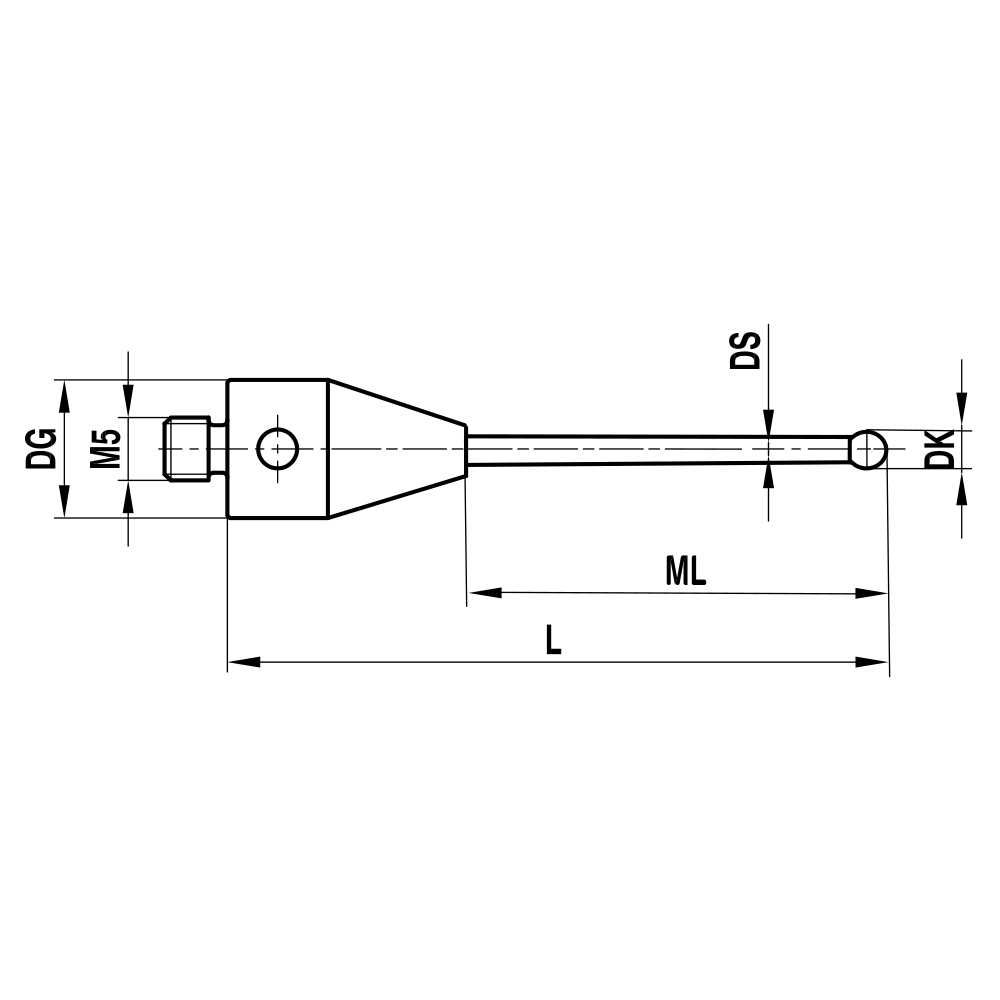

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 82.5 |
| Shank Diameter (DG) | 12 |
| Measuring Length (ML) | 71.5 |
| Neck Diameter (DS) | 3.5 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | ruby |
