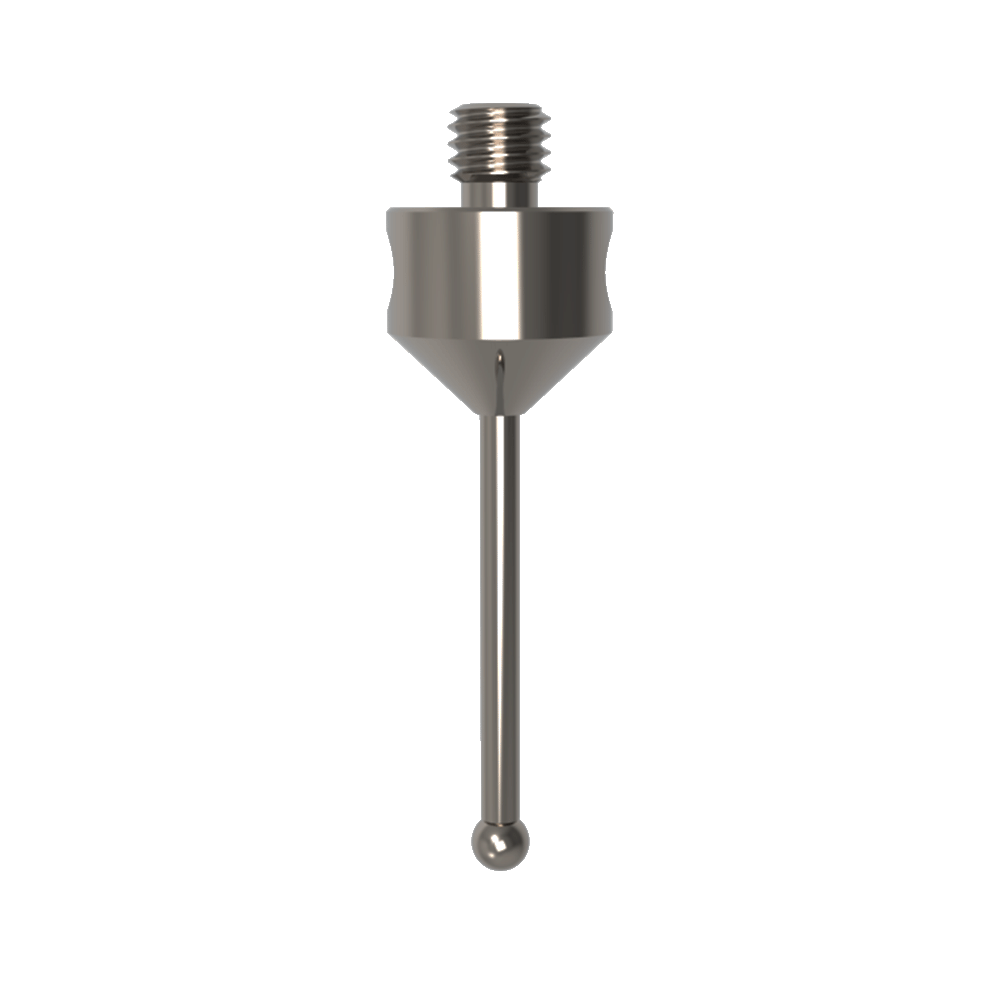

ITP Straight Styli - Type A - Carbide Ball - M5 Thread x 33.5mm Overall Length - THM5H3011033

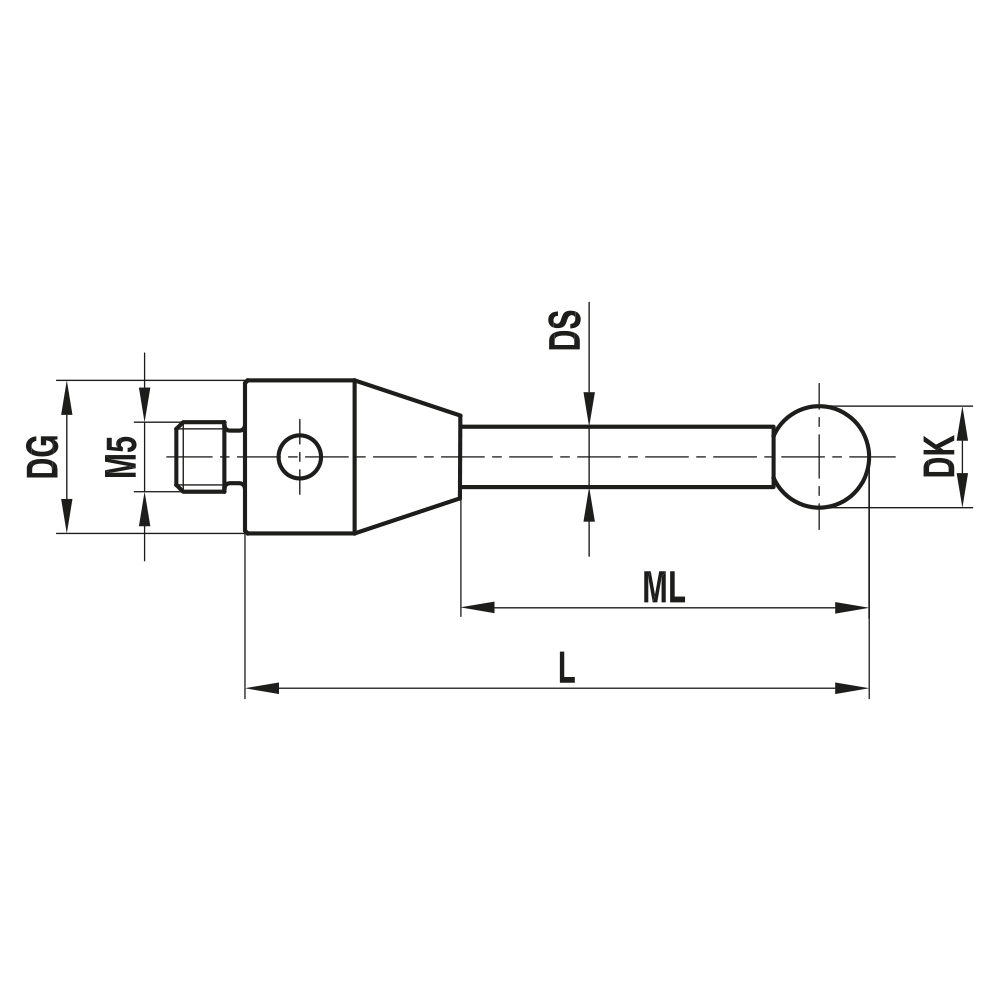

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 33.5 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 23.5 |
Learn more about Klarna
ITP Straight Styli Type A with a tungsten carbide ball tip offers reliable, high-precision probing for difficult-to-measure materials. Designed for seamless integration with standard stylus holders and CMM setups, it provides a secure M5 mounting thread and a precise 33.5 mm overall length.
- Type: Straight stylus, Type A design for straightforward compatibility with common probe systems
- Tip material: Tungsten carbide ball (alternative material) for exceptional wear resistance on abrasive or reflective workpieces
- Thread: M5 external thread for quick, secure attachment
- Length: 33.5 mm overall length to reach tight features without sacrificing stability
- Material option: Carbide ball tip as an alternative material to standard tips, extending tip life on challenging surfaces
- Conductivity: Electrical conductivity can be realised on request to support conductive measurement applications
This stylus is ideal for scanning workpieces made of "problematic" materials where traditional tips wear prematurely or yield inconsistent contact data. The carbide ball tip delivers durable performance across hard, shiny, or composite surfaces, helping you capture accurate geometry over longer measurement campaigns. With its compatible thread and compact form, it fits into a wide range of probing ecosystems, reducing tool-change downtime. For workflows requiring electrical grounding or conductivity, the available option adds versatility without overhauling your existing setup.
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 33.5 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 23.5 |
| Neck Diameter (DS) | 2 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | carbide |
