ITP Straight Styli - Type B - Silicon Nitride Ball - M5 Thread x 30mm Overall Length - THM5S1011030

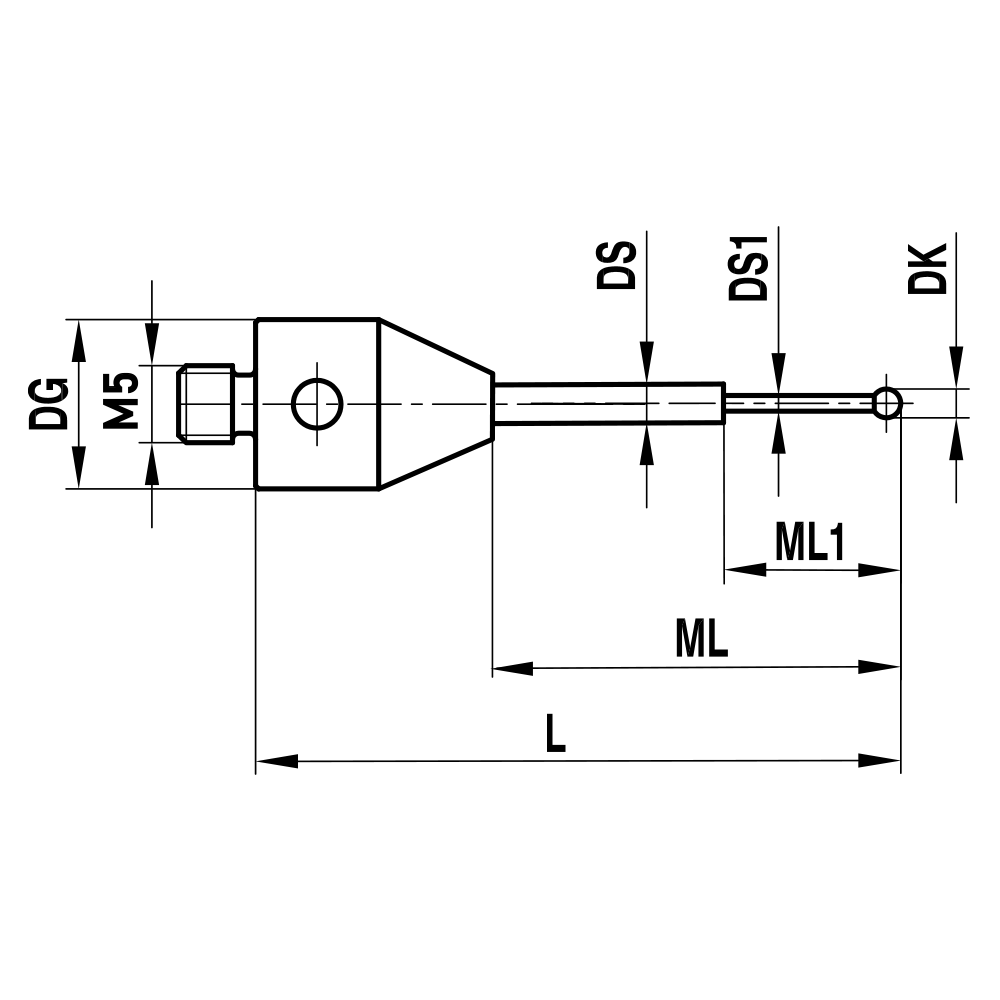

| Styli Type | Type B |
| Thread Size | M5 |
| Ball Diameter (DK) | 1 |
| Overall Length (L) | 30 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 20 |
Learn more about Klarna

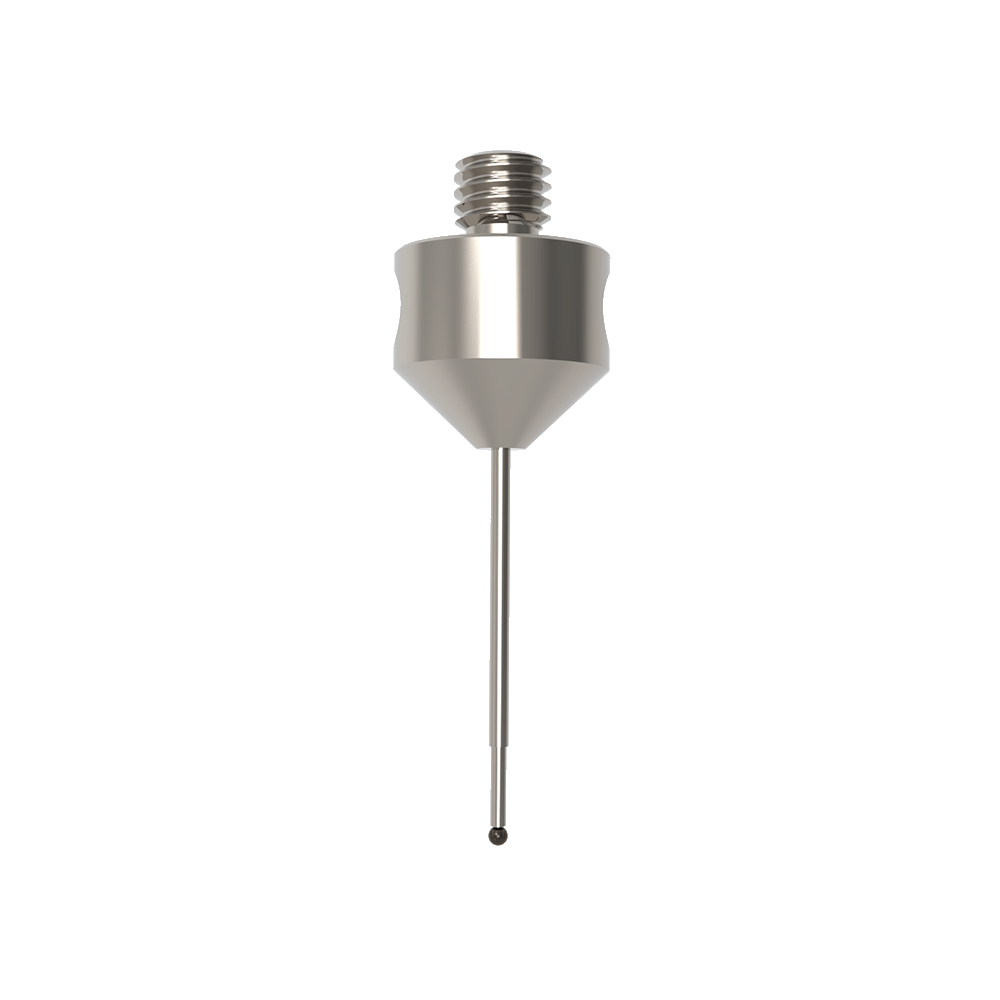

The ITP Straight Styli Type B with a silicon nitride ball is a precision straight stylus designed for everyday metrology tasks. With a tungsten carbide stem, it delivers high stiffness and dependable measurements in a compact 30 mm overall length and M5 thread for seamless integration into standard probing setups.
- Thread size: M5 thread for secure attachment to probes and fixtures.
- Overall length: 30 mm, providing a compact reach for tight features.
- Stem material: Tungsten carbide for exceptional stiffness and minimal deflection.
- Tip material: Silicon nitride ball, optimized for scanning untreated aluminum.
- Ball diameter options: available in Ø1.0 mm to Ø1.5 mm within this product group.
- Stem configuration: available in single or multi-stepped stems to suit different probing needs.
- Customization: other sizes can be requested via the configurator or by e-mail.
This stylus excels in delivering stable, repeatable data across a range of features, thanks to its rigid tungsten carbide stem that minimizes deflection during contact. The silicon nitride ball enhances wear resistance when scanning aluminum surfaces, preserving surface integrity and prolonging stylus life. Designed for compatibility with common metrology setups, the 30 mm length and M5 thread offer reliable integration, while the single or multi-stepped stem options adapt to varying depths and feature access. For tasks requiring non-standard sizes, additional options can be requested through the configurator or by e-mail, ensuring you have the right tool for specialized measurements.
| Styli Type | Type B |
| Thread Size | M5 |
| Ball Diameter (DK) | 1 |
| Overall Length (L) | 30 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 20 |
| Neck Diameter (DS) | 1 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
