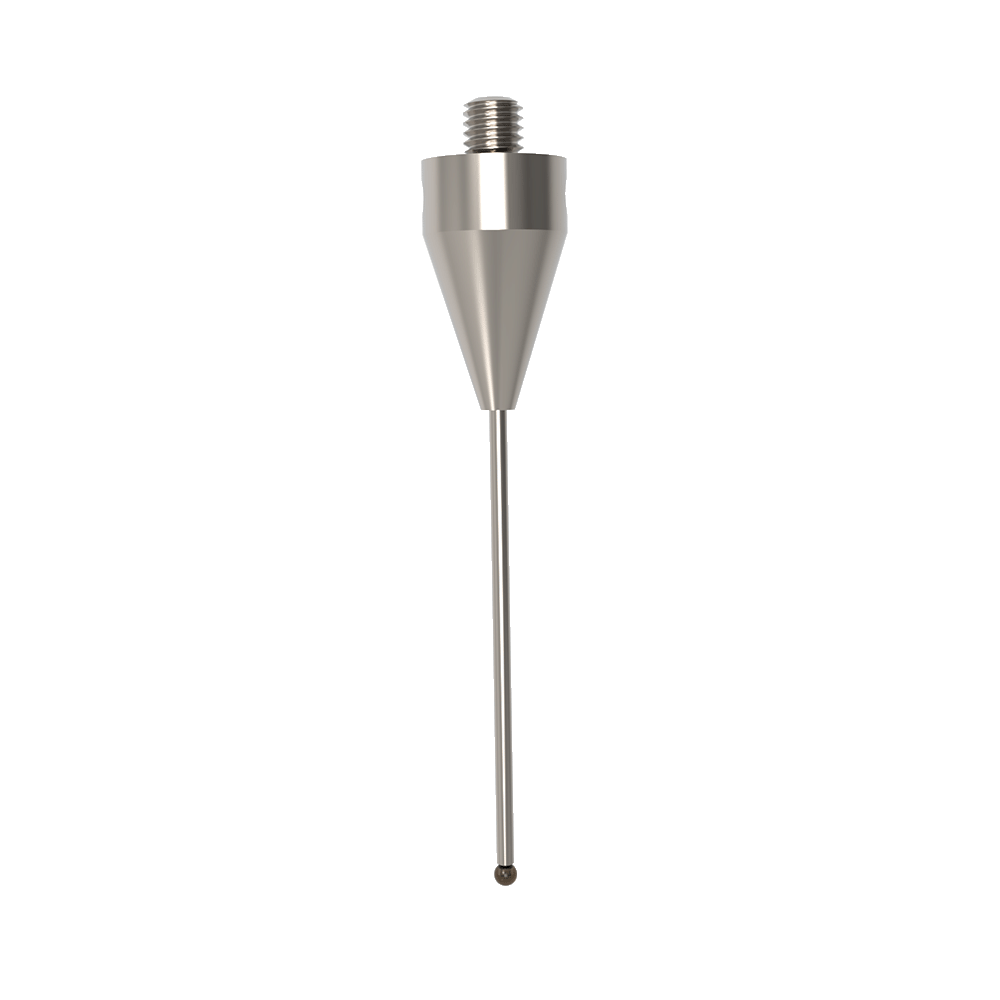

ITP Straight Styli - Type A - Silicon Nitride Ball - M5 Thread x 61mm Overall Length - THM5S2012060
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 2 |
| Overall Length (L) | 61 |
| Shank Diameter (DG) | 12 |
| Measuring Length (ML) | 40.5 |
Learn more about Klarna
A Straight Stylus built for precise, everyday measurement tasks. The ITP Straight Stylus Type A with a silicon nitride ball is designed for reliability in routine CMM probing and metal part inspection, including untreated aluminum surfaces.
- Geometry: Straight stylus optimized for direct probing and consistent contact with minimal deflection
- Thread: M5 threaded connection for secure attachment to standard probing assemblies
- Overall length: 61 mm, providing a practical reach for common inspection setups
- Stem material: Extremely rigid carbide for high dimensional stability and durability
- Ball material: Silicon nitride ball, offering wear resistance and smooth data capture
- Holder compatibility: Group options support Ø10.0 mm, Ø11.0 mm and Ø12.0 mm holders
- Ball size range: Accessible with ball sizes from Ø1.5 mm to Ø10.0 mm within this product group
- Ideal applications: Scanning and probing untreated aluminum parts with improved surface contact
Designed for professionals who value accuracy, durability, and straightforward setup, this stylus delivers dependable performance across daily metrology tasks. The combination of a carbide stem and silicon nitride ball reduces wear and maintains consistent measurements, while the compact 61 mm length keeps handling comfortable during extended measurement sessions. Ideal for standard inspection routines, calibration checks, and general-purpose probing in metal manufacturing environments.

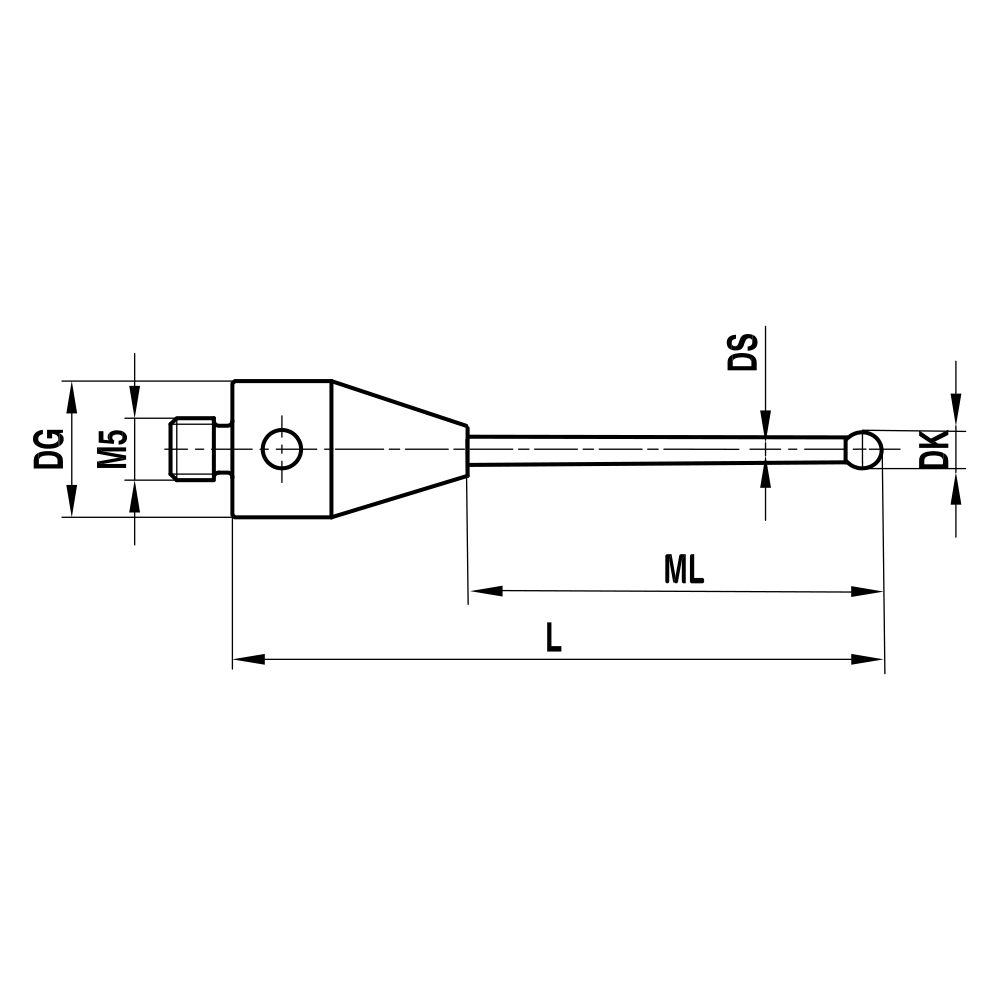

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 2 |
| Overall Length (L) | 61 |
| Shank Diameter (DG) | 12 |
| Measuring Length (ML) | 40.5 |
| Neck Diameter (DS) | 1.5 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
