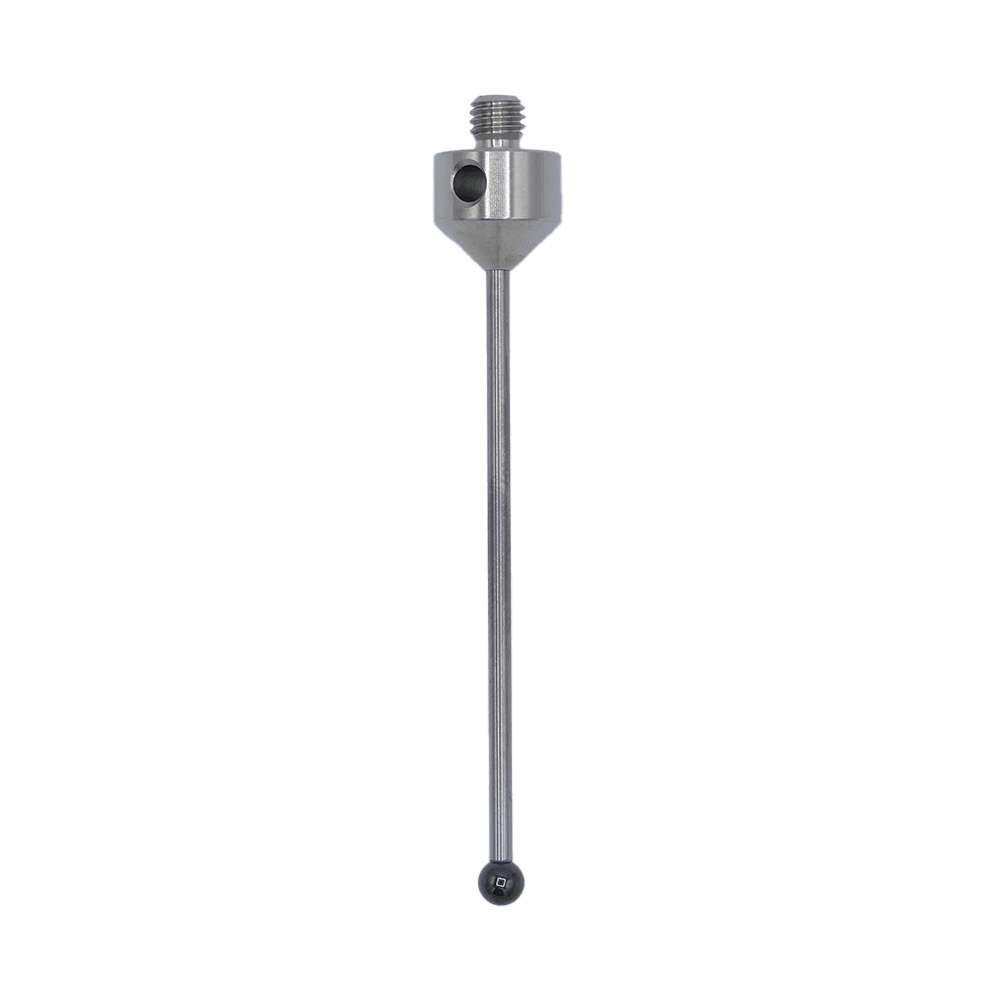

ITP Straight Styli - Type A - Silicon Nitride Ball - M5 Thread x 64mm Overall Length - THM5S4011064

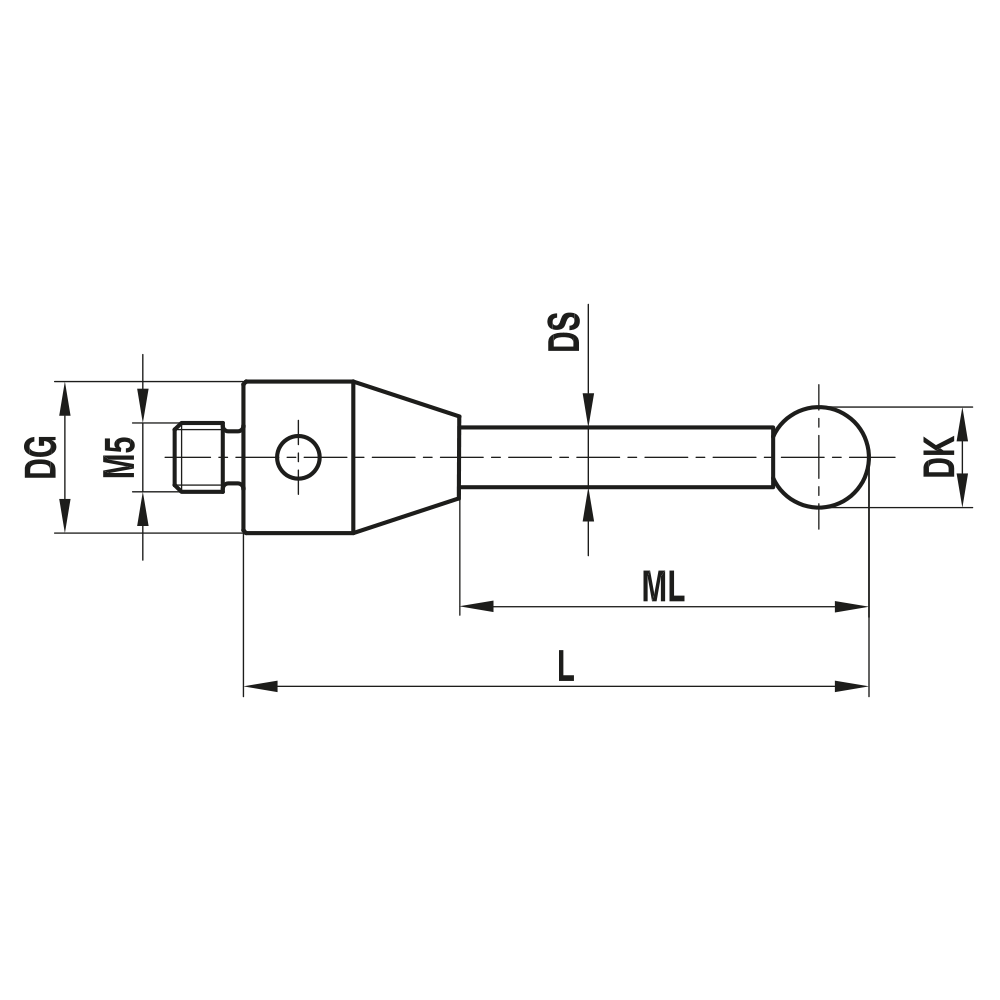

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 4 |
| Overall Length (L) | 64 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 54 |
Learn more about Klarna
A straight stylus designed for everyday metrology tasks, this Type A THM5S4011064 is ideal for technicians and engineers who need dependable, repeatable scans on aluminum workpieces. It pairs a rigid carbide stem with a silicon nitride ball for stable contact and accurate measurements.
- Thread: M5 threaded connection for quick, secure attachment to compatible probing systems
- Overall Length: 64 mm total length to reach recessed features while maintaining control
- Stem Material: Hardwearing carbide for high stiffness and minimal deflection
- Ball Material: Silicon nitride ball, chosen for hardness and reliable contact on aluminum surfaces
- Ball Size Range in Group: Styli with ball sizes from Ø1,5 mm to Ø10,0 mm are available in this product group
- Holder Compatibility: Group includes holders for Ø10,0 mm, Ø11,0 mm, and Ø12,0 mm specifications
- Ideal Use: Particularly recommended for scanning untreated aluminium parts
- Other Sizes: Other sizes can be requested via the configurator or by e-mail
This stylus delivers precise, repeatable measurements by combining a stiff carbide stem with a durable silicon nitride tip. The 64 mm reach provides flexibility to access a range of features, while the M5 connection keeps compatibility broad across standard probing systems. The silicon nitride ball minimizes wear and marking on soft aluminum surfaces, helping you achieve cleaner scans and more reliable data across multiple measurement cycles.
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 4 |
| Overall Length (L) | 64 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 54 |
| Neck Diameter (DS) | 2 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
