ITP Straight Styli - Type A - Silicon Nitride Ball - M5 Thread x 30mm Overall Length - THM5S5011030

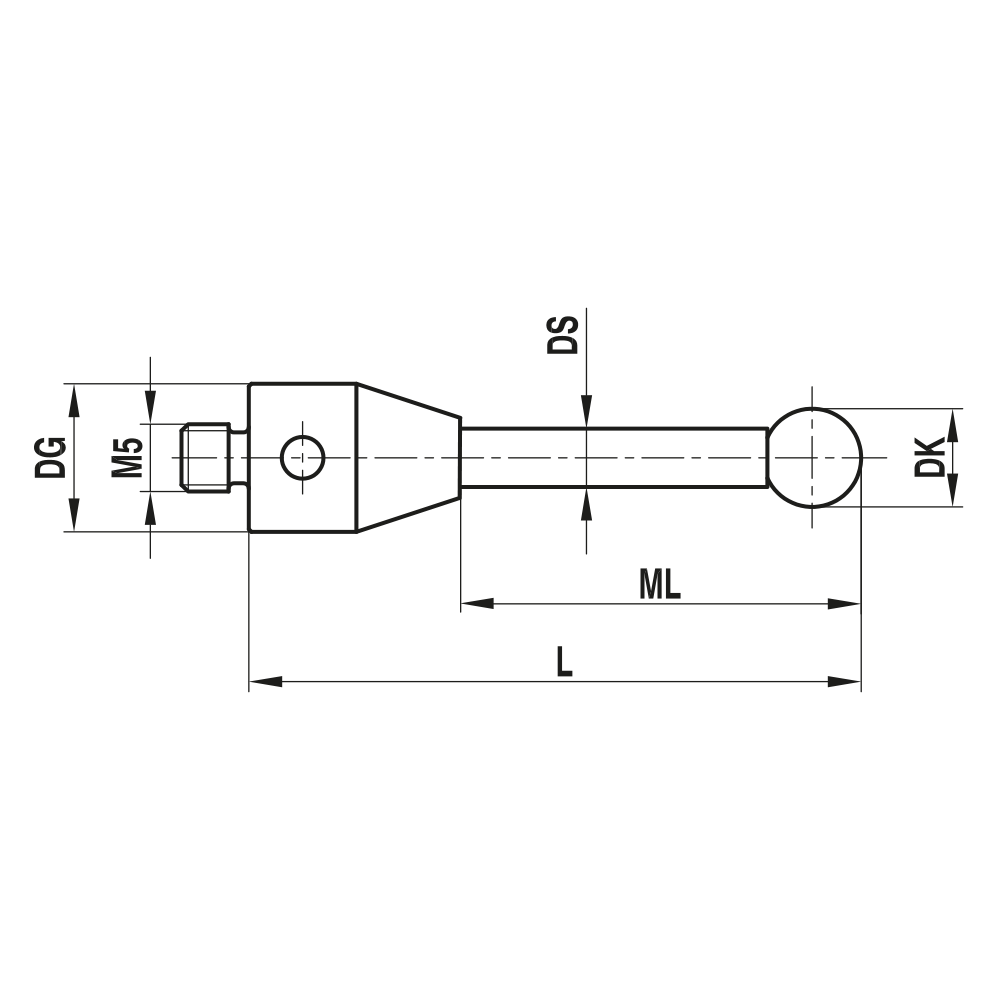

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 30 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 20 |
Learn more about Klarna

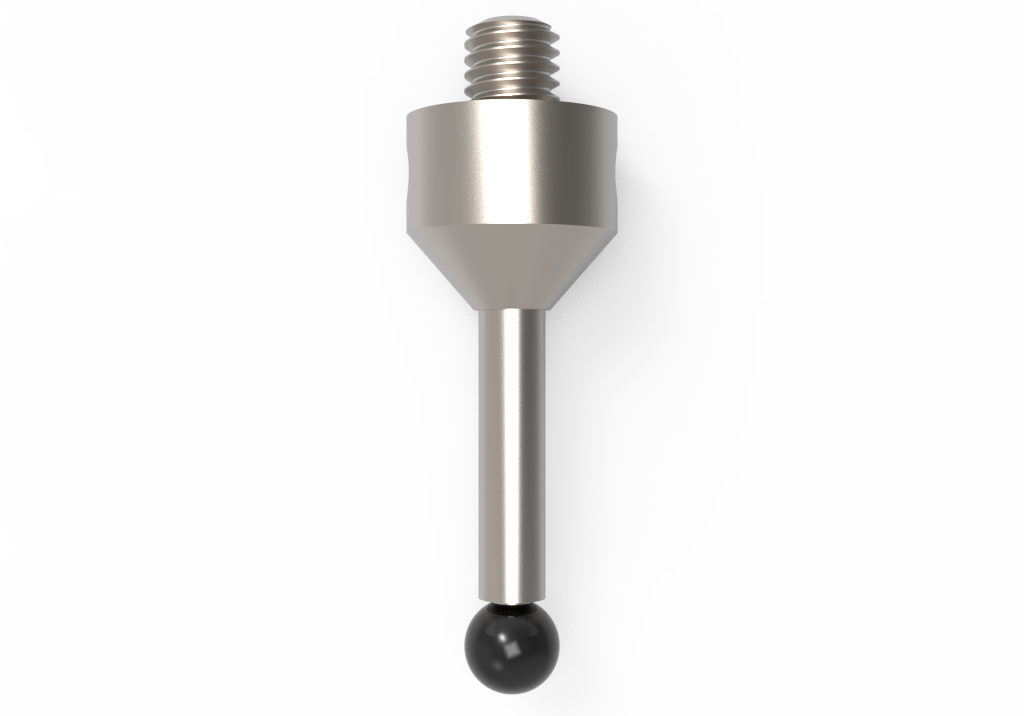

The ITP Straight Styli Type A with a silicon nitride ball is a reliable, everyday-use straight stylus designed for precise CMM probing. Built for M5-threaded setups and a compact 30 mm overall length, it pairs rigid carbide construction with a durable ball for dependable measurements on metal parts.
- Thread: M5 male thread for secure attachment to compatible probes
- Stem material: Extremely rigid carbide shaft to maintain dimensional stability across a wide range of measurements
- Ball material: Silicon nitride ball, recommended for scanning untreated aluminium parts
- Ball size options: Part of a range with ball diameters from Ø1,5 mm to Ø10,0 mm
- Holder compatibility: Suitable for styli with Ø10,0 mm, Ø11,0 mm and Ø12,0 mm holders depending on the measuring system
- Overall length: 30 mm for good accessibility in constrained fixtures
Other sizes and ball diameters are available upon request via the configurator or by email, allowing you to tailor the stylus to specific feature sizes and scanning conditions. This makes the ITP Straight Styli Type A a flexible choice for routine measurements across a variety of parts and setups.
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 5 |
| Overall Length (L) | 30 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 20 |
| Neck Diameter (DS) | 3.5 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
