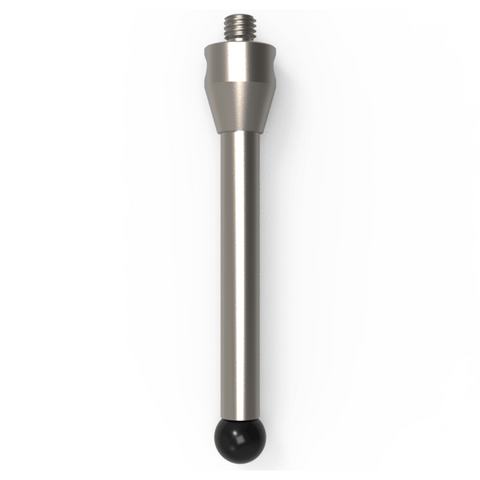

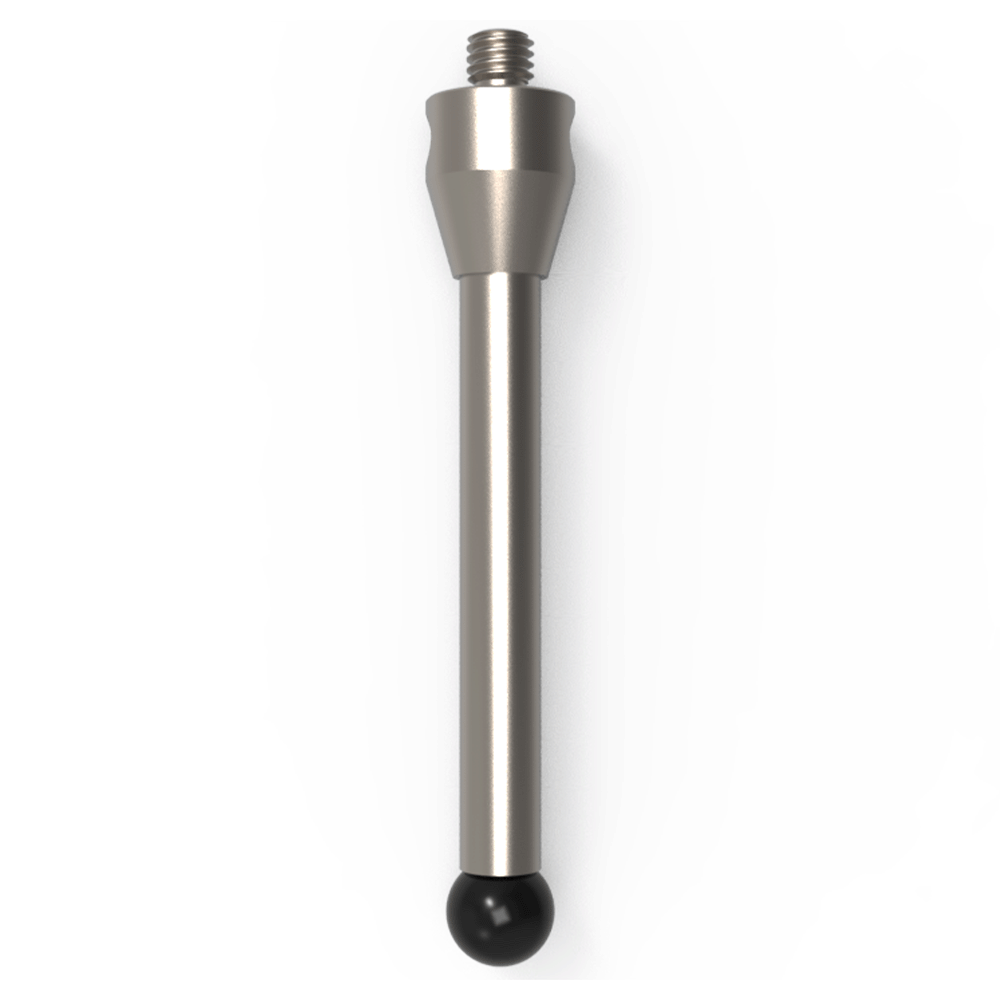

ITP Straight Styli - Type A - Silicon Nitride Ball - M5 Thread x 63.5mm Overall Length - THM5S8011063/K
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 63.5 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 50.5 |
Learn more about Klarna
ITP Straight Stylus Type A with a silicon nitride ball is a dependable probing accessory designed for everyday CMM tasks. Its rigid carbide stem and precise M5 thread deliver stable, repeatable contact, with a 63.5 mm overall length that offers good reach for a wide range of features, including scans on untreated aluminium surfaces.
- Overall Length: 63.5 mm
- Thread: M5 mounting thread for secure, compatible integration
- Stem Material: Extremely rigid carbide for maximum stiffness and dimensional stability
- Ball Material: Silicon nitride ball, ideal for precision probing and wear resistance
- Holder Compatibility: Supports holder sizes of Ø10.0 mm, Ø11.0 mm, and Ø12.0 mm within this group
- Ball Size Range: Available with silicon nitride balls from Ø1.5 mm to Ø10.0 mm within the product group
- Specialized Use: Particularly recommended for scanning untreated aluminium parts
- Customization: Other sizes can be requested via the configurator or by email
This stylus is designed to blend precision with practical versatility. The combination of a carbide stem and silicon nitride ball provides a dependable touch point that resists wear while delivering accurate measurements across a variety of geometries. Its M5 thread ensures compatibility with standard probing systems, and the 63.5 mm length strikes a balance between accessibility and rigidity for consistent data collection. If your workflow requires different touchpoints, sizes in the same family are available through the configurator or by direct inquiry, allowing you to tailor the stylus to specific measurement tasks without sacrificing reliability.

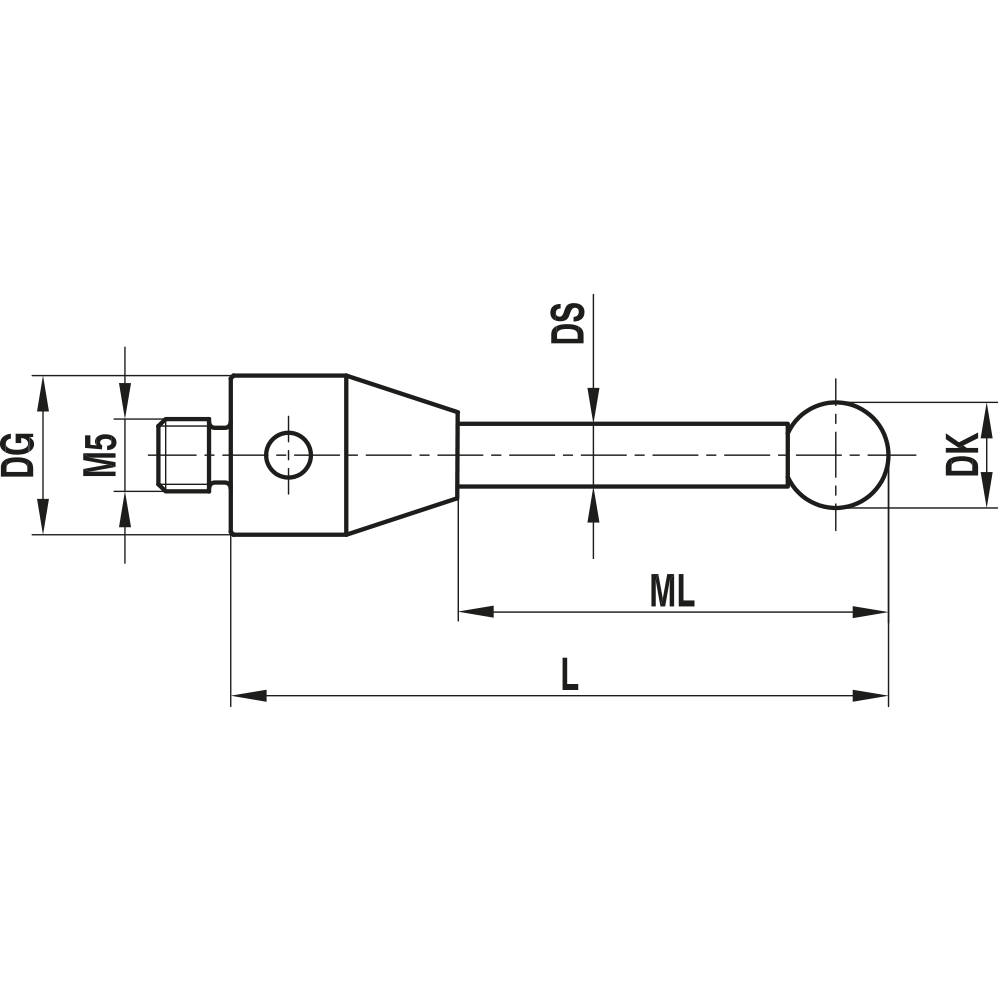

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 63.5 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 50.5 |
| Neck Diameter (DS) | 6 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | silicon nitride |
