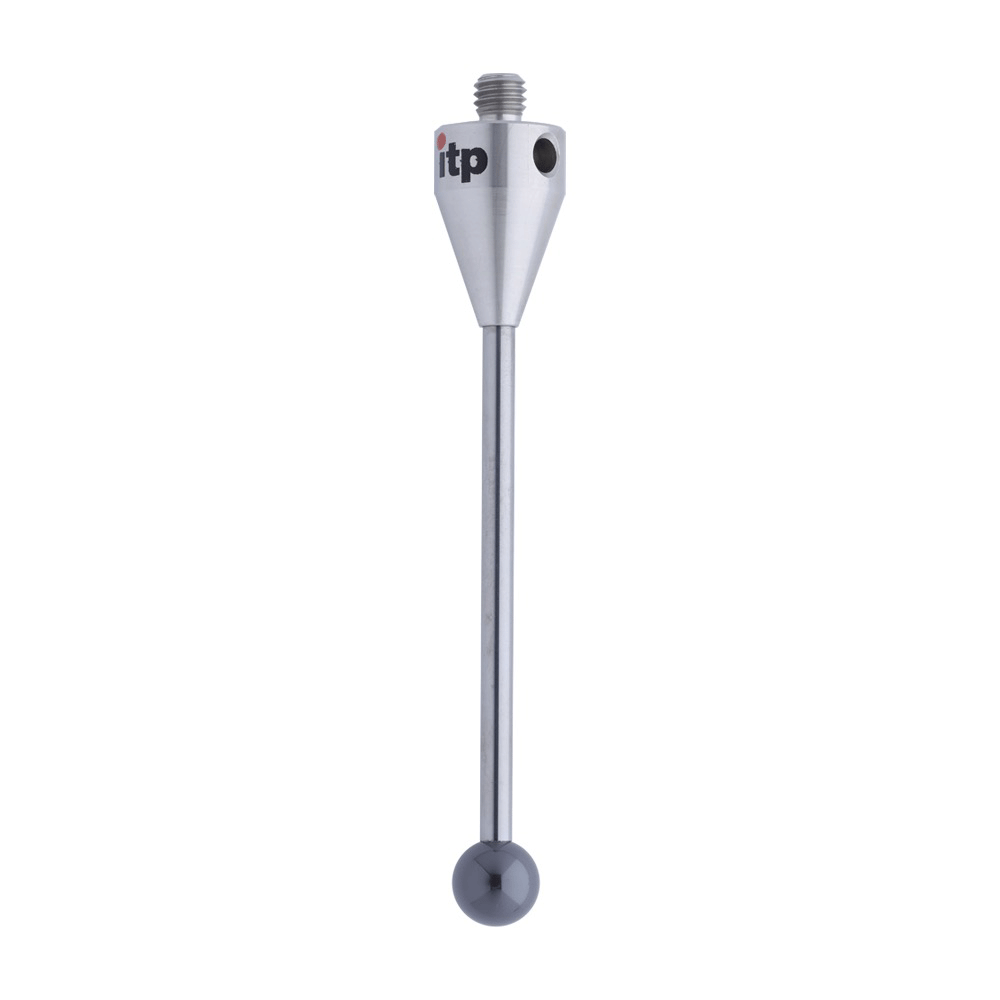

ITP Straight Styli - Type A - Silicon Nitride Ball - M5 Thread x 72mm Overall Length - THM5S8012068

SKU:ITP-THM5S8012068

ITP Straight Stylus Type A with a silicon nitride ball is a precision probing accessory designed for everyday metrology tasks. It combines a highly rigid carbide stem with a hard, wear-resistant ... Read more ↓
Styli TypeType A
Thread SizeM5
Ball Diameter (DK)8
Overall Length (L)72
Shank Diameter (DG)12
Measuring Length (ML)54
View all specifications ↓
£176.28
Prices shown ex. VAT
5 days estimated lead time — subject to availability
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

ITP Straight Stylus Type A with a silicon nitride ball is a precision probing accessory designed for everyday metrology tasks. It combines a highly rigid carbide stem with a hard, wear-resistant ball to deliver stable, repeatable contact when scanning metal parts, including untreated aluminum.

  • Thread: M5 threaded connection for secure mounting on compatible probes
  • Overall Length: 72 mm, providing reliable reach while maintaining rigidity
  • Stem Material: Extremely rigid carbide stem to support a wide range of measurement dimensions
  • Ball Material: Silicon nitride ball chosen for hardness, wear resistance, and smooth interaction with challenging surfaces
  • Ball Size Range: Available with ball sizes from Ø1.5 mm to Ø10.0 mm within this product group; other sizes can be requested via the configurator or by e-mail

This stylus is especially recommended for scanning untreated aluminum parts, where the combination of a durable carbide stem and a silicon nitride ball helps maintain data integrity over time. It’s also suitable for general, daily probing tasks where a dependable, straight stylus is desired. If you need a different ball size, use the configurator or contact us by email to explore available options within the same family.

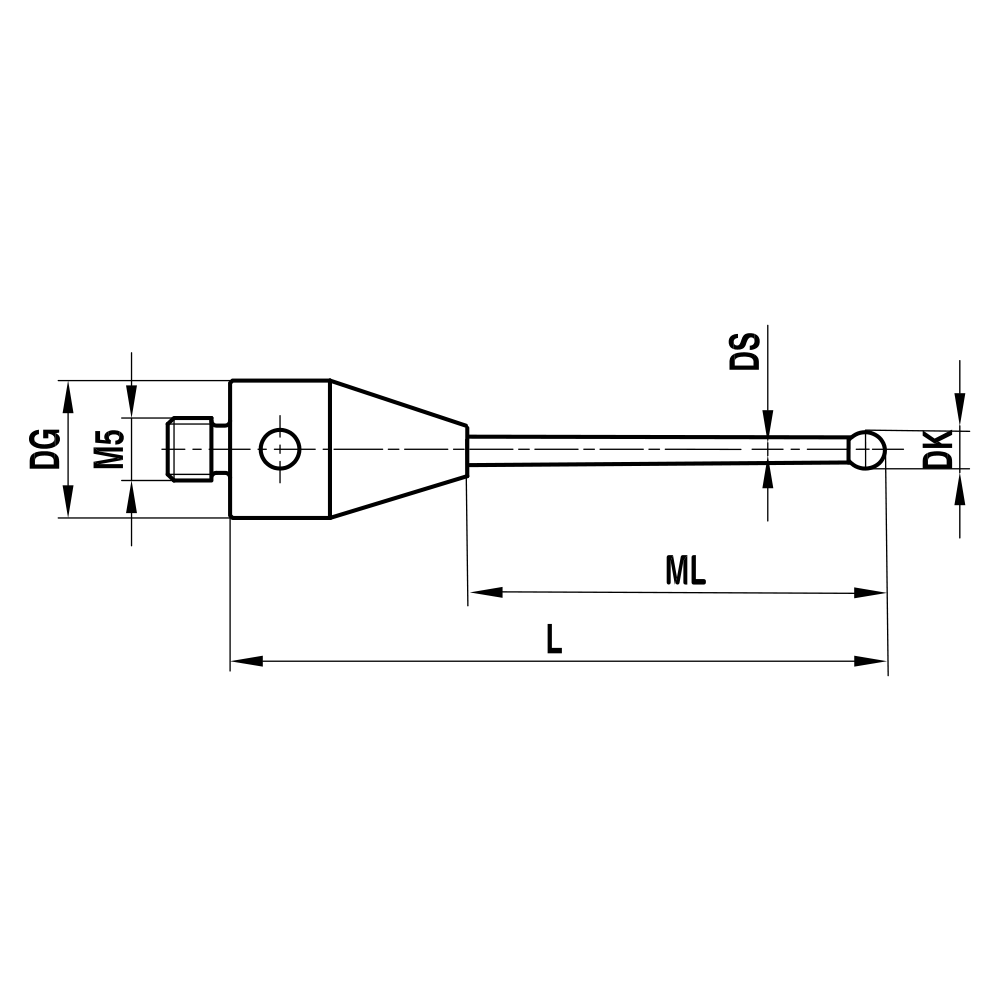

Styli Type Type A
Thread Size M5
Ball Diameter (DK) 8
Overall Length (L) 72
Shank Diameter (DG) 12
Measuring Length (ML) 54
Neck Diameter (DS) 3
Stem Material carbide
Base Material titanium
Prob Ball Material silicon nitride
