ITP Straight Styli - Type A - Zirconium Oxide Ball - M5 Thread x 21mm Overall Length - THM5Z2010021
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 2 |
| Overall Length (L) | 21 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 12 |
Learn more about Klarna

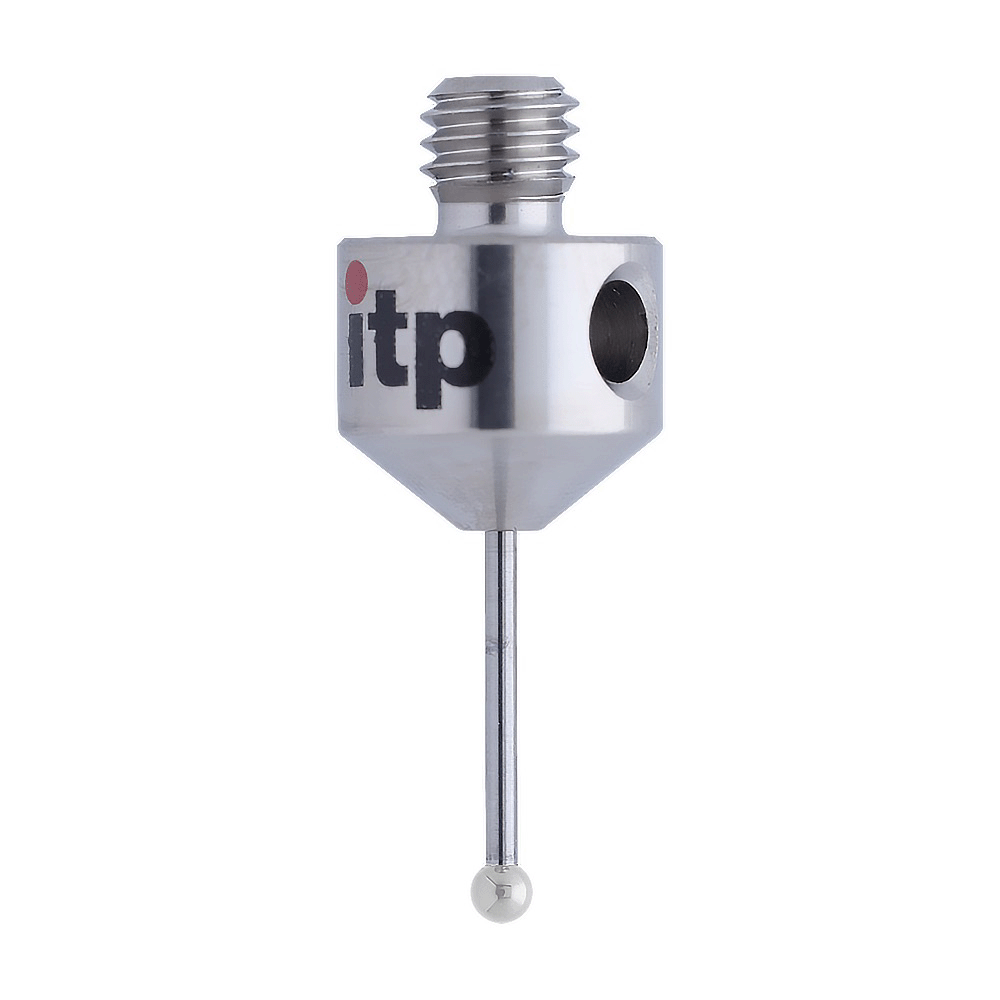

The ITP Straight Styli Type A with a zirconium oxide ball and M5 thread is a compact, robust probing stylus designed for precision scanning. Built for technicians and engineers who work with abrasive surfaces, it offers reliable, repeatable contact in everyday measurements.
- Thread size: M5 thread for secure attachment to compatible probes and holders
- Overall length: 21 mm total length for a compact, accessible reach
- Ball material: Zirconium oxide (zirconia) ball provides wear resistance and smooth contact on abrasive surfaces
- Stem material: Carbide stem delivers exceptional rigidity and dimensional stability across a wide range of dimensions
- Geometry: Type A straight stylus design optimized for standard probing tasks
- Custom dimensions: Other dimensions can be requested via the configurator or by e-mail
This stylus is built to maximize measurement reliability in challenging conditions: the carbide stem resists bending and wear for consistent contact, while the zirconium oxide ball minimizes wear on abrasive cast steel. The 21 mm length and secure M5 thread speed setup between tasks, reducing downtime. If you need a different dimension or configuration, use the configurator or contact us by e-mail to tailor the stylus to your workflow.

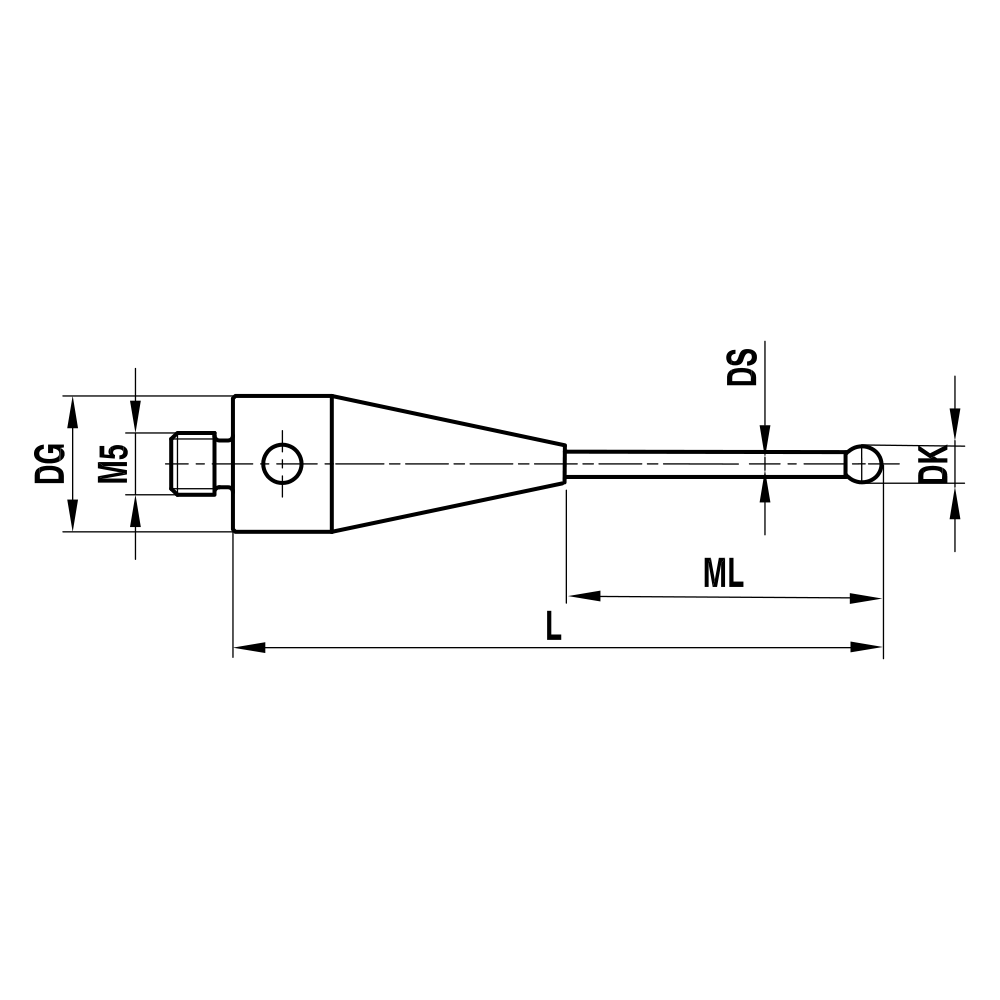

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 2 |
| Overall Length (L) | 21 |
| Shank Diameter (DG) | 10 |
| Measuring Length (ML) | 12 |
| Neck Diameter (DS) | 1 |
| Stem Material | carbide |
| Base Material | titanium |
| Prob Ball Material | zirconium oxide |
