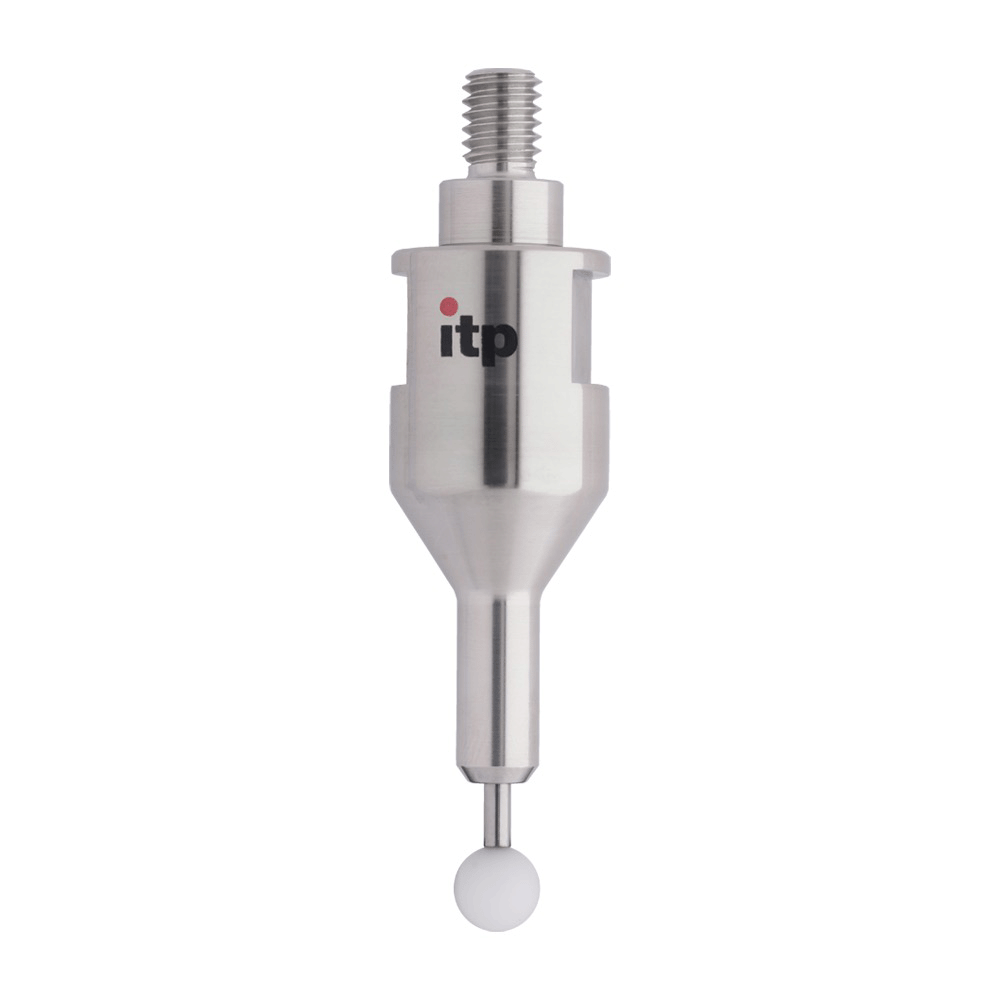

ITP Straight Styli - Type C - Delrin Ball - M6 Thread x 100mm Overall Length - THM6D0816100
| Styli Type | Type C |
| Thread Size | M6 |
| Ball Diameter (DK) | 3.175 |
| Overall Length (L) | 100 |
| Shank Diameter (DG) | 16 |
| Measuring Length (ML) | 62 |
Learn more about Klarna
An precision straight stylus built for metrology professionals using hand-held measuring systems. The Type C Delrin-ball stylus combines rigidity, precision, and a surface-friendly probing tip to support accurate measurements across a wide range of dimensions.
- Thread: M6 external thread for secure, quick mounting on compatible hand-held measurement systems.
- Stem Material: Tungsten carbide stem delivers exceptional rigidity and long-term dimensional stability during probing.
- Probe Ball: Delrin (polyoxymethylene) ball provides a smooth, surface-friendly contact surface to minimize marring on test parts.
- Overall Length: 100 mm overall length to reach into tight spaces while maintaining stable, repeatable contact.
- Model: Type C straight stylus designed for reliable performance with ITP measurement setups; other dimensions available on request via configurator or by email.
This stylus is ideal for precision gauging, fixture-less inspection, and surface measurements where a rigid contact end and gentle probing surface are essential. The tungsten carbide stem minimizes deflection under load, while the Delrin ball preserves part finish, making it a trusted choice for aerospace, automotive, and precision engineering applications. If your measurement tasks require different lengths or diameters, you can arrange alternative configurations through the configurator or by reaching out via email for a tailored solution.

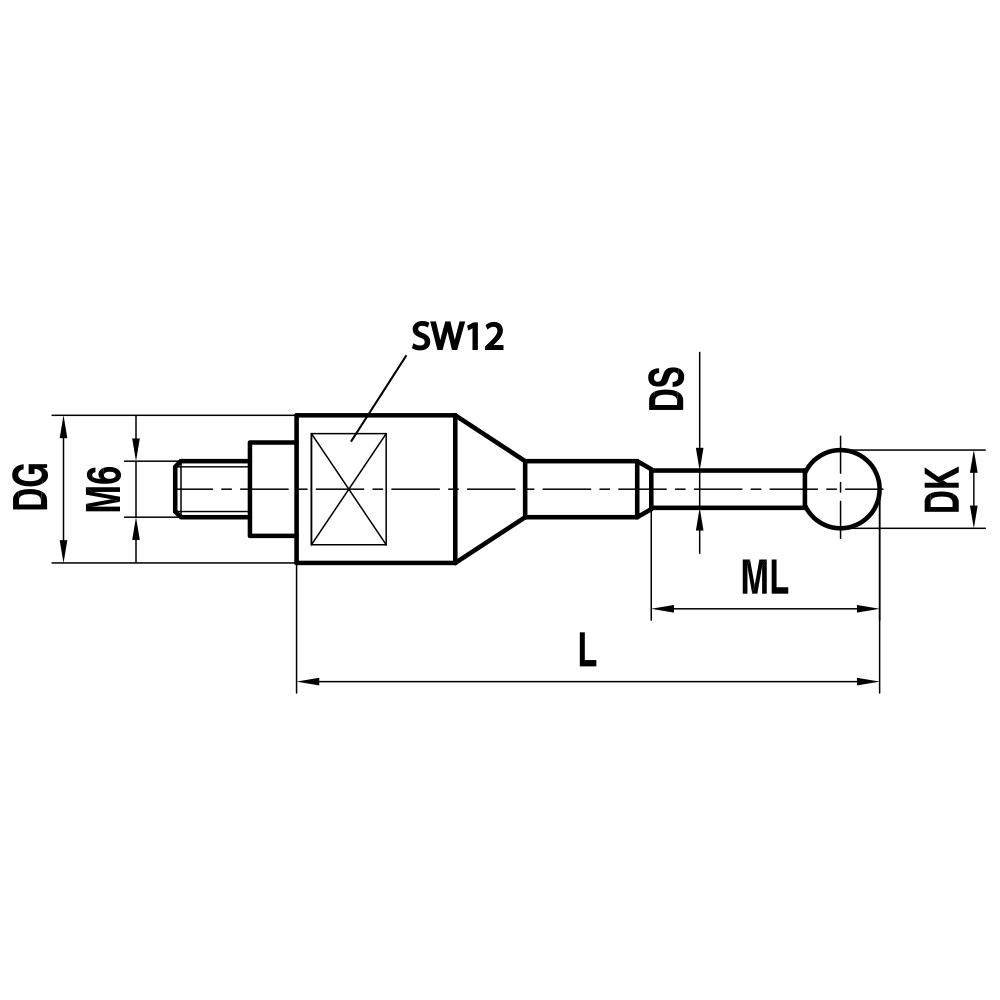

| Styli Type | Type C |
| Thread Size | M6 |
| Ball Diameter (DK) | 3.175 |
| Overall Length (L) | 100 |
| Shank Diameter (DG) | 16 |
| Measuring Length (ML) | 62 |
| Neck Diameter (DS) | 2 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | delrin |
