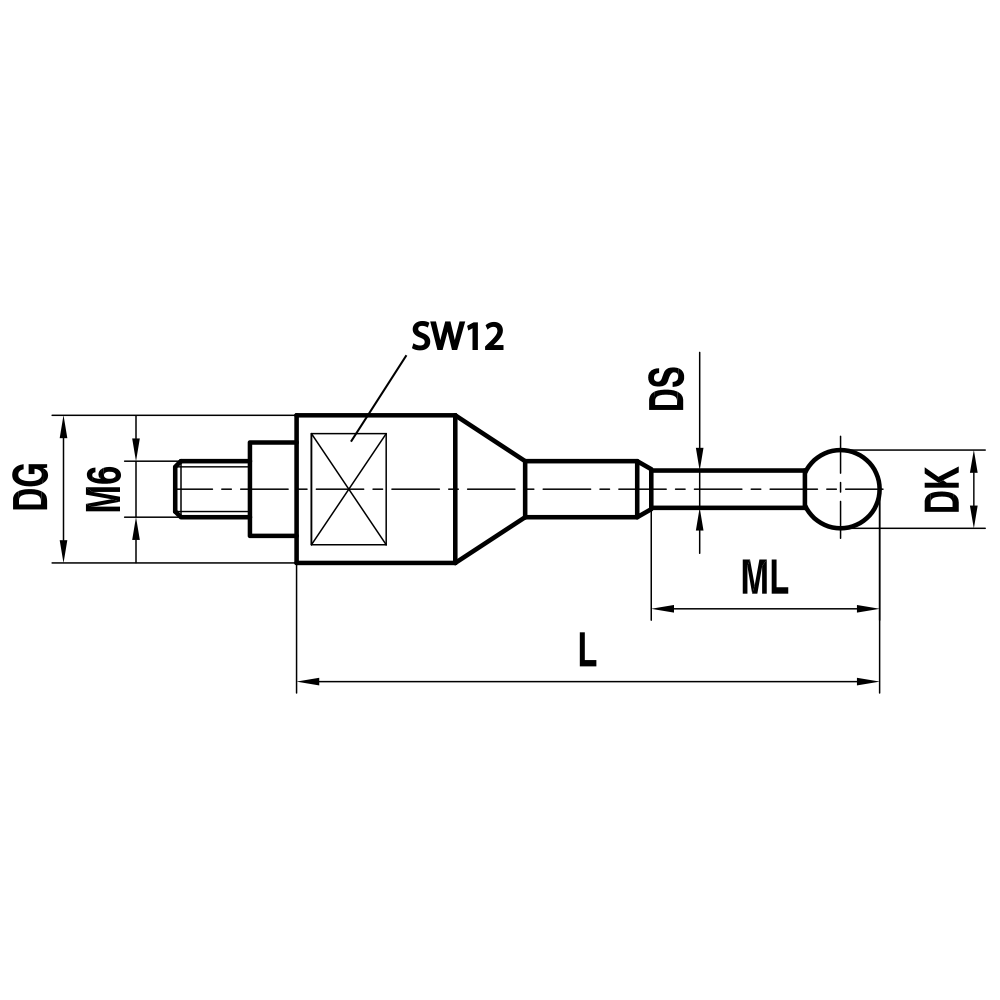

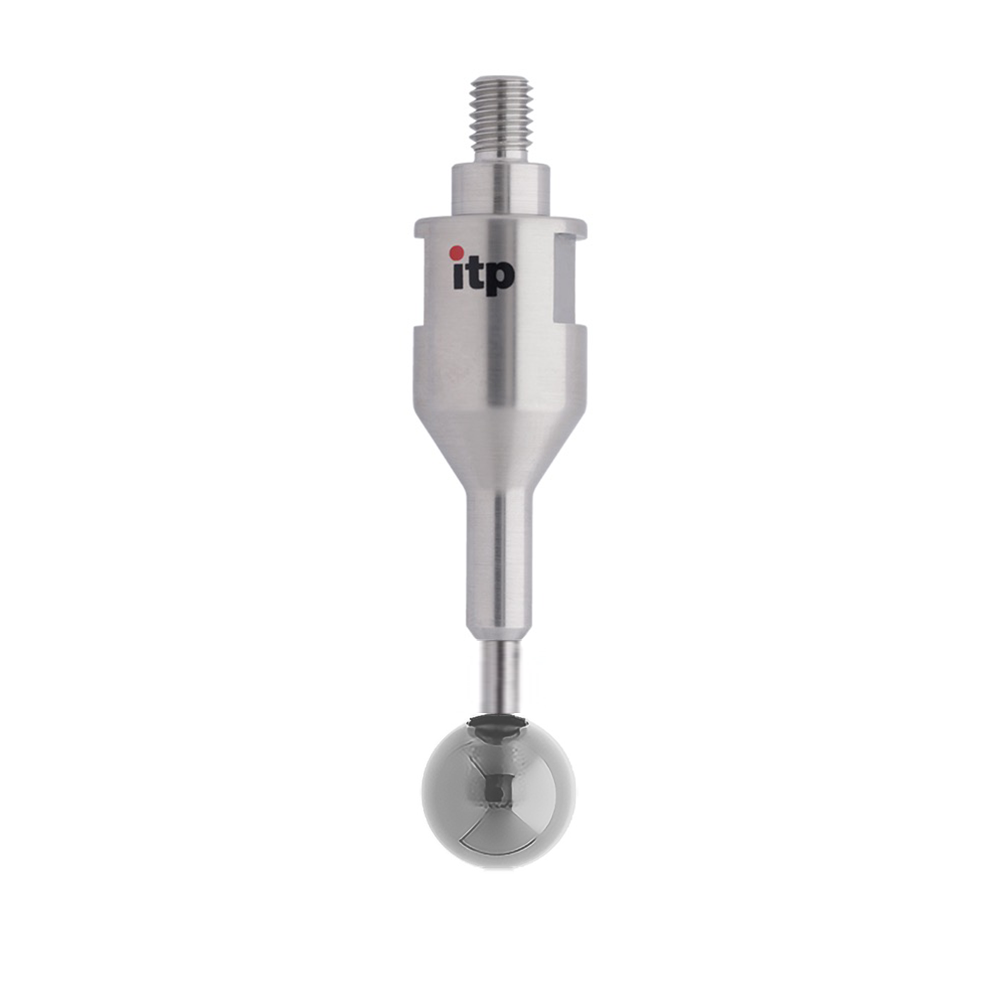

ITP Straight Styli - Type C - Carbide Ball - M6 Thread x 69mm Overall Length - THM6H1016069

ITP Straight Styli Type C with a carbide ball is a precision stylus designed for hand-held measuring systems. Featuring a 69 mm overall length and an M6 thread, it delivers reliable alignment and reach for tight inspection tasks.

• Thread: M6 threaded shank for secure attachment to compatible hand-held measuring systems.
• Stem material: Tungsten carbide stem provides exceptional rigidity and minimizes deflection during probing.
• Probe tip: Carbide ball at the tip offers superior hardness and wear resistance for long-lasting accuracy.
• Length: 69 mm overall length, enabling effective access to recessed features while maintaining a compact profile.
• Design: Type C interface with robust construction suited for repeated use in precision environments.
• Custom dimensions: Other dimensions can be requested via the configurator or by e-mail to fit specific measurement needs.

This stylus helps you achieve repeatable, accurate measurements in handheld or on-site inspections. The rigid carbide stem minimizes deflection when contacting features, while the durable carbide ball resists wear from repeated probing against hard materials, ensuring consistent contact and high data quality. The secure M6 connection simplifies tool changes and reduces the risk of slippage during measurements. For tasks requiring different reach or shank geometry, additional dimensions are available through the configurator or by email, making this a flexible solution for tight-tolerance work and calibration checks.
