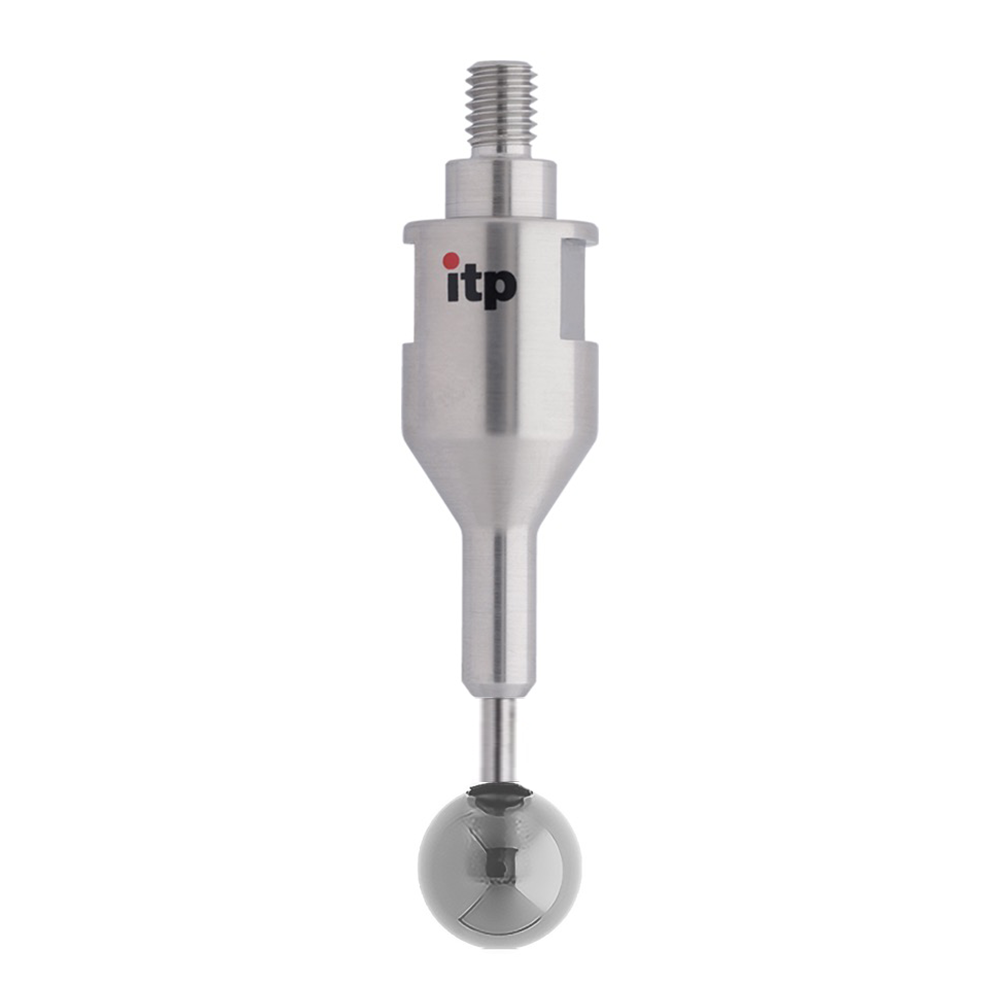

ITP Straight Styli - Type C - Carbide Ball - M6 Thread x 59mm Overall Length - THM6H16016059

The ITP Straight Styli – Type C, with a carbide ball, M6 thread, and 59 mm overall length, is a precision stylus designed for hand-held measuring systems. It combines a highly rigid tungsten carbide stem with a durable carbide ball tip to deliver repeatable measurements in demanding shop-floor environments.

• Thread: M6 external thread for secure attachment to handheld measurement probes.
• Stem material: Tungsten carbide stem provides exceptional rigidity and dimensional stability across a wide range of measurements.
• Tip: Carbide ball tip offers high hardness and resistance to wear and impact, ensuring long-term durability.
• Custom dimensions: Other lengths and configurations are available via the configurator or by email to fit your specific measurement tasks.

Designed to minimize deflection under contact pressure, this stylus maintains precise geometry during measurements. The carbide ball provides a reliable contact surface that resists deformation and wear, reducing the need for frequent replacements on busy production lines. Its compact 59 mm length offers good reach for tight features while remaining compatible with standard handheld measuring systems. When your application requires different dimensions, you can request exact sizes through the configurator or by email, ensuring you get a tool tailored to your process. Ideal for in-process inspection, gauging small features, and routine quality control checks where consistency matters.
