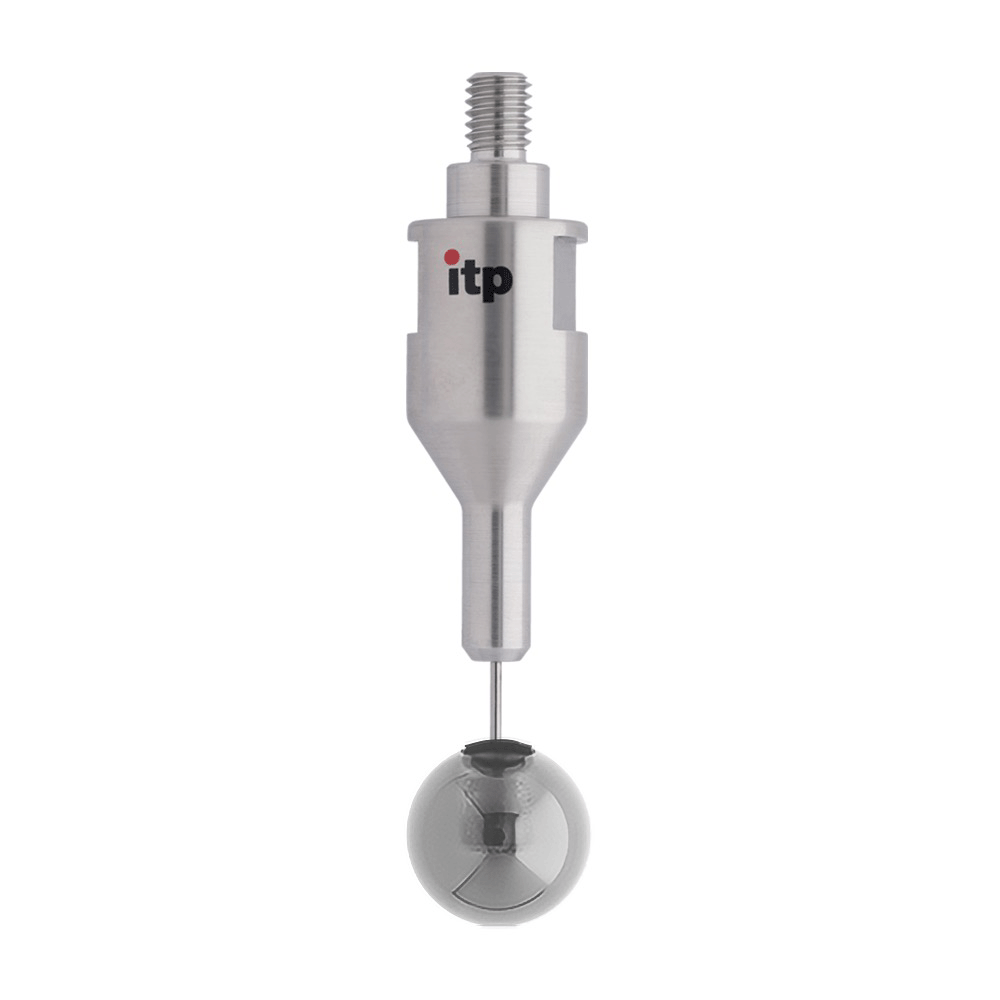

ITP Straight Styli - Type C - Carbide Ball - M6 Thread x 59mm Overall Length - THM6H20016059
| Styli Type | Type C |
| Thread Size | M6 |
| Ball Diameter (DK) | 20 |
| Overall Length (L) | 59 |
| Shank Diameter (DG) | 16 |
| Measuring Length (ML) | 21 |
Learn more about Klarna
The ITP Straight Stylus Type C with a carbide ball is a precision probing accessory for handheld measuring systems, designed for consistent contact and long‑term reliability. It’s ideal for technicians and engineers who need accurate measurements across a range of small features and surfaces.
- Thread: M6 external thread for secure attachment to compatible handheld measuring probes.
- Tip: Tungsten carbide ball tip provides smooth contact and minimizes wear on parts.
- Stem material: Tungsten carbide stem delivers exceptional rigidity and dimensional stability.
- Overall length: 59 mm overall length for balanced handling and reach.
- Design: Straight stylus (Type C) designed for straightforward probing geometry.
- Durability: Pressure and impact resistant construction for demanding workshop environments.
- Customization: Other dimensions can be requested via the configurator or by e-mail.
With its rigid carbide construction and robust ball tip, this stylus reduces deflection during contact, helping you capture sharp, repeatable measurements on hard-to-reach surfaces. The 59 mm length provides a comfortable balance between stability and reach when probing components, fixtures, and gauges. The M6 thread ensures quick, secure integration with a wide range of handheld measuring systems, while the option to request alternate dimensions makes it adaptable to specialized measurement tasks. This accessory supports longer tip life and more consistent data in quality control workflows.

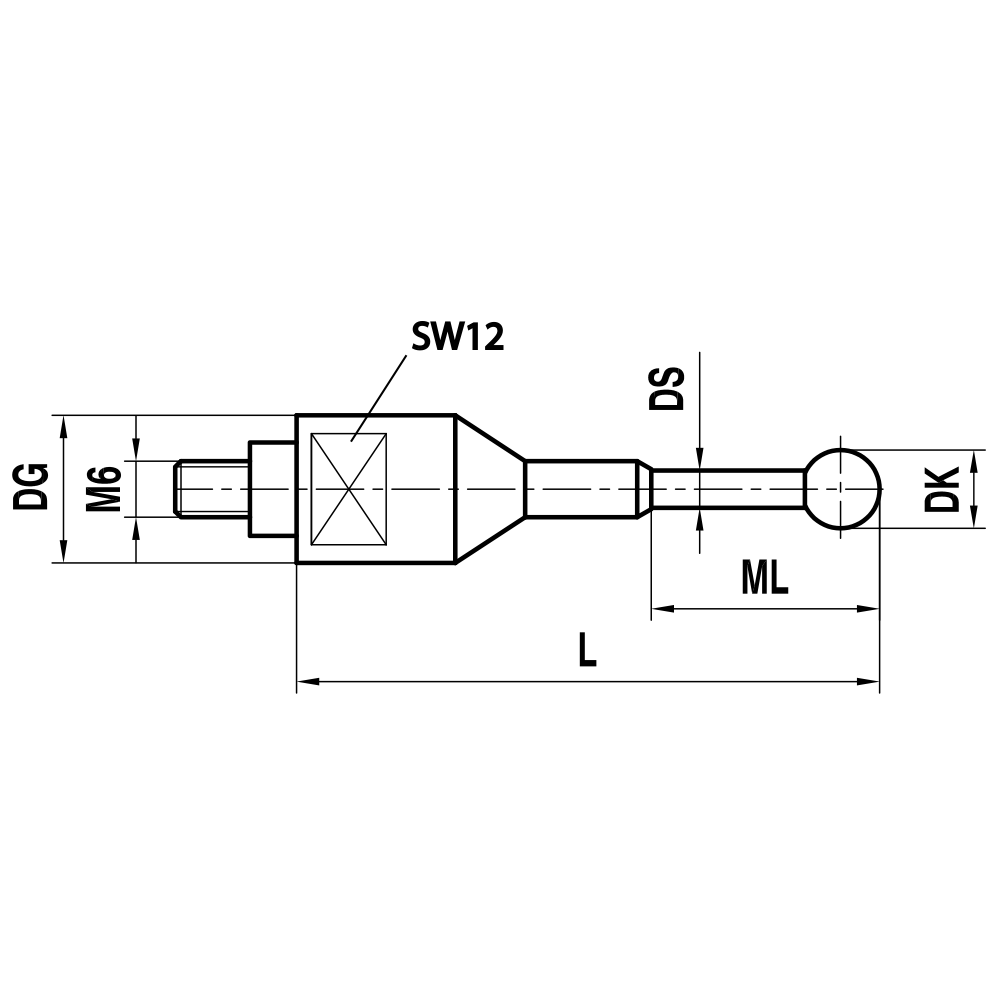

| Styli Type | Type C |
| Thread Size | M6 |
| Ball Diameter (DK) | 20 |
| Overall Length (L) | 59 |
| Shank Diameter (DG) | 16 |
| Measuring Length (ML) | 21 |
| Neck Diameter (DS) | 3.5 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | carbide |
