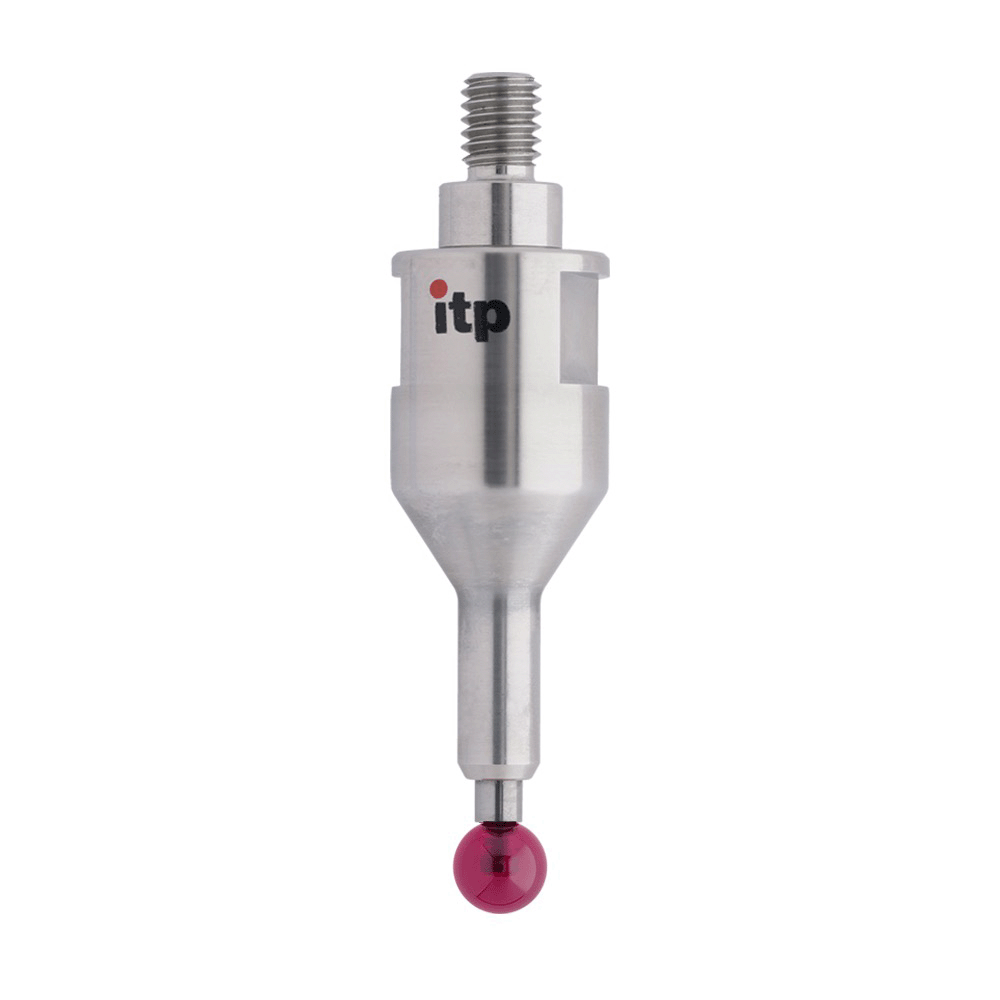

ITP Straight Styli - Type C - Ruby Ball - M6 Thread x 49mm Overall Length - THM6R6016049

ITP Straight Styli Type C with Ruby Ball is a precision probing tip designed for hand-held measuring systems. It combines a rigid tungsten carbide stem with a ruby ball to deliver accurate, repeatable contact measurements across a wide range of tasks.

• Thread: M6 external thread compatible with standard hand-held measuring system components.
• Overall length: 49 mm (THM6R6016049) for predictable reach and balance during probing.
• Stem material: Tungsten carbide center provides exceptional rigidity and long-term dimensional stability.
• Ruby ball sizes: High-quality ruby contact balls available from Ø3.0 mm up to Ø12.0 mm to suit feature size and measurement geometry.
• Custom sizes: Other sizes available on request via the configurator or by e-mail to tailor to your application.

This stylus is ideal for engineers and metrology technicians performing precise measurements on handheld measurement systems, CMM accessories, or portable probing setups. The combination of a stiff carbide stem and a diamond-hard ruby tip minimizes deflection and wear, helping you achieve consistent results across multiple measurements. Use the standard 49 mm length for general-purpose probing, or choose a smaller/larger ruby ball for fine-detail features and larger surface areas as your workflow requires. When your needs call for a different tip size, ordering through the configurator or contacting us by e-mail ensures you get the exact ruby ball diameter that matches your measurement tasks, contributing to shorter setup times and higher throughput.
