ITP Straight Styli - Type C - Zirconium Oxide Ball - M6 Thread x 49mm Overall Length - THM6Z0816049

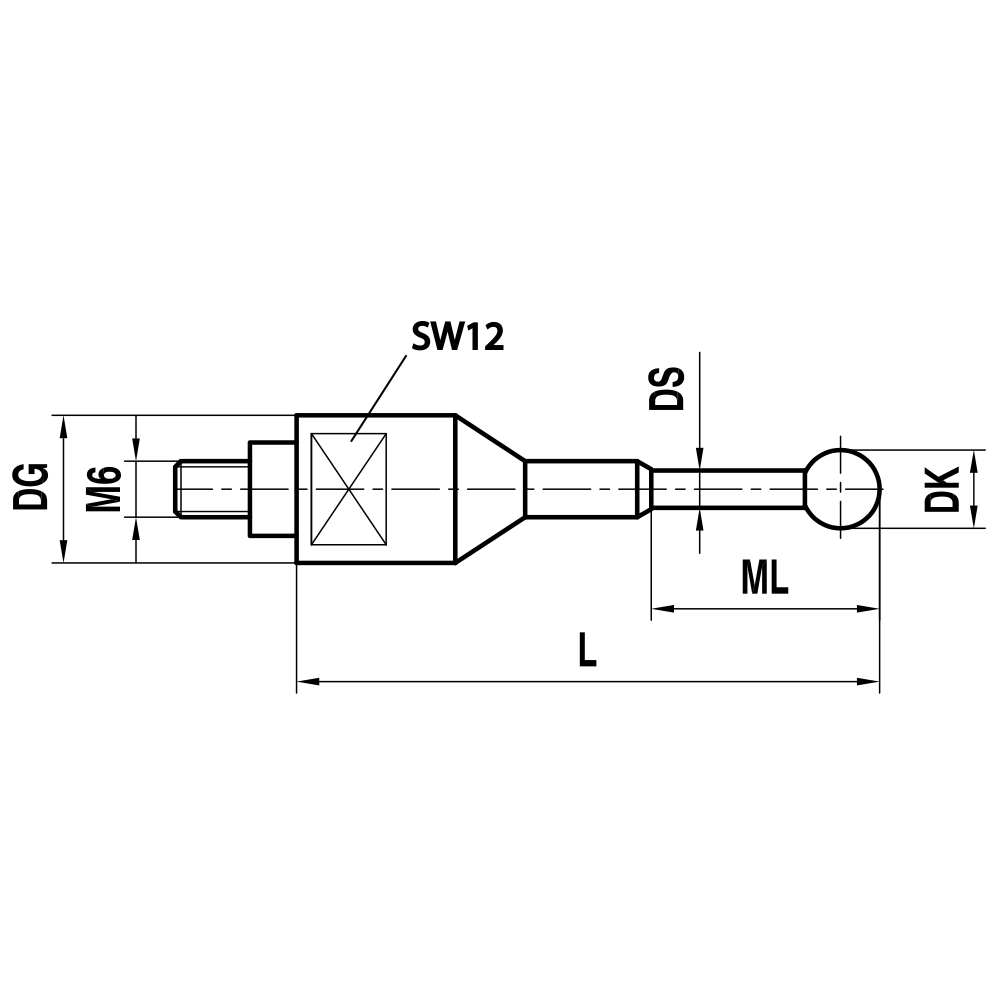

| Styli Type | Type C |
| Thread Size | M6 |
| Ball Diameter (DK) | 3.175 |
| Overall Length (L) | 49 |
Learn more about Klarna
Description

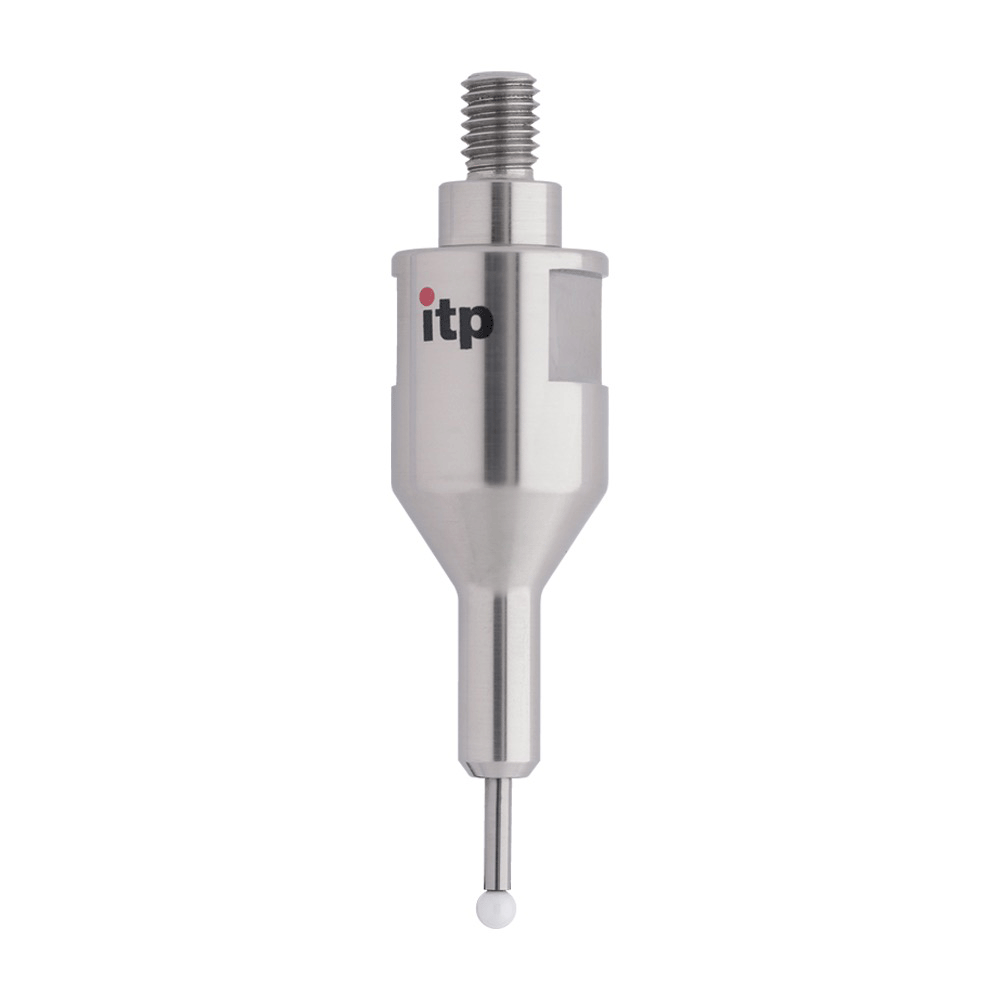

The ITP Straight Styli - Type C with a zirconium oxide ball is a precision probe designed for hand-held measuring systems. Its compact, robust design delivers consistent contact and long‑lasting performance in tight spaces.
- Thread: M6 thread to fit compatible handheld measurement fixtures
- Tip material: Zirconium oxide ball for exceptional hardness and wear resistance
- Stem material: Tungsten carbide for high rigidity and dimensional stability
- Overall length: 49 mm, offering a balance of reach and maneuverability
- Design: Straight stylus geometry optimized for stable measurements across a wide range of dimensions
- Customization: Other sizes available on request via configurator or by email
The zirconium oxide ball maintains precise geometry over repeated use, reducing measurement drift in daily inspection tasks. The rigid tungsten carbide stem minimizes deflection during contact, improving repeatability in hand-held metrology workflows. At 49 mm, this stylus reaches into recessed features or challenging spots without sacrificing control. The M6 mounting thread ensures quick, secure tool changes, keeping your measurement routine efficient. If your application needs a different tip size or length, customized options can be arranged through the configurator or a quick email, helping you tailor the tool to your exact measurement envelope.
Part Numbers
- Protool Part Number
- ITP-THM6Z0816049
- Brand
- ITP
- Category
- Styli
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
