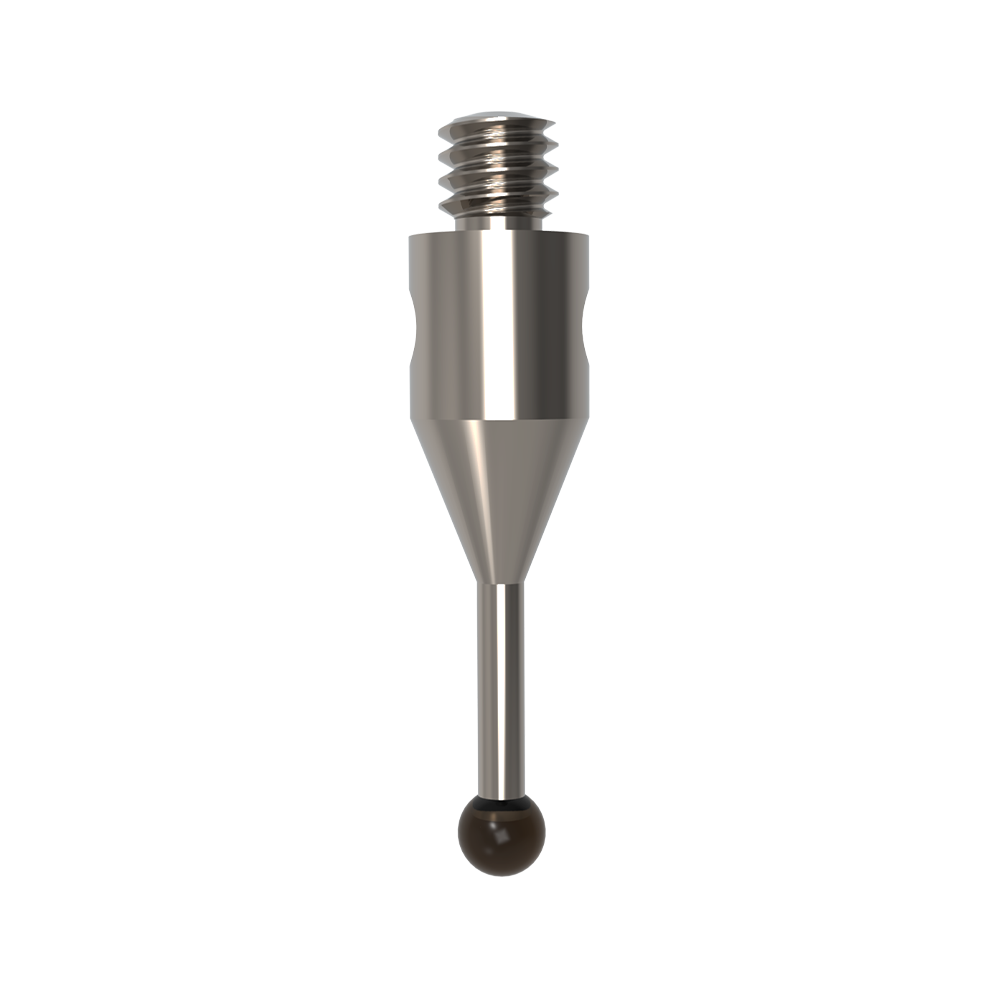

ITP Straight Styli - Type A - Silicon Nitride Ball - M2 Thread x 10.75mm Overall Length - TIM2S1503011

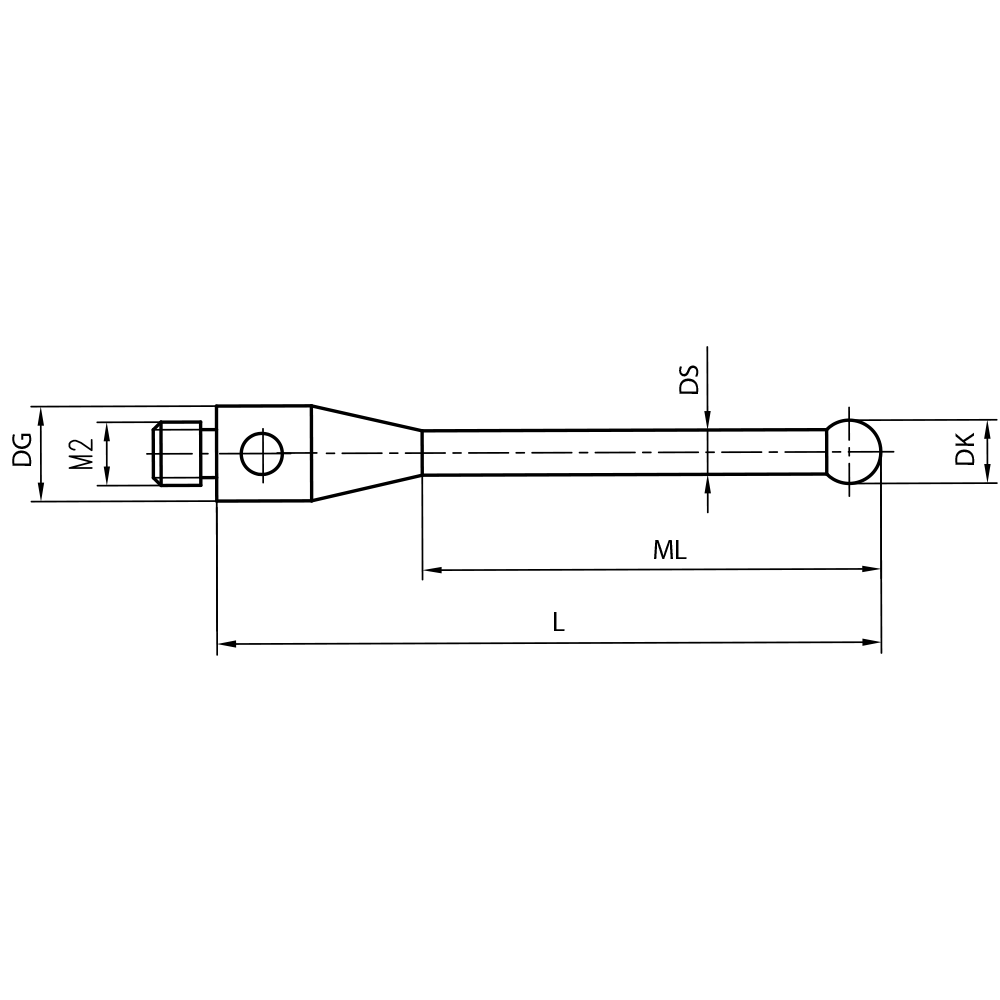

| Styli Type | Type A |
| Thread Size | M2 |
| Ball Diameter (DK) | 1.5 |
| Overall Length (L) | 10.75 |
Learn more about Klarna
Description
The ITP Straight Stylus - Type A with a silicon nitride ball is an affordable, everyday-grade stylus designed for reliable routine measurements. It delivers solid performance for standard scanning tasks, with a silicone nitride ball that shines when inspecting untreated aluminium parts.
- Ball material: Silicon nitride ball for durability and smooth contact during measurements.
- Thread: M2 external thread for easy mounting on compatible probe bodies.
- Overall length: 10.75 mm from tip to mounting shoulder for a compact probing reach.
- Stem material: Stainless steel providing high rigidity and long-term reliability.
- Ball size availability: Balls from Ø1.0 mm to Ø8.0 mm are available in this configuration; other sizes can be requested via the configurator or by email.
- Design: Straight stylus geometry optimized for straightforward access to features and pockets.
- Price tier: Positioned in the lower price segment for cost-conscious everyday use.
This combination—robust stainless steel stem and wear-resistant silicon nitride ball—addresses common daily measurement needs with stability and longevity. The silicon nitride ball is particularly well-suited for scanning untreated aluminium, helping to minimize surface interaction issues and extend stylus life. With a compact 10.75 mm length and configurable ball diameters, it adapts to a range of feature sizes while keeping setup simple. Ideal for laboratories, workshops, and technicians who perform routine measurements, this Type A stylus offers dependable value without sacrificing performance. If you need a different ball diameter, sizes from Ø1.0 mm to Ø8.0 mm are supported, with additional options available through the configurator or by email.
Part Numbers
- Protool Part Number
- ITP-TIM2S1503011
- Brand
- ITP
- Category
- Styli
